Tail Lamp Replacement

WARNING: This page is about a different car, the 2007 Buick LaCrosse and 2007 Buick Allure. However, it is still accessible from the selected car via links, so may be relevant.

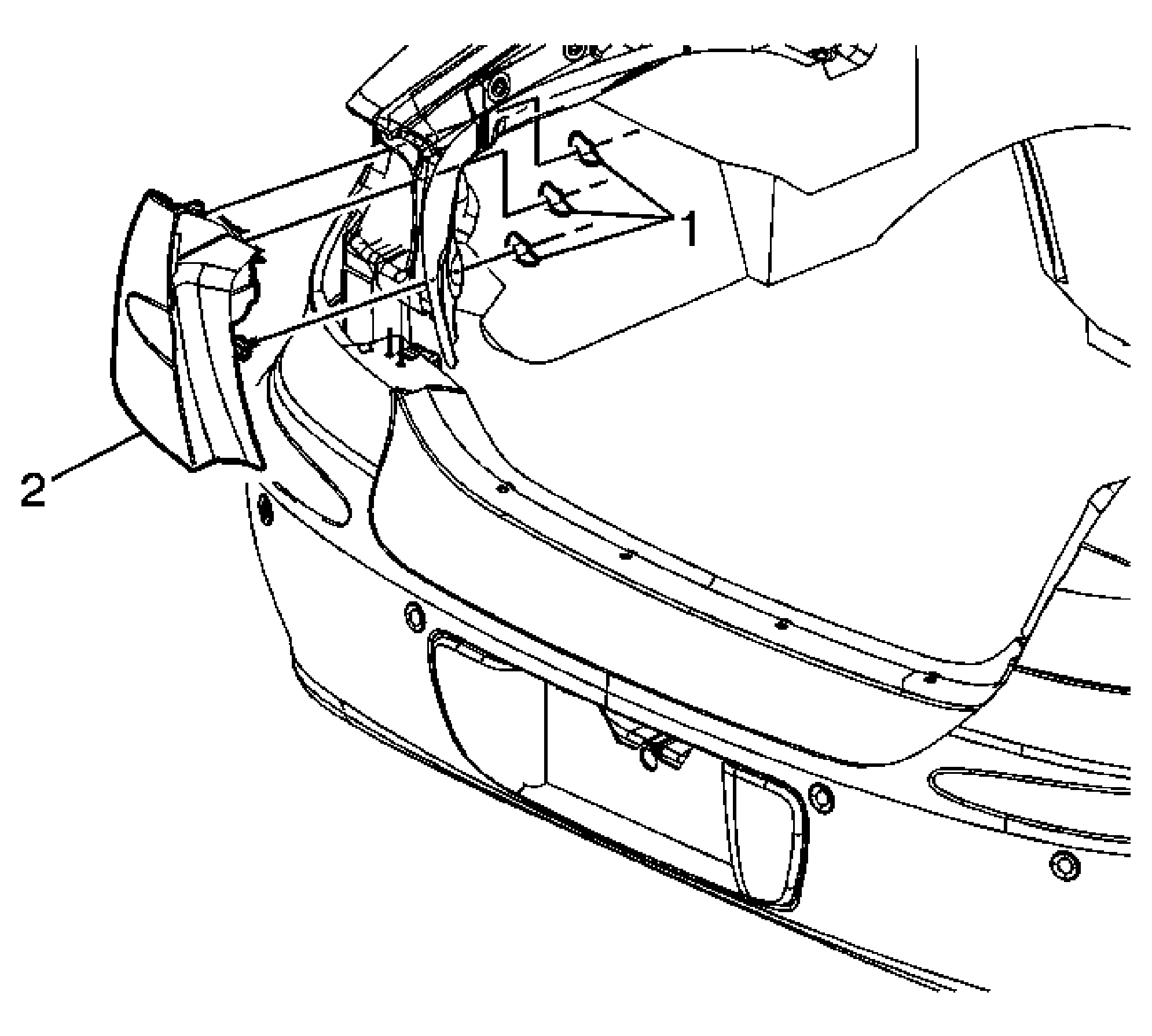

Fig 1: Tail Lamp
GM1792959Courtesy of GENERAL MOTORS CORP.
Tail Lamp Replacement

Callout Component Name
Preliminary Procedures
  1. Open the rear compartment lid.
  2. Remove either the LH or RH three tie down nuts from the lamp assembly.
  3. Pull the lamp assembly from the body rear end panel.
  4. Disconnect the electrical connections.
1 Tie Down Nuts (Qty: 4)
Tip:  Reposition the carpet trunk liner prior to securing the tie down nuts.
2 Rear Tail Lamp Assembly
Tip:  Ensure the foam gaskets are not damaged and are in place on the lamp studs prior to installing the lamp to the body rear end panel.
