Headlamp Bulb Replacement
WARNING: This page is about a different car, the 2007 Buick LaCrosse and 2007 Buick Allure. However, it is still accessible from the selected car via links, so may be relevant.
Headlamp Bulb Replacement

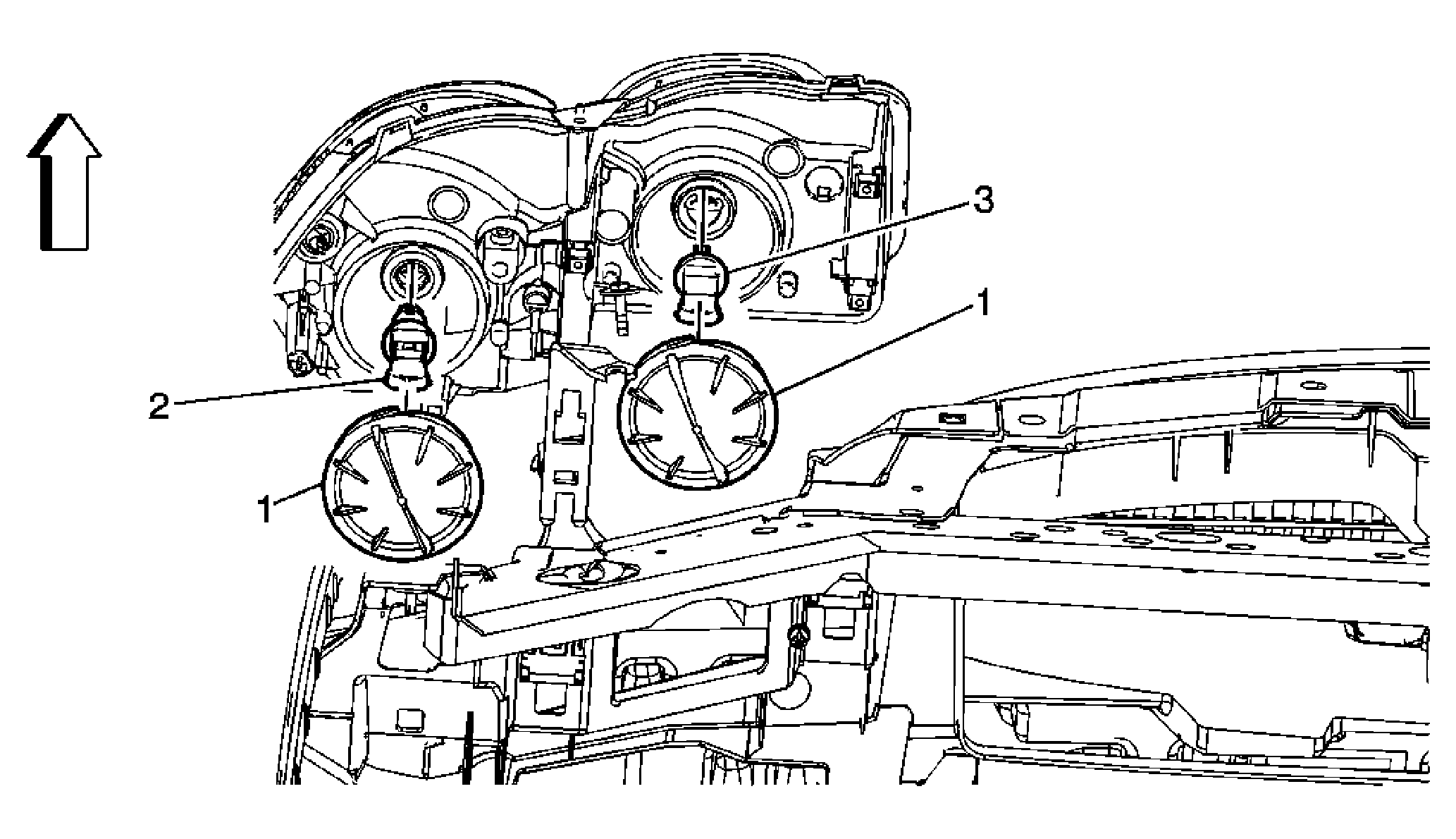

| Callout | Component Name |
|---|---|
| 1 | Preliminary Procedure: Remove either the LF or RF headlamp assembly. Refer to Headlamp Assembly or Headlamp Bulb Replacement . Headlamp Bulb Accessory Cover Tip: Turn the bulb covers a quarter turn counter-clockwise in order to access the headlamp bulb sockets. |
| 2 |
CAUTION:
Refer to Halogen Bulb Caution
. Headlamp Bulb (Lo Beam)Tip:
Disconnect the electrical connector from the bulb socket. |
| 3 | Headlamp Bulb (Hi Beam) Tip: Aim the headlamps after the bulb replacement has been completed. Refer to Headlamp Aiming . |
