SIR Schematics

WARNING: This page is about a different car, the 2007 Chevrolet Monte Carlo and 2007 Chevrolet Impala. However, it is still accessible from the selected car via links, so may be relevant.

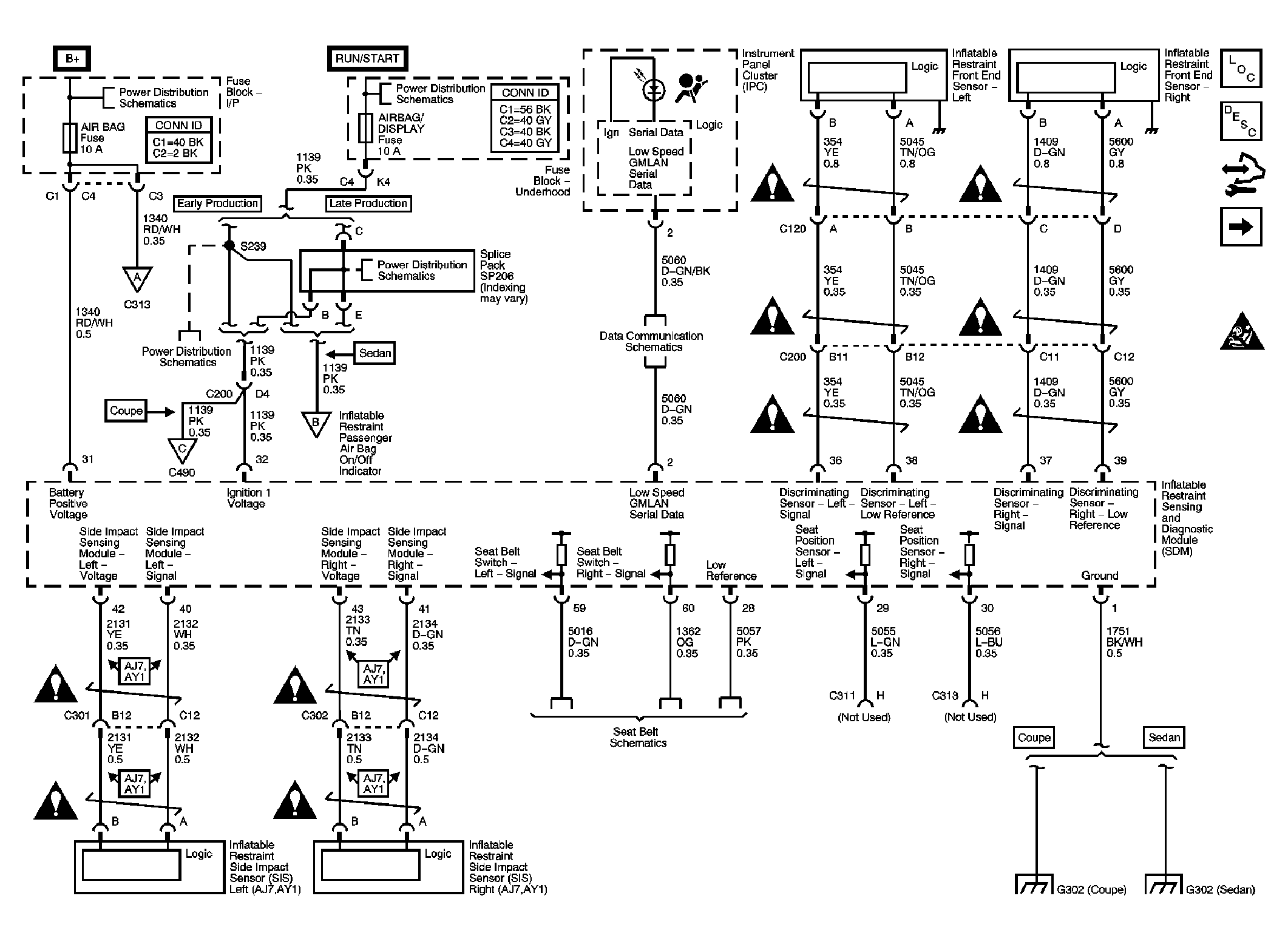

Fig 1: Power, Ground, DLC, Indicators, Sensors, and References
GM1761446Courtesy of GENERAL MOTORS CORP.

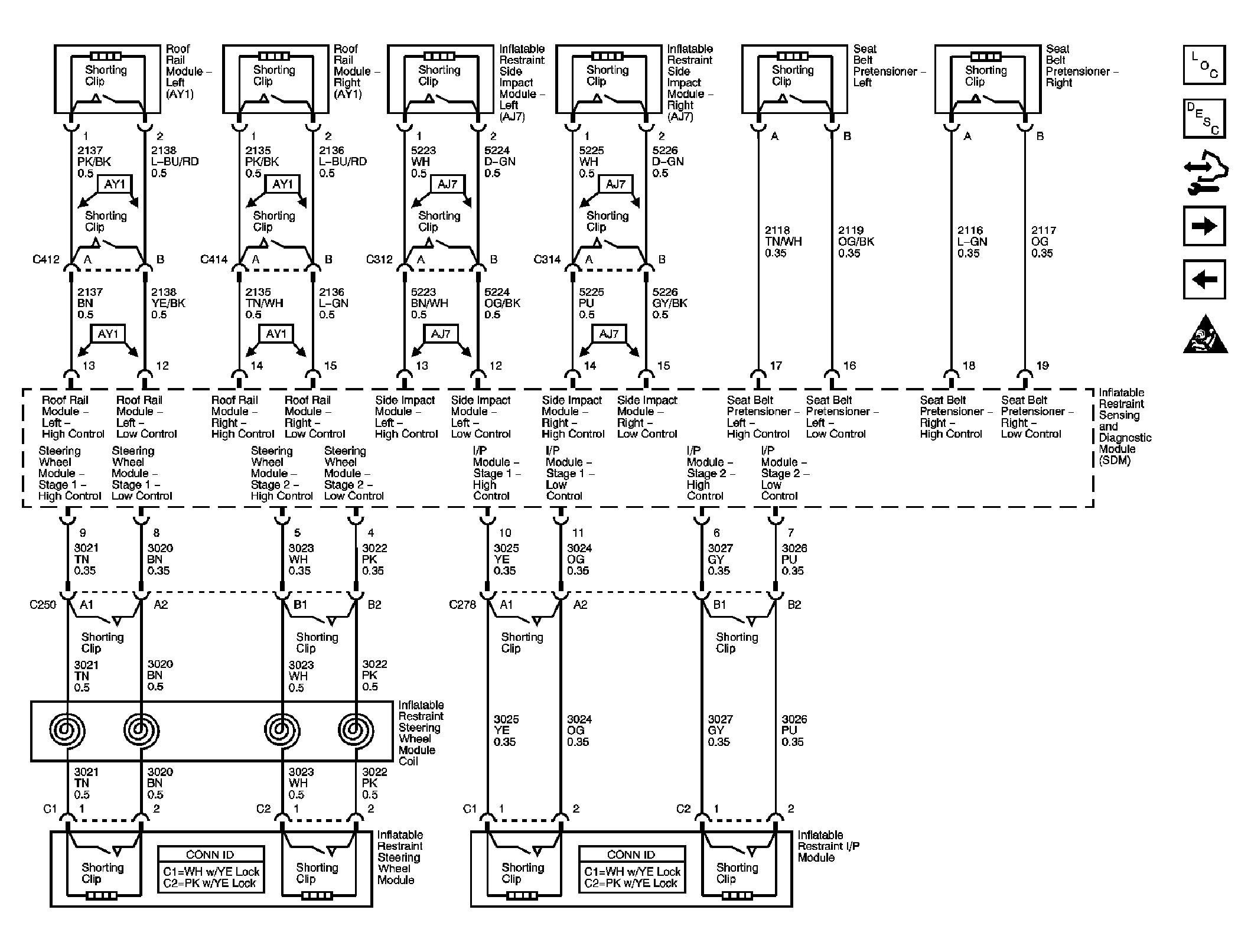

Fig 2: Deployment Loops
GM1761447Courtesy of GENERAL MOTORS CORP.

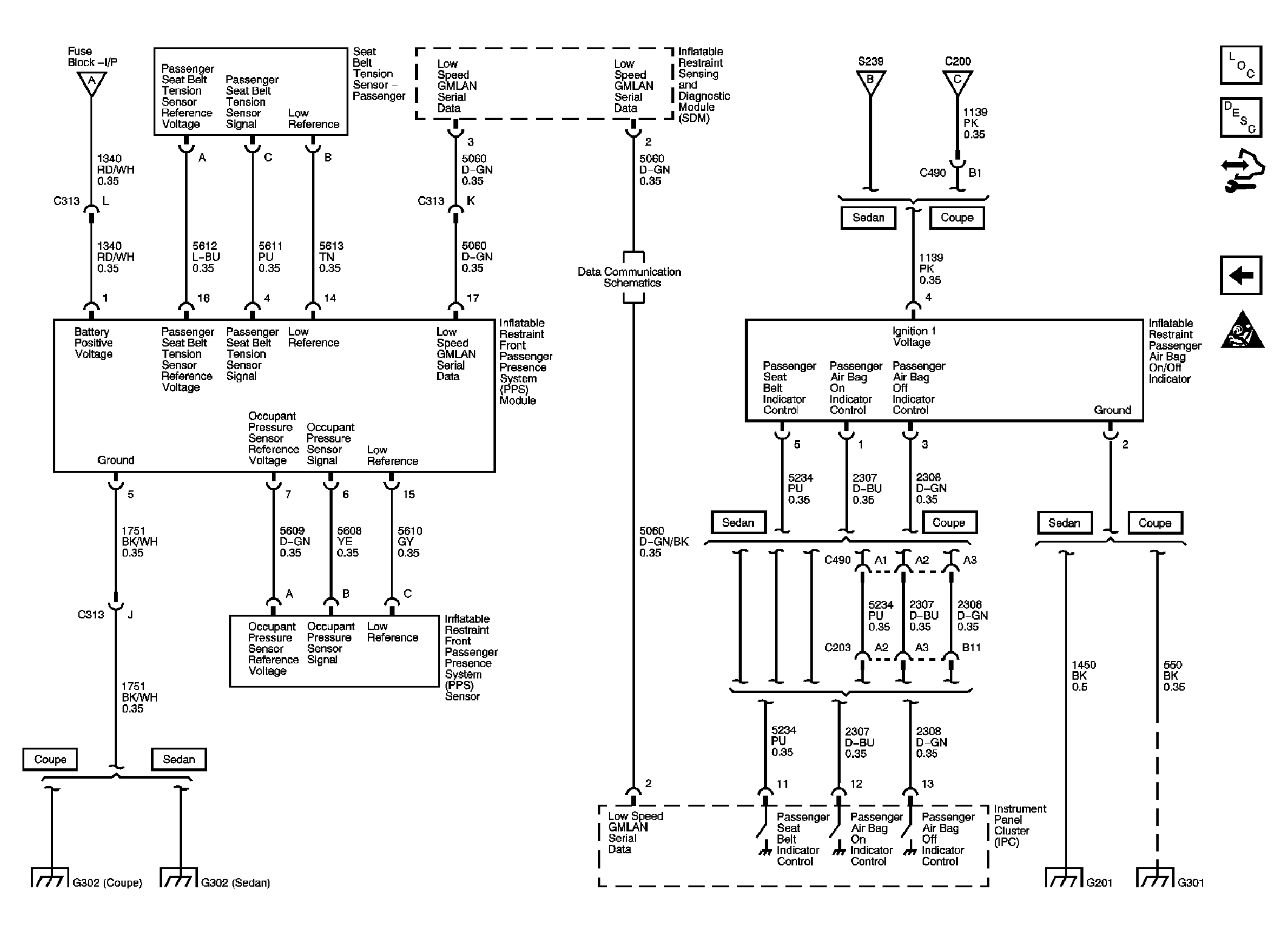

Fig 3: Passenger Presence System
GM1761448Courtesy of GENERAL MOTORS CORP.
