Disassembled Views

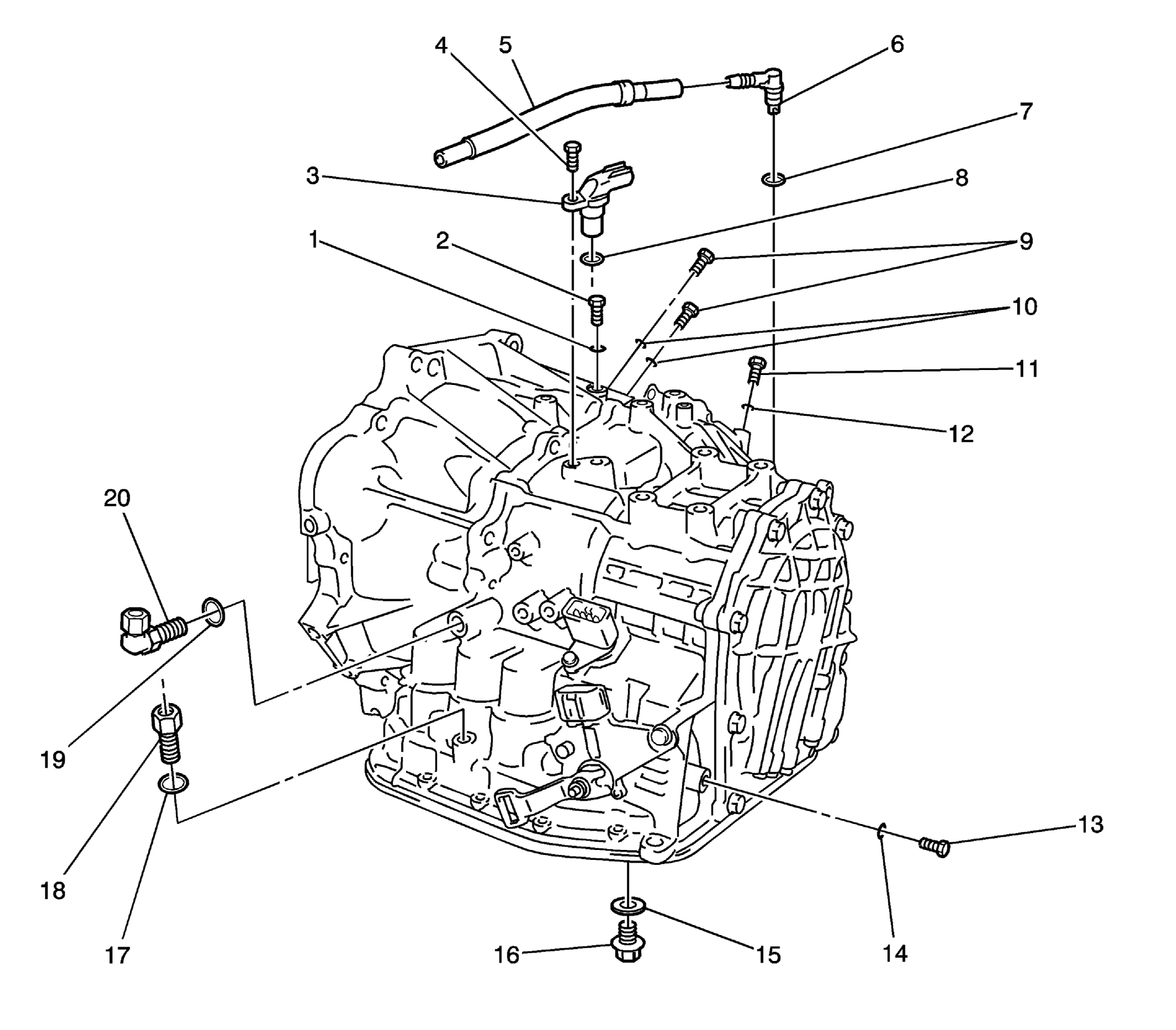

Fig 1: External Components Disassembled View
GM1003011Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 O-ring
2 Screw Plug
3 Input Turbine Speed Sensor
4 Bolt
5 Breather Hose
6 Breather Plug
7 O-ring
8 O-ring
9 Screw plugs
10 O-ring
11 Screw Plug
12 O-ring
13 Screw Plug
14 O-ring
15 Gasket
16 Drain Plug
17 O-ring
18 Oil Pipe Outlet Union
19 Oil Pipe Inlet Union
20 O-ring

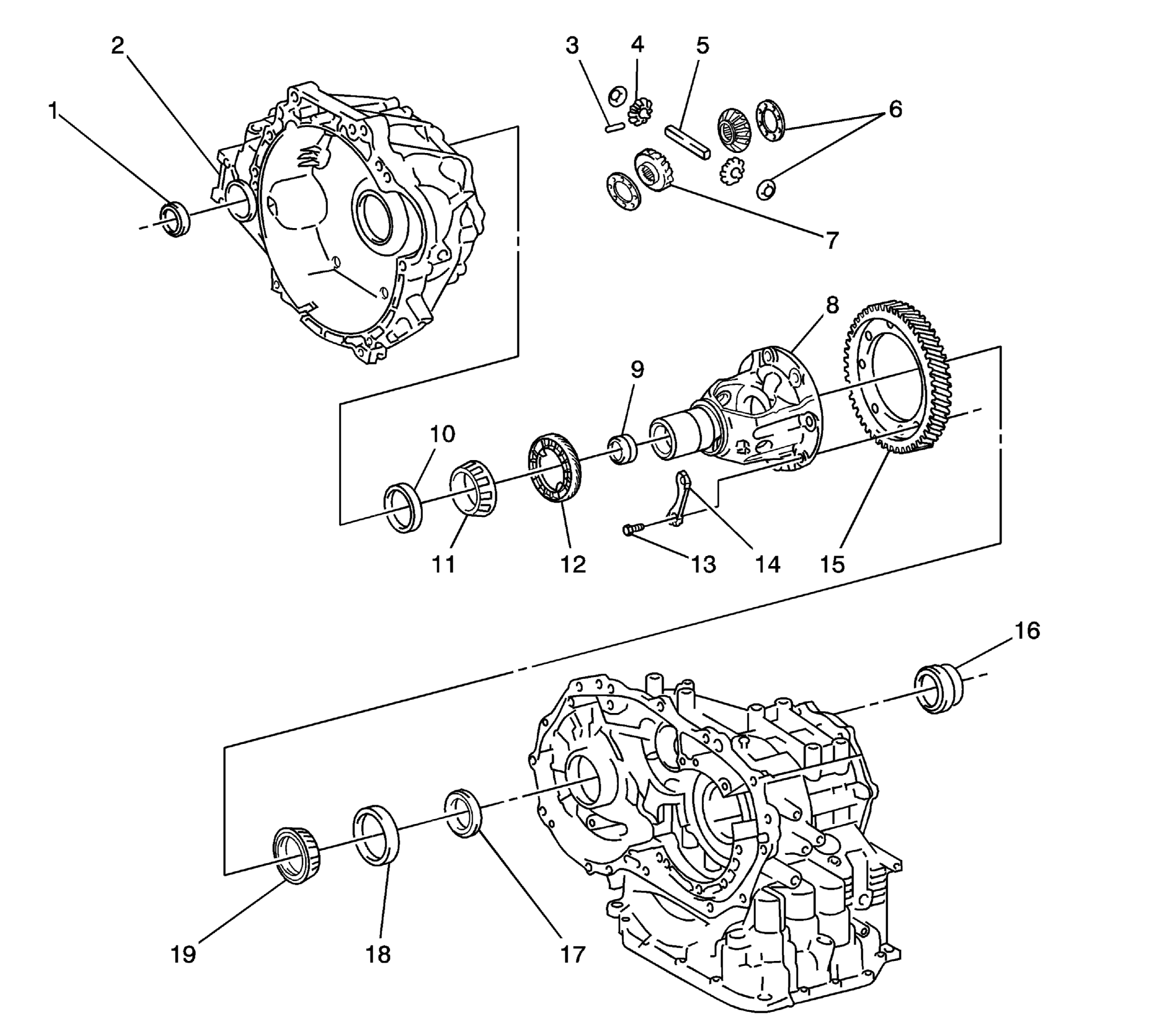

Fig 2: Differential Assembly & Related Components Disassembled View
GM1003076Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Oil Seal
2 Transaxle Housing
3 Pinion Shaft Pin
4 Differential Pinion Gear
5 Pinion Shaft
6 Thrust Washers
7 Differential Side Gear
8 Differential Case
9 Oil Seal
10 Outer Bearing Race
11 Tapered Roller Bearing
12 Speedometer Drive Gear
13 Bolt
14 Lock Plate
15 Ring Gear
16 Oil Seal
17 Shim
18 Outer Race
19 Tapered Roller Bearing

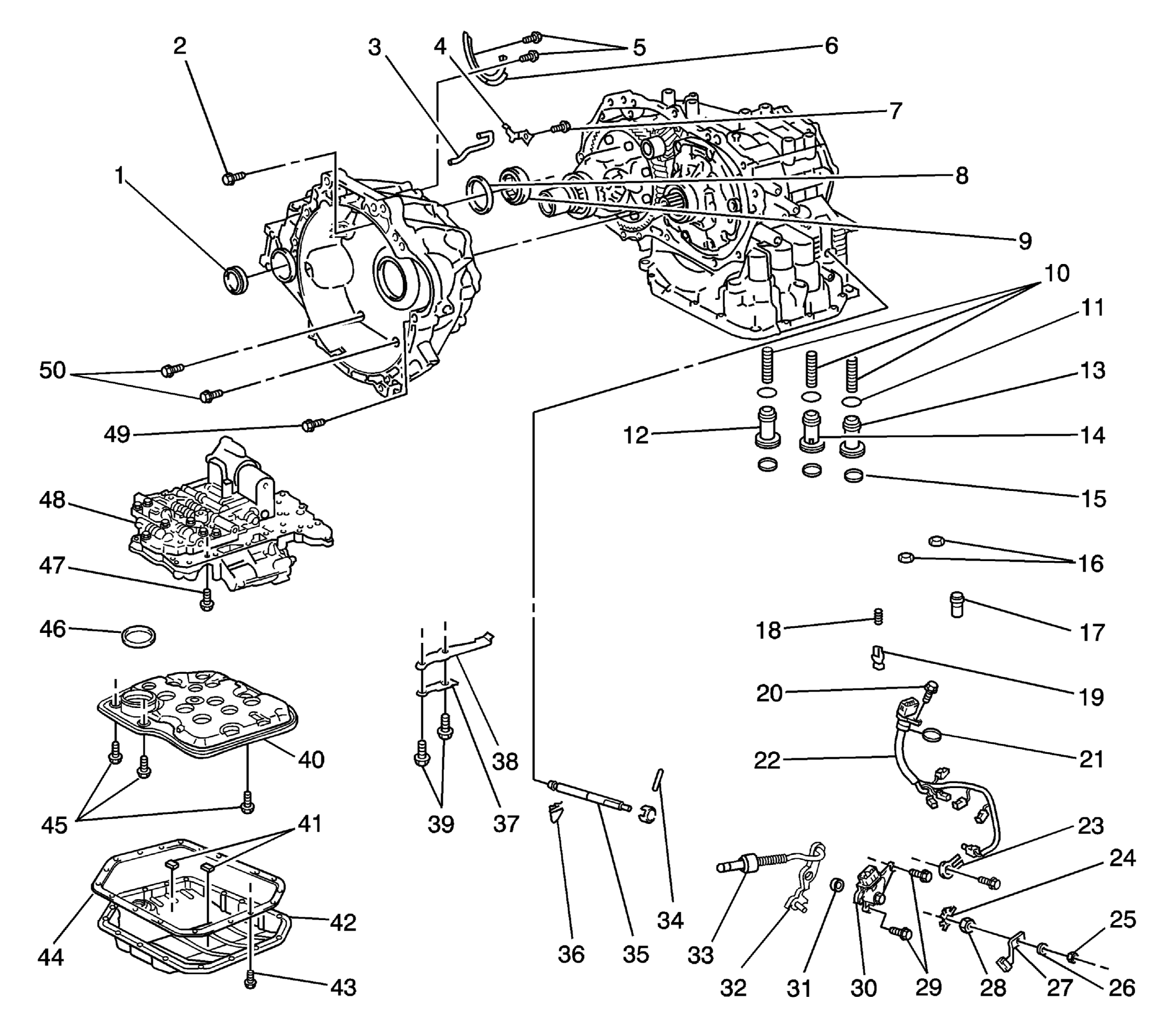

Fig 3: Valve Body & Related Components Disassembled View
GM1003148Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Oil Seal
2 Bolt
3 Differential Gear Lube Apply Tube
4 Bearing Lock Plate
5 Bolt
6 Transaxle Housing Oil Separator
7 Bolt
8 Thrust Roller Bearing
9 Front Drive Pinion Front Tapered Roller Bearing
10 Springs
11 O-ring
12 B2 Accumulator Piston
13 C2 Accumulator Piston
14 C3 Accumulator Piston
15 O-ring
16 Apply Gasket
17 Brake Drum Gasket
18 Spring
19 Check Ball Body
20 Bolt
21 O-ring
22 Transaxle Wiring Harness
23 Lock Plate
24 Lock Washer
25 Nut
26 Washer
27 Control Lever
28 Nut
29 Bolt
30 PNP Switch
31 Washer
32 Manual Valve Lever
33 Parking Lock Rod Sub-Assembly
34 Pin
35 Manual Valve Lever Shaft
36 Manual Valve Lever Shaft Retainer
37 Detent Spring
38 Detent Spring Cover
39 Bolt
40 Oil Filter
41 Magnet
42 Oil Pan
43 Bolt
44 Oil Pan Gasket
45 Oil Filter Bolt
46 Oil Filter O-ring
47 Bolt
48 Valve Body
49 Bolt
50 Transaxle Housing Bolt

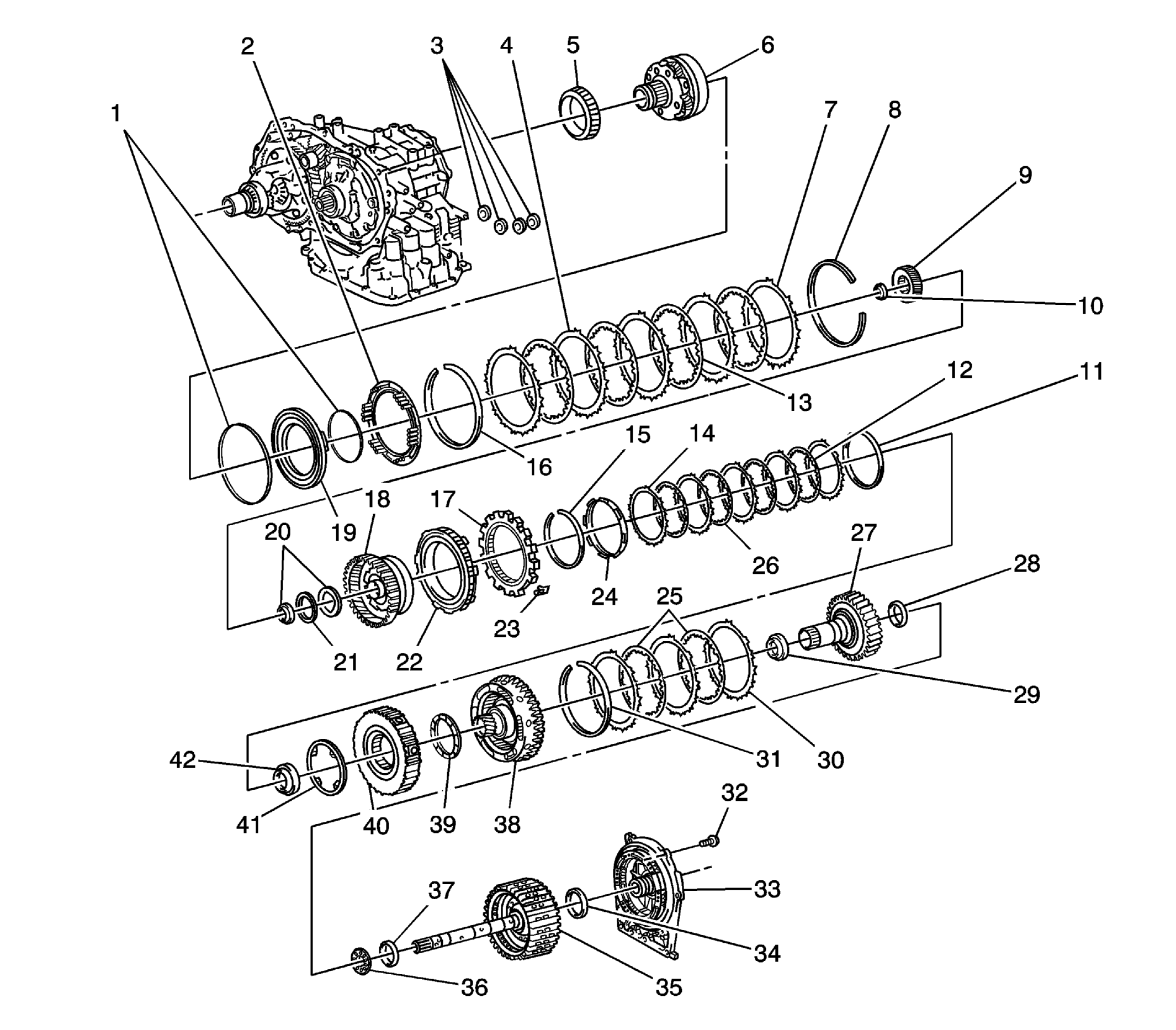

Fig 4: Front & Rear Planetary Gear Assemblies & Related Components Disassembled View
GM1003245Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 O-ring
2 1st & Reverse Brake Return Spring Sub-assembly
3 Rear Cover Plugs
4 Apply Plate
5 Radial Roller Bearing
6 Planetary Gear Assembly
7 Flange
8 Snap Ring
9 Front Planetary Sun Gear
10 Thrust Needle Roller Bearing
11 Snap Ring
12 Disc
13 Disc
14 Flange
15 Snap Ring
16 Snap Ring
17 1 Way Clutch No. 2
18 Rear Planetary Gear
19 1st & Reverse Brake Piston No. 2
20 Bearing Race
21 Planetary Gear Rear Thrust Needle Roller Bearing
22 2nd Brake Cylinder
23 Retainer
24 2nd Brake Piston Sleeve
25 Disc
26 Disc
27 Direct Clutch Hub
28 Bearing Race
29 Rear Planetary Sun Gear, No. 2 Thrust Needle Bearing
30 Flange
31 Snap Ring
32 Bolt
33 Transaxle Rear Cover Assembly
34 Rear Clutch Drum Thrust Needle Roller Bearing
35 Intermediate Shaft Assembly
36 Thrust Needle Roller Bearing
37 Bearing Race
38 Rear Planetary Sun Gear Assembly
39 Planetary Carrier Thrust Washer No. 2
40 1 Way Clutch Assembly
41 Thrust washer No. 1
42 Rear Planetary Sun Gear Thrust Needle Roller Bearing

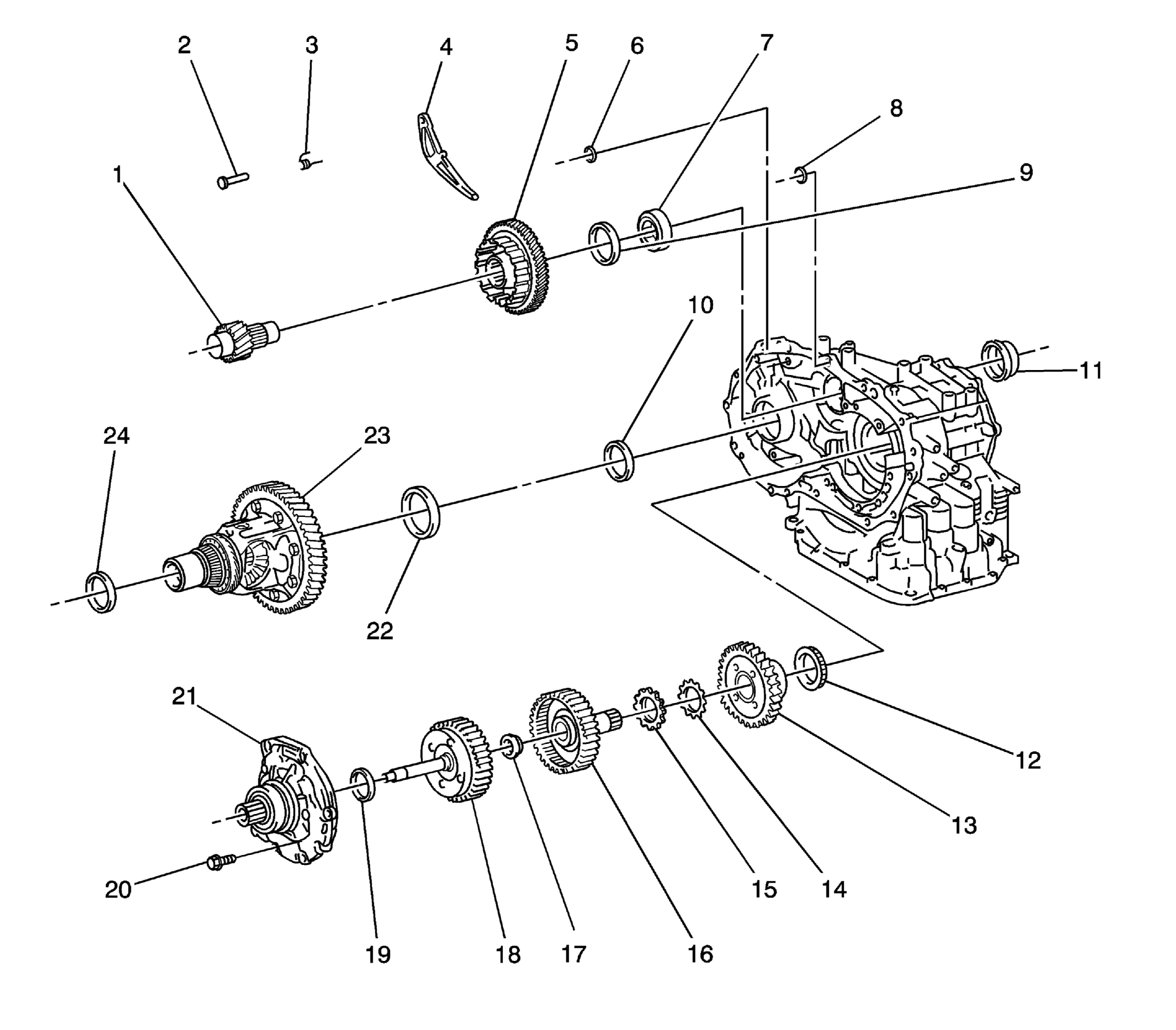

Fig 5: Input Shaft & Related Components Disassembled View
GM1004104Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Differential Drive Pinion
2 Shaft
3 Torsion Spring
4 Parking Lock Pawl
5 Counter Drive Gear
6 Apply Gasket
7 Roller Bearing
8 Apply Gasket
9 Thrust Roller Bearing
10 Shim
11 Oil Seal
12 Tapered Roller Bearing
13 Counter Drive Gear
14 Lock Washer
15 Nut
16 Forward Clutch Hub Sub-Assembly
17 Forward Clutch Hub Thrust Roller Bearing
18 Input Shaft Assembly
19 Stator Shaft Thrust Roller Bearing
20 Bolt
21 Oil Pump Assembly
22 Outer Race
23 Differential Case
24 Outer Bearing Race

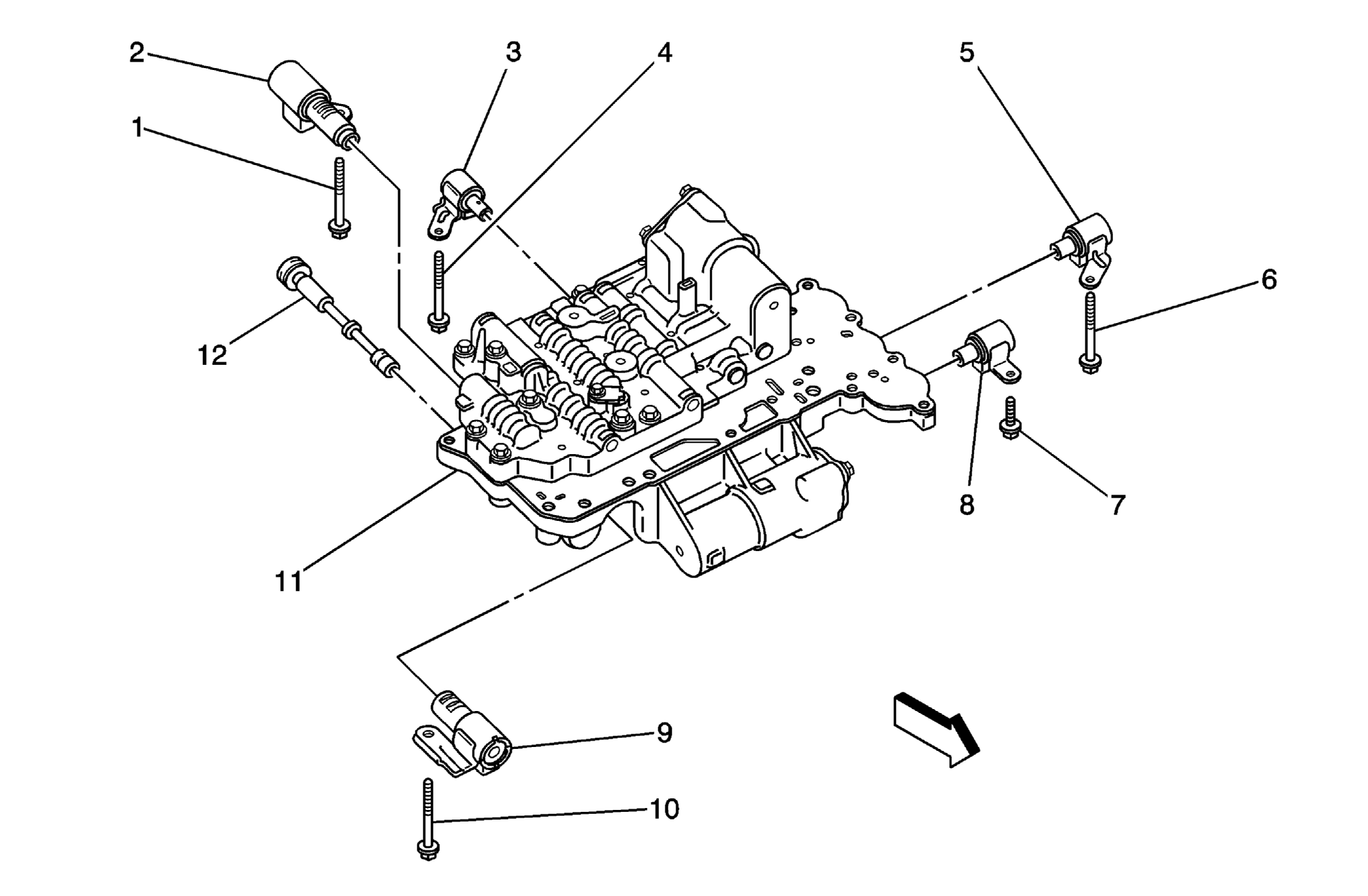

Fig 6: Valve Body & Related Components Disassembled View
GM1004114Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Bolt
2 Line Pressure Control Solenoid Assembly
3 2nd Brake Control Solenoid Assembly
4 Bolt
5 Shift Solenoid No. 1
6 Bolt
7 Bolt
8 Shift Solenoid No. 2
9 Torque Converter Clutch Solenoid Assembly
10 Bolt
11 Valve Body Assembly
12 Manual Valve

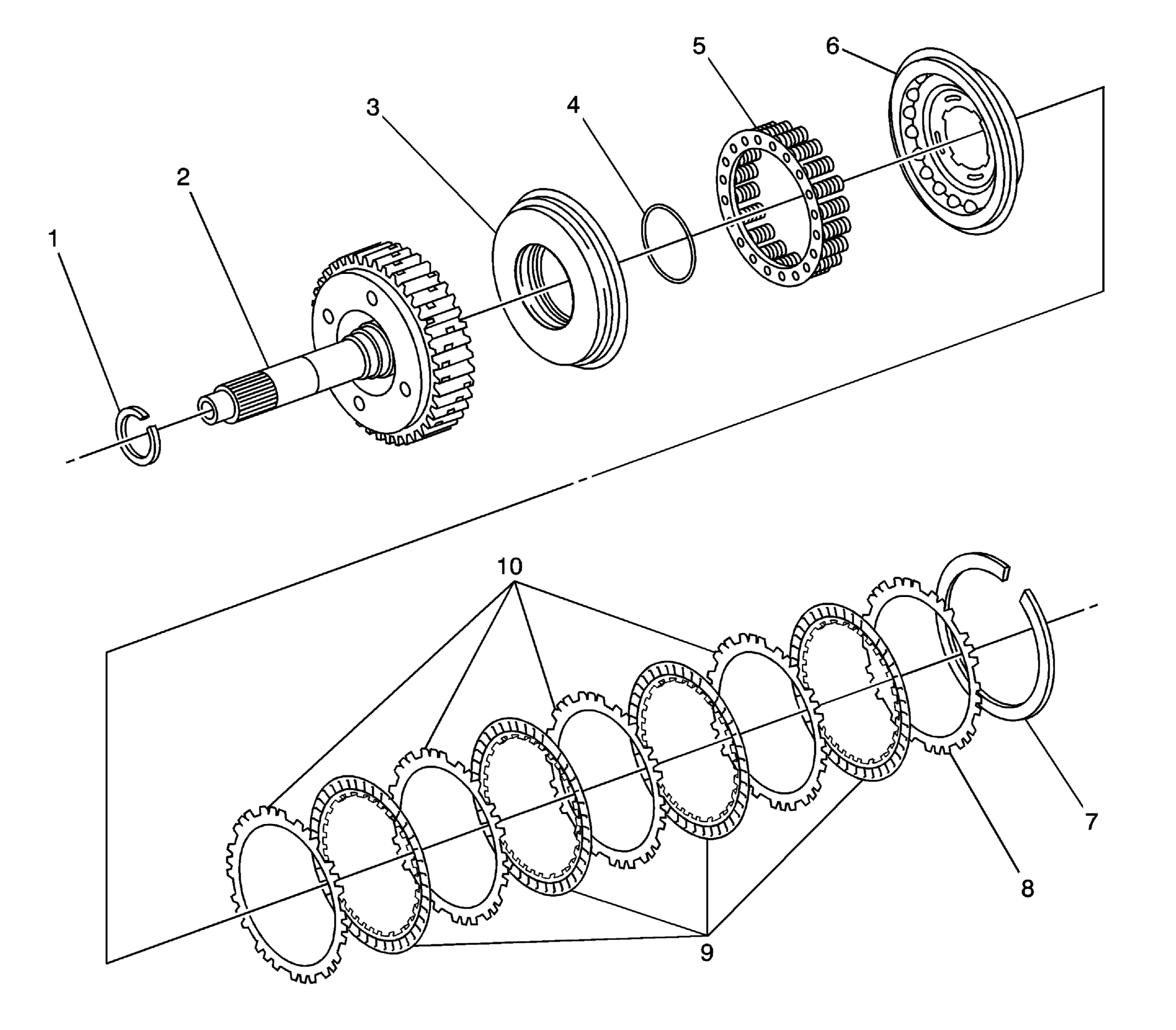

Fig 7: Forward Clutch & Related Components Disassembled View
GM1004118Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Snap Ring
2 Input Shaft
3 Forward Clutch Piston
4 Forward Clutch Piston O-ring
5 Forward Clutch Piston Return Spring
6 Clutch Balancer
7 Snap Ring
8 Flange
9 Discs
10 Plates

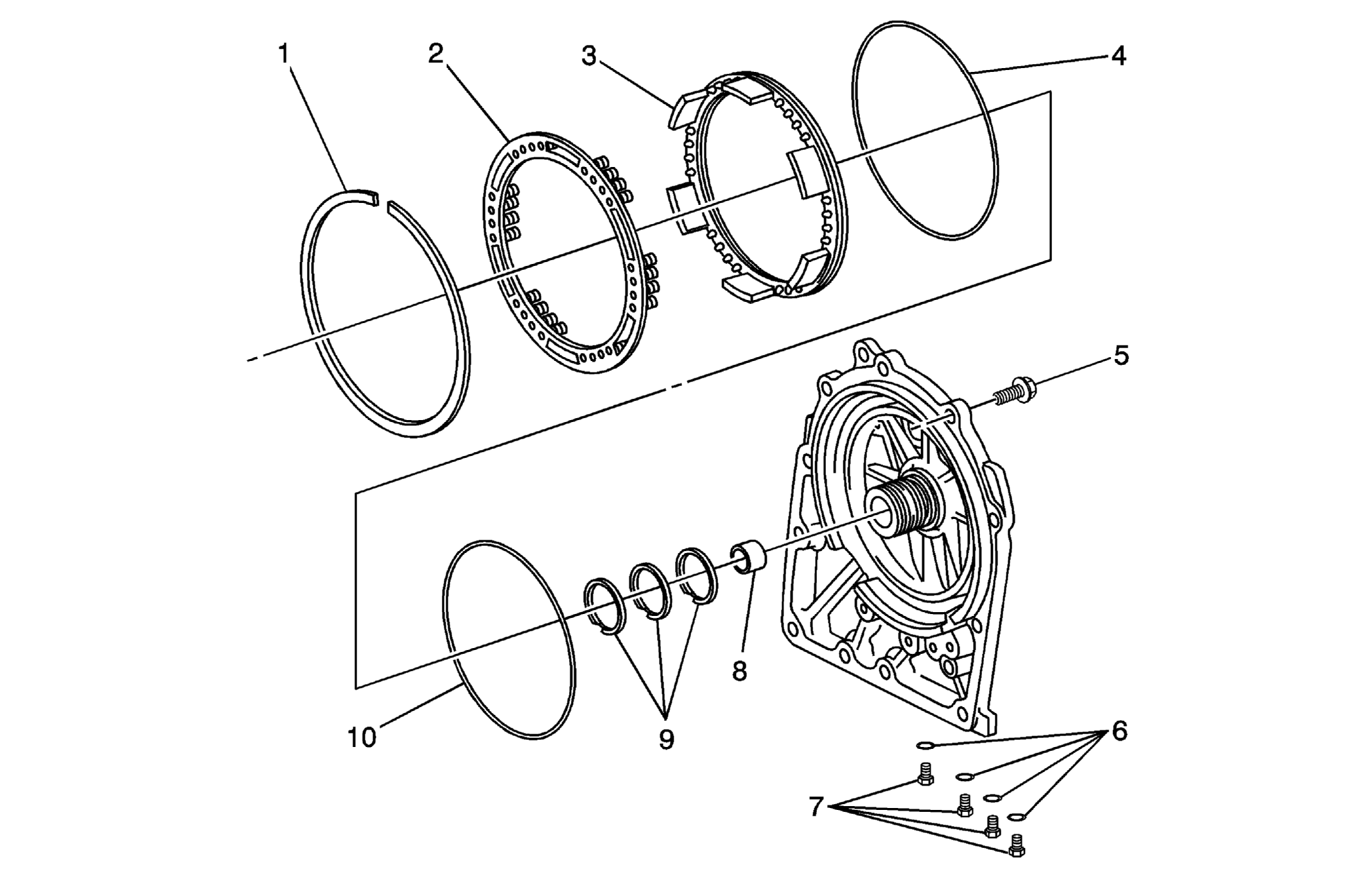

Fig 8: Overdrive Brake & Related Components Disassembled View
GM1004123Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Snap Ring
2 Overdrive Brake Return Spring
3 2nd Coast and O/D Brake Piston
4 O-ring
5 Bolt
6 O-ring
7 Transaxle Rear Cover Plug
8 Transaxle Rear Cover Roller Bearing
9 Clutch Drum Oil Seal Ring
10 O-ring

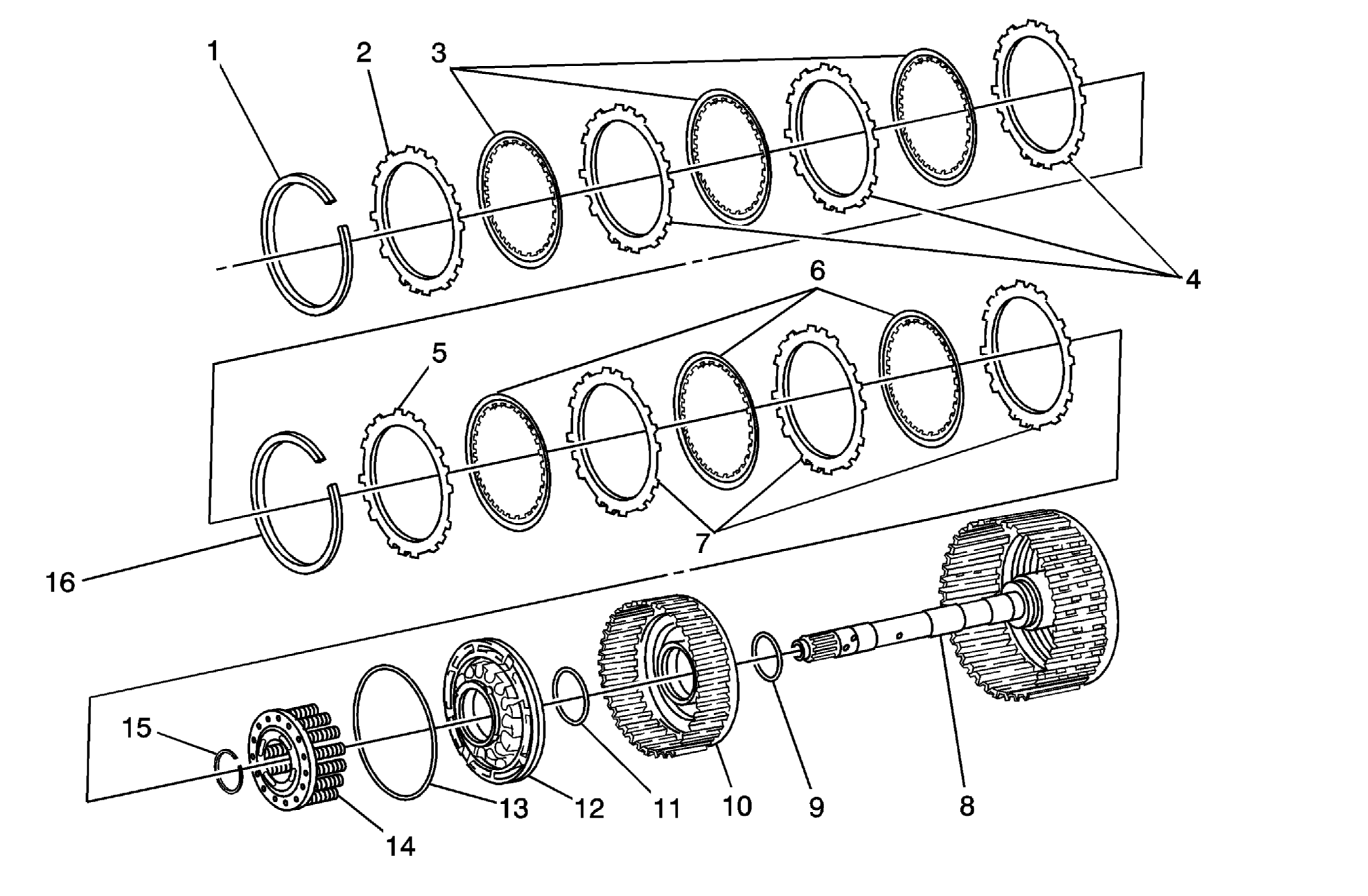

Fig 9: Direct Clutch & Related Components Disassembled View
GM1004131Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Snap Ring
2 Flange
3 Disc
4 Plate
5 Flange
6 Disc
7 Flange
8 Intermediate Shaft
9 O-ring
10 Direct Clutch Drum
11 O-ring
12 Direct Clutch Piston
13 O-ring
14 Direct Clutch Return Spring
15 Snap Ring
16 Snap Ring

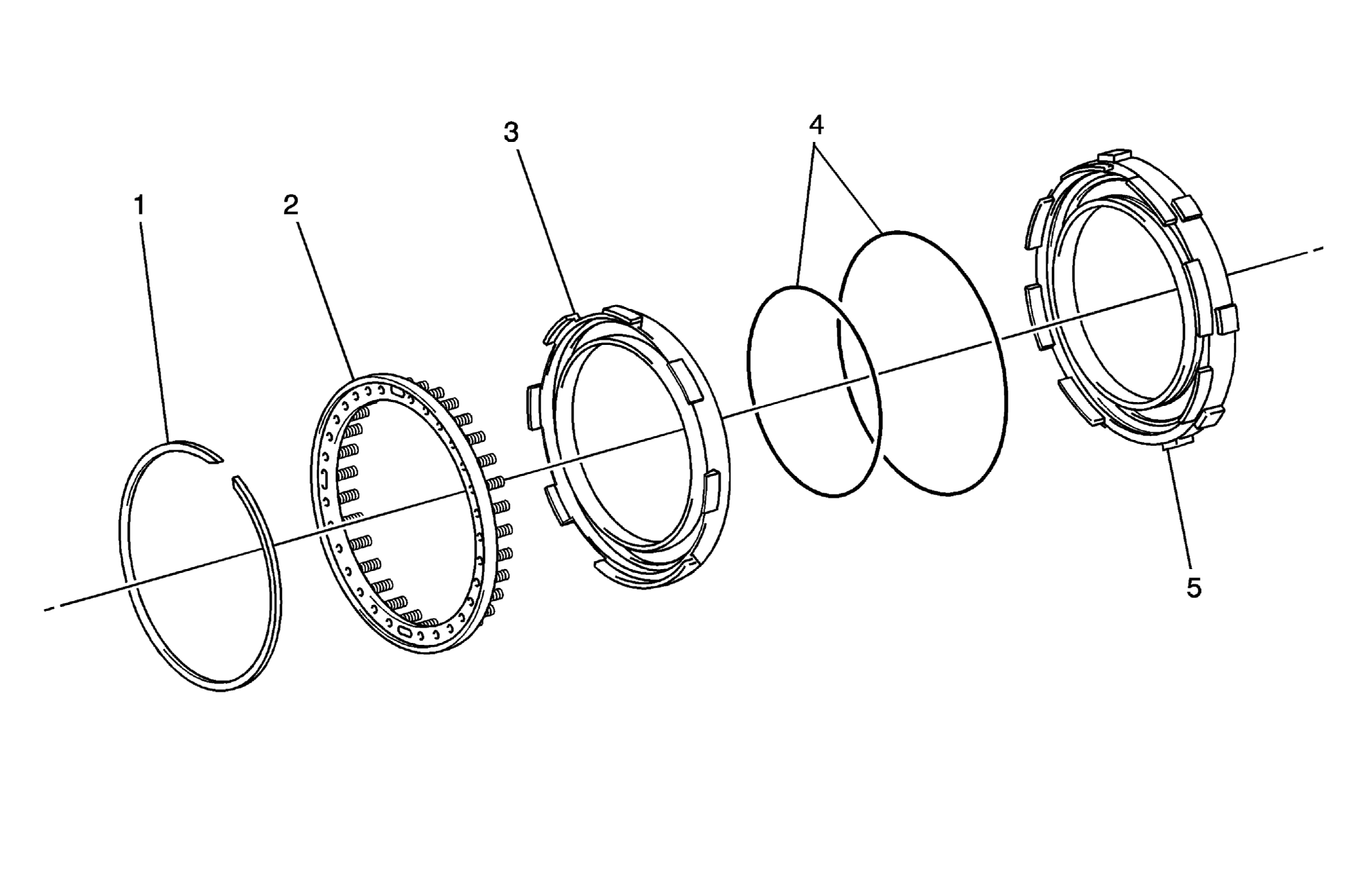

Fig 10: 2nd Brake & Related Components Disassembled View
GM1004149Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Snap Ring
2 2nd Brake Piston Return Spring
3 2nd Brake Piston
4 O-rings
5 2nd Brake Cylinder

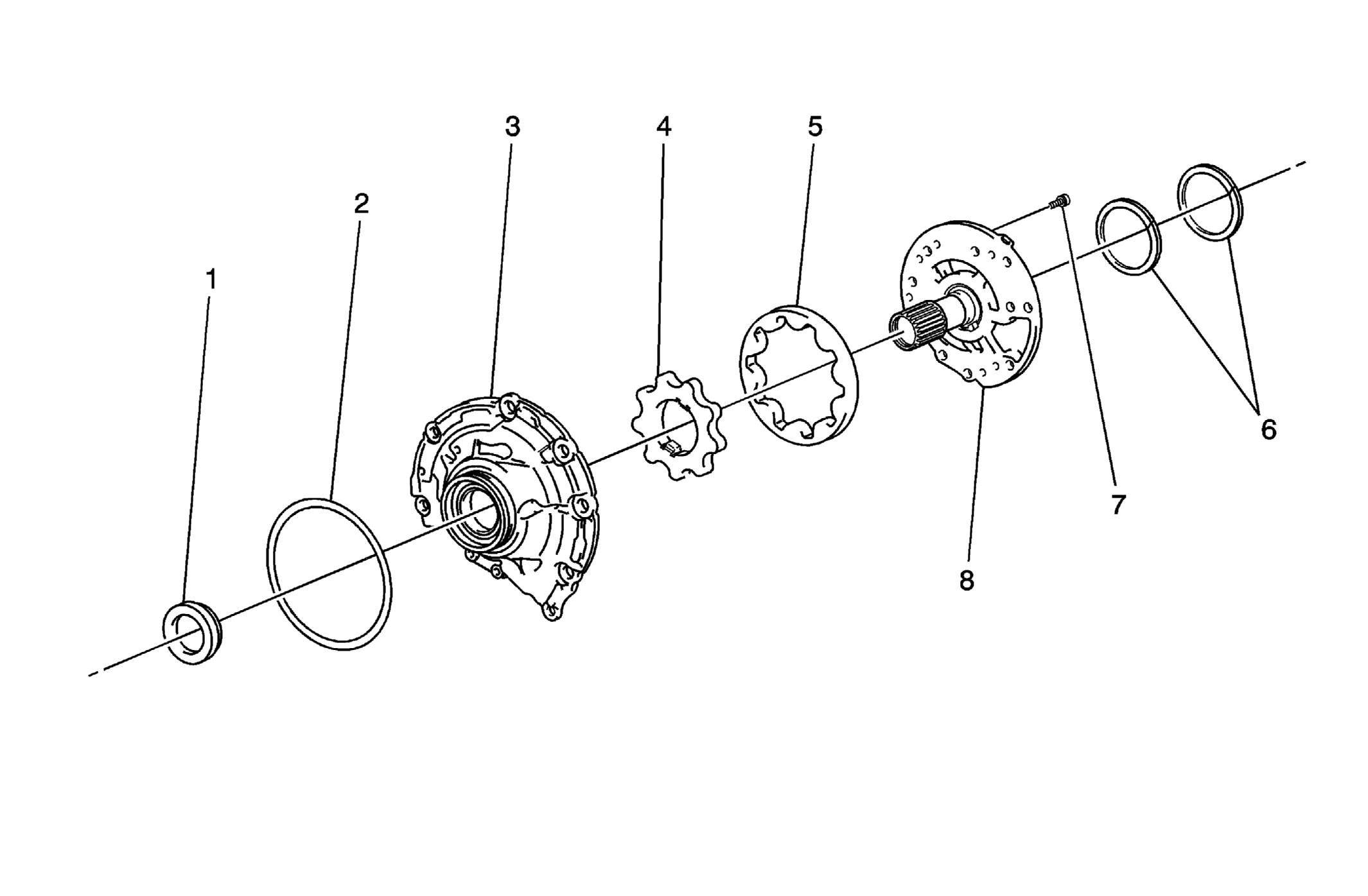

Fig 11: Oil Pump Disassembled View
GM1004156Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Oil Seal
2 O-ring
3 Oil Pump Body
4 Oil Pump Drive Gear
5 Oil Pump Driven Gear
6 Seal Rings
7 Torx Screw
8 Stator Shaft
