ABS Schematics

Fig 1: Module Power & Ground Schematic
GM787953Courtesy of GENERAL MOTORS CORP.

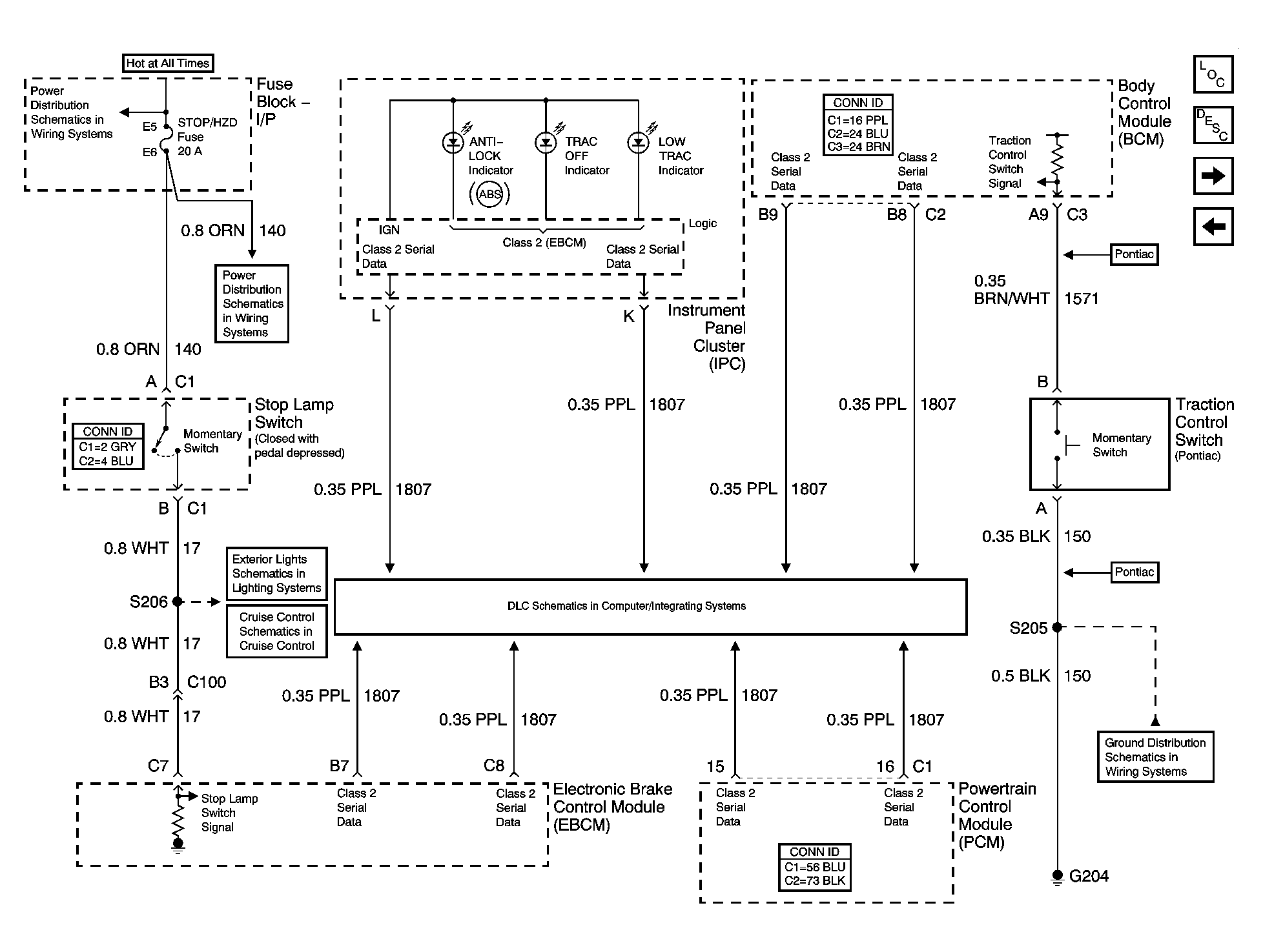

Fig 2: Indicators and Switches Schematic
GM1400606Courtesy of GENERAL MOTORS CORP.
Fig 3: Wheel Speed Sensors Schematic
GM787955Courtesy of GENERAL MOTORS CORP.
