Installation Procedure

  1. Transfer the mount bracket to the new mount.
    2. Fig 1: Identifying Transmission Side Cover Bolts
    GM510427Courtesy of GENERAL MOTORS CORP.
  2. Position the mount and start the bolts into the threads.
    3. NOTE: Refer to Fastener Notice in Cautions and Notices.
  3. Tighten the mount bolts.

    Tighten:  Tighten the bolts to 66 N.m (41 lb ft).

    4. Fig 2: Identifying Mount Expansion Bolt
    GM511024Courtesy of GENERAL MOTORS CORP.
  4. Install the mount expansion bolt.

    Tighten:  Tighten the bolt to 55 N.m (41 lb ft).

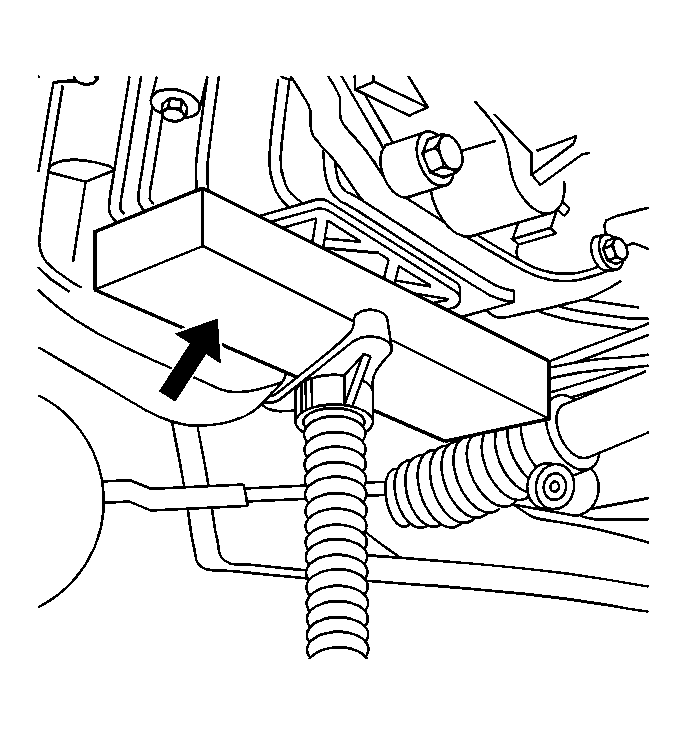

    5. Fig 3: View Of Transaxle Support Components
    GM414963Courtesy of GENERAL MOTORS CORP.
  5. Remove the jackstand and the wood block.
  6. Install the left fender liner. Refer to Front Fender Liner Replacement in Body Front End.
  7. Install the left tire and wheel assembly. Refer to Tire and Wheel Removal and Installation in Tires and Wheels.
  8. Lower the vehicle.
