Automatic Transmission Controls Schematics

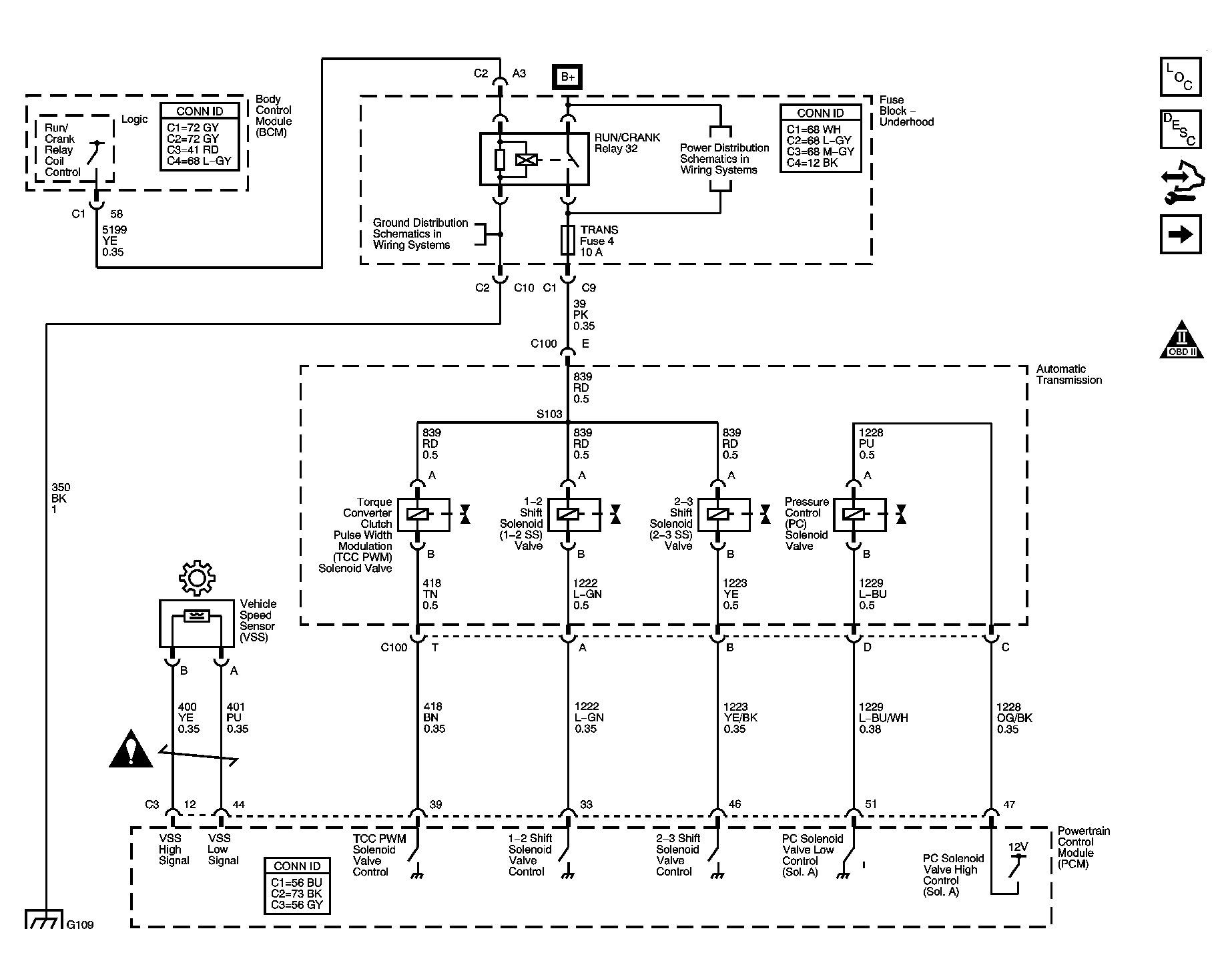

Fig 1: Transmission Solenoids and VSS

Courtesy of GENERAL MOTORS CORP.

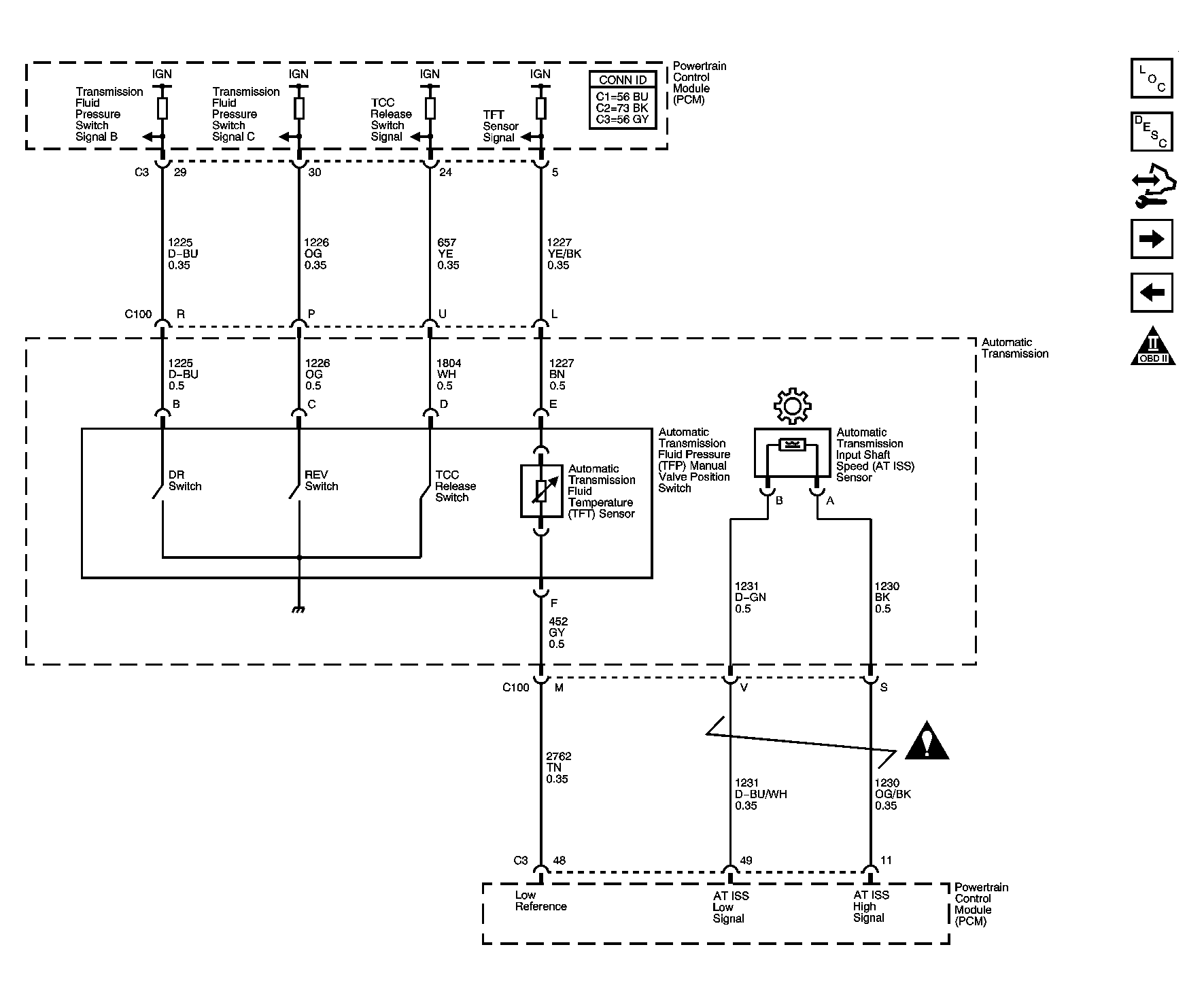

Fig 2: Transmission Switches, TFT and A/T ISS Sensor

Courtesy of GENERAL MOTORS CORP.

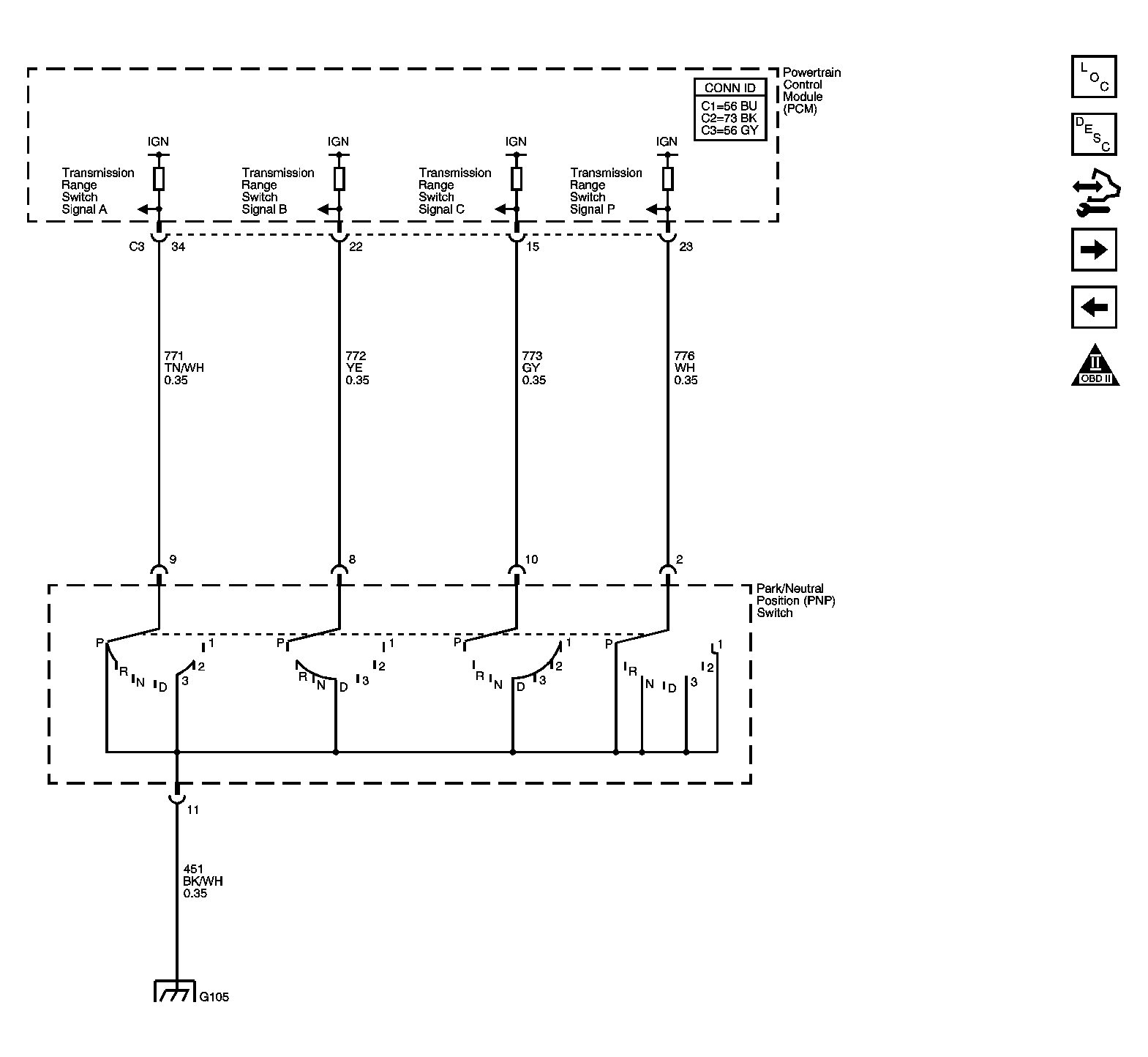

Fig 3: PNP Switch

Courtesy of GENERAL MOTORS CORP.

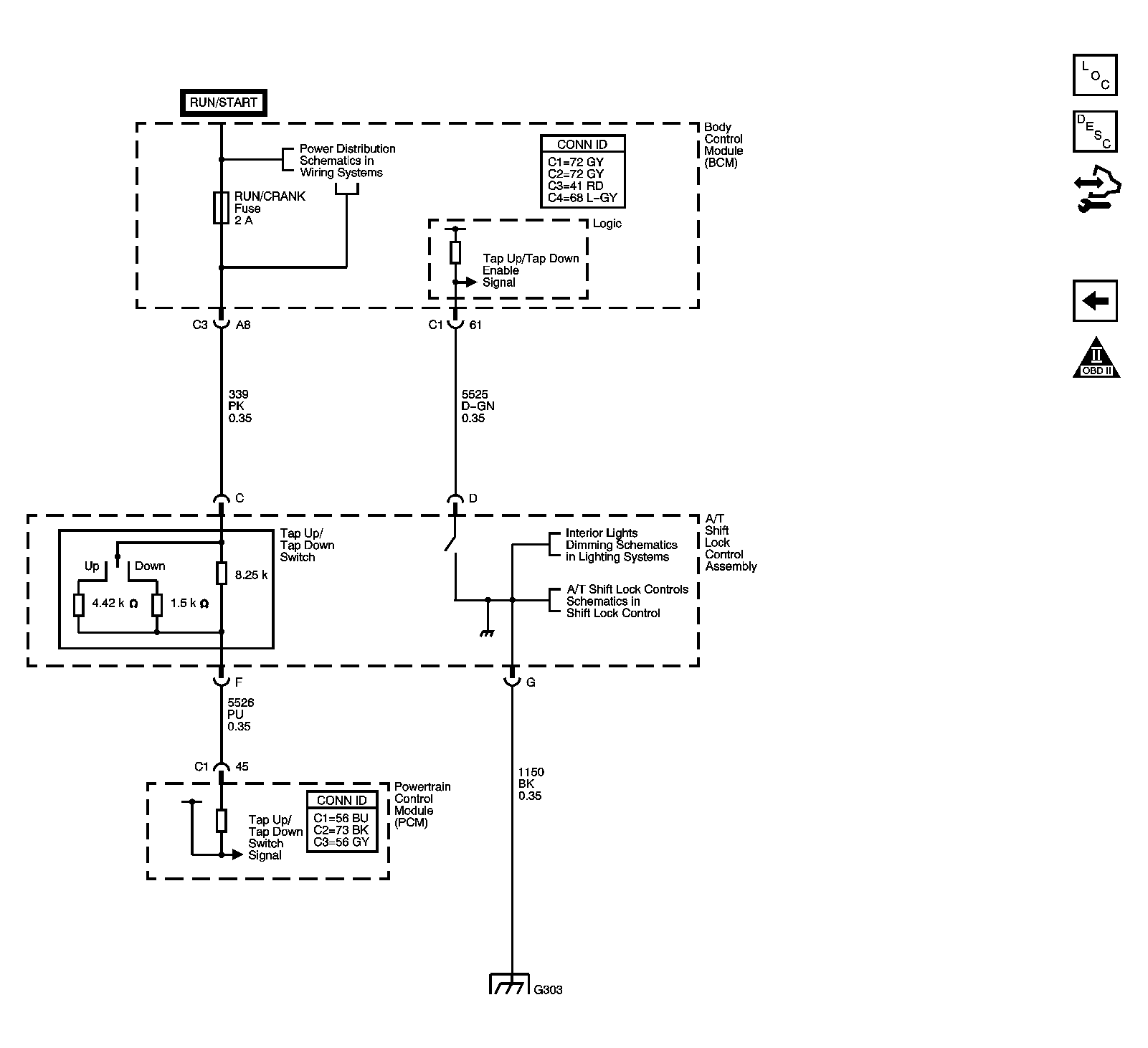

Fig 4: Tap Up/Tap Down Switch

Courtesy of GENERAL MOTORS CORP.
