Column/Ignition Lock Schematics
Column/Ignition Lock Schematics

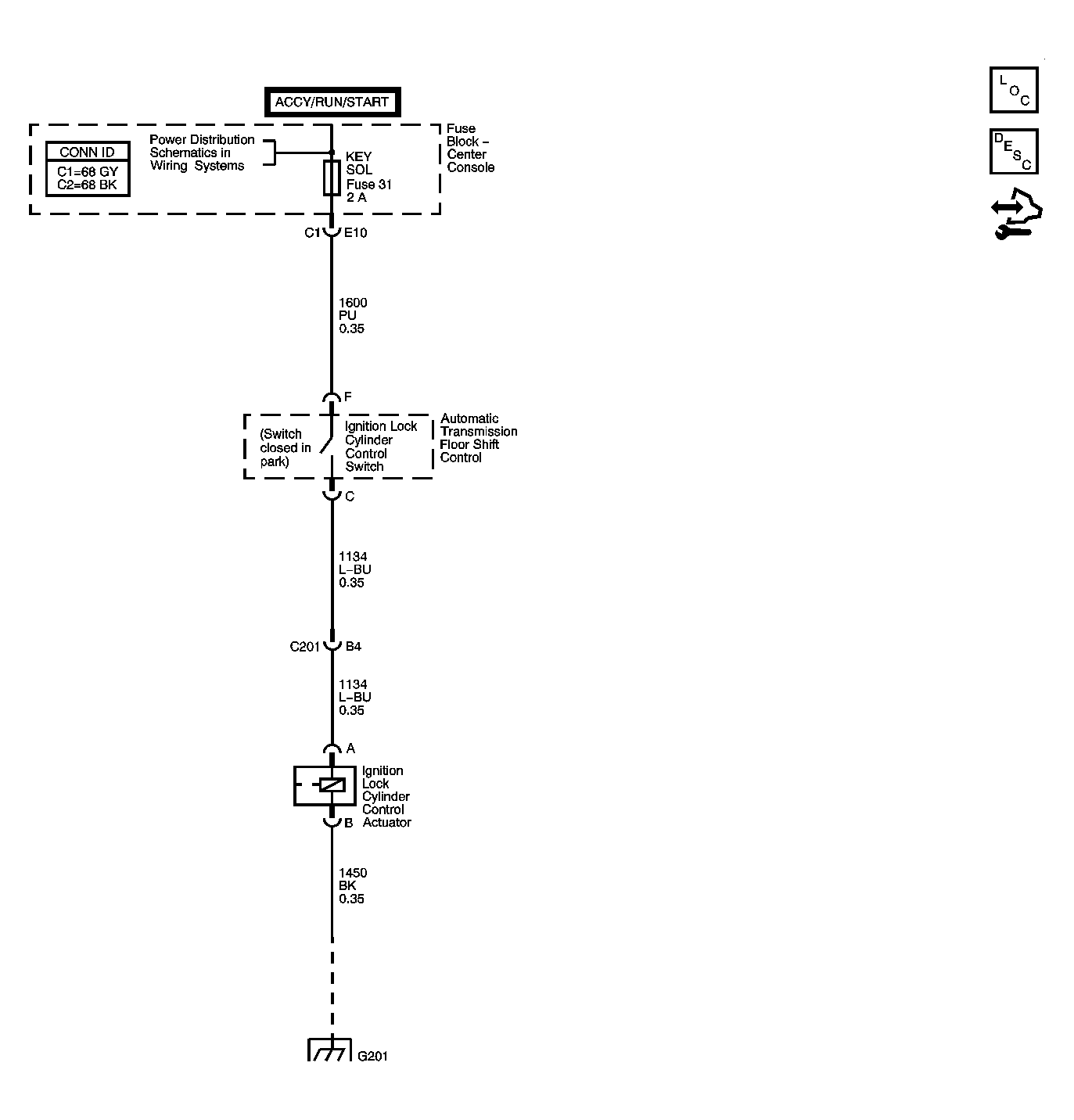

Fig 1: Column/Ignition Lock (Pontiac)
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
