Home >> Pontiac >> 2003 >> Vibe Base, AWD >> Repair and Diagnosis >> Transmission >> Automatic Trans >> Automatic Transmission Overhaul - 4 Speed-Mu5 >> Specifications >> General Specifications

General Specifications

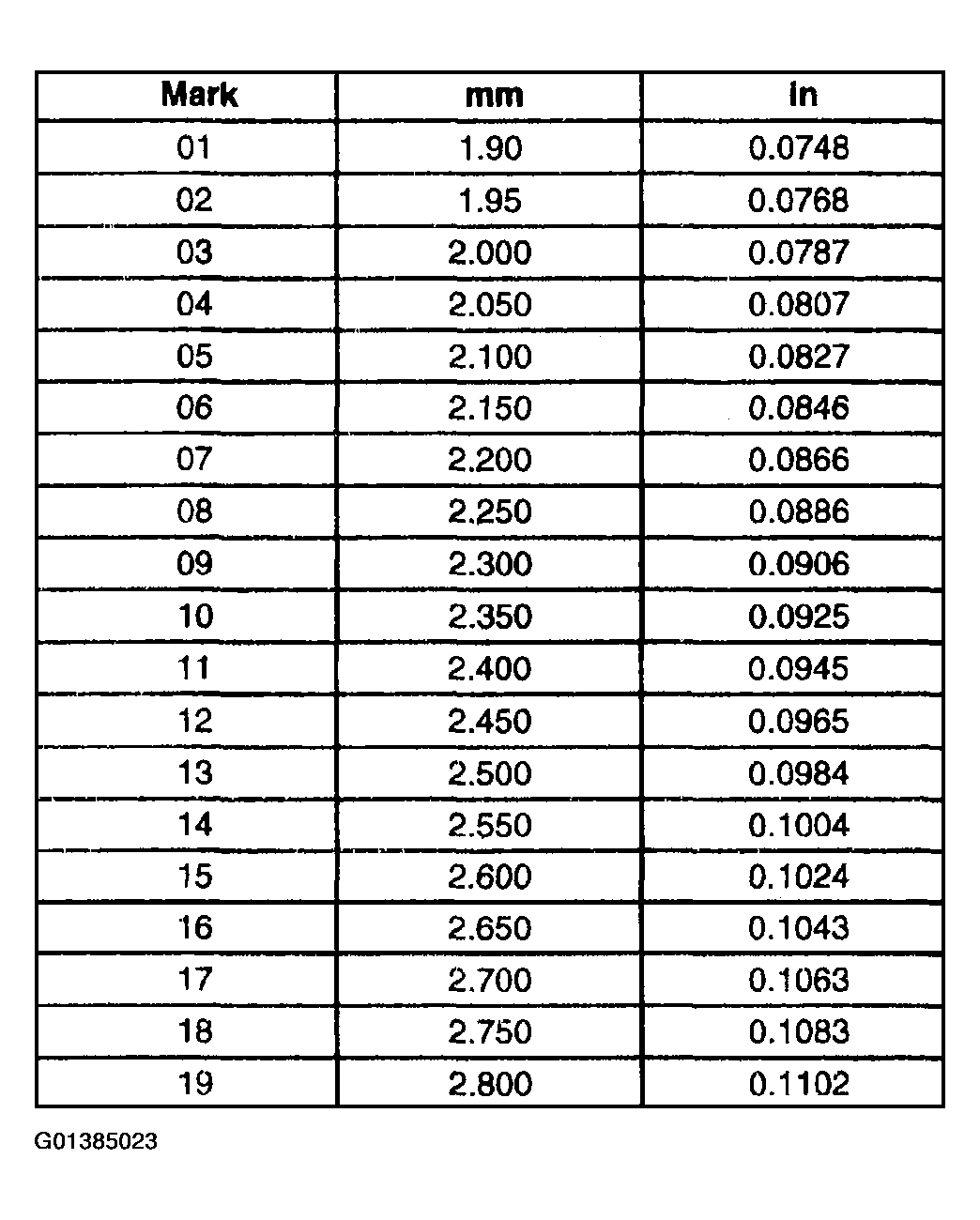

Fig 1: Differential Side Bearings Selective Shim Table

G01385023

Courtesy of GENERAL MOTORS CORP.
