Installation Procedure

  1. Install the power steering gear (1) to the front suspension crossmember (2).

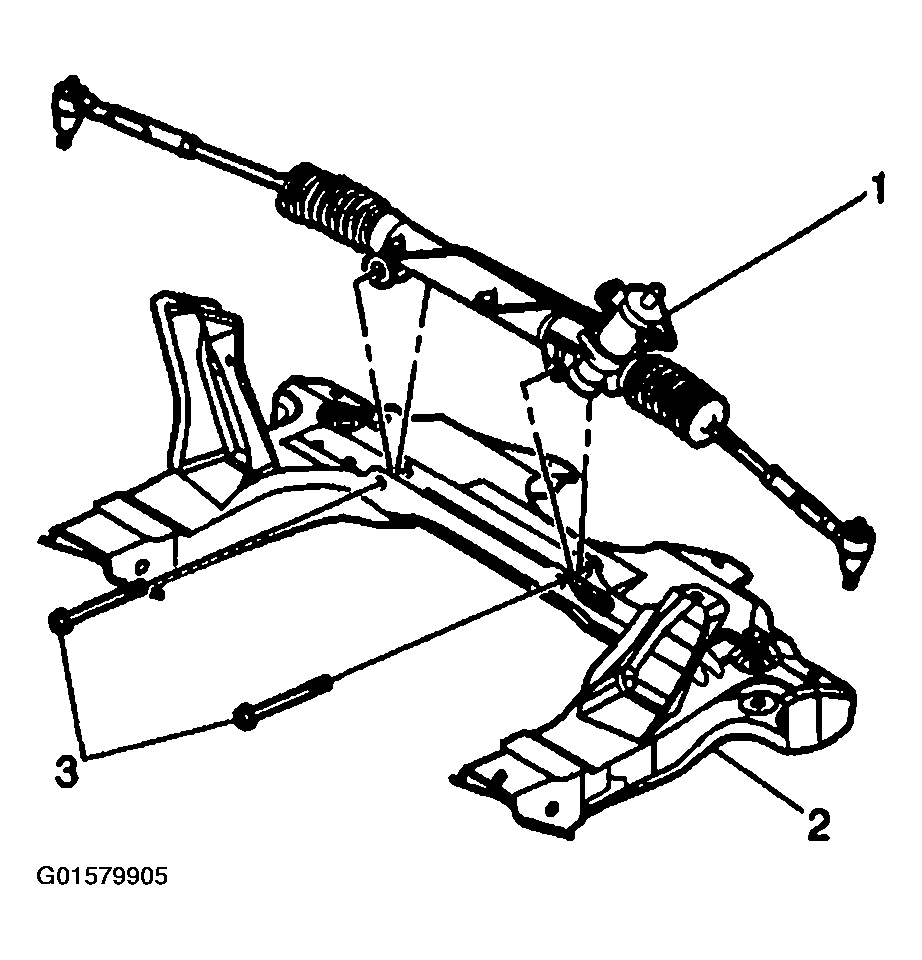

    Fig 1: Identifying Power Steering Gear
    G01579905Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to FASTENER NOTICE .
  2. Install the power steering gear mounting bolts (3). Tighten the bolts to 120 N.m (89 lb ft).
  3. Install the front suspension crossmember. Refer to FRONT SUSPENSION CROSSMEMBER REPLACEMENT .
  4. Install the lower pinch bolt to the intermediate shaft. Refer to INTERMEDIATE STEERING SHAFT REPLACEMENT .
  5. Lower the vehicle.
  6. Bleed the power steering system. Refer to Bleeding the Power Steering System .
  7. Align the front wheels. Refer to in MEASURING WHEEL ALIGNMENT .
