Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Sunfire and 2002 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise the vehicle on a hoist.
  2. Remove the tire and wheel assemblies.
  3. If the vehicle is equipped with a stabilizer shaft, remove the stabilizer shaft link. Refer to STABILIZER SHAFT LINK REPLACEMENT .
  4. If removing the right lower control arm, remove the engine mount strut retaining bolts.
  5. Remove the engine mount strut.

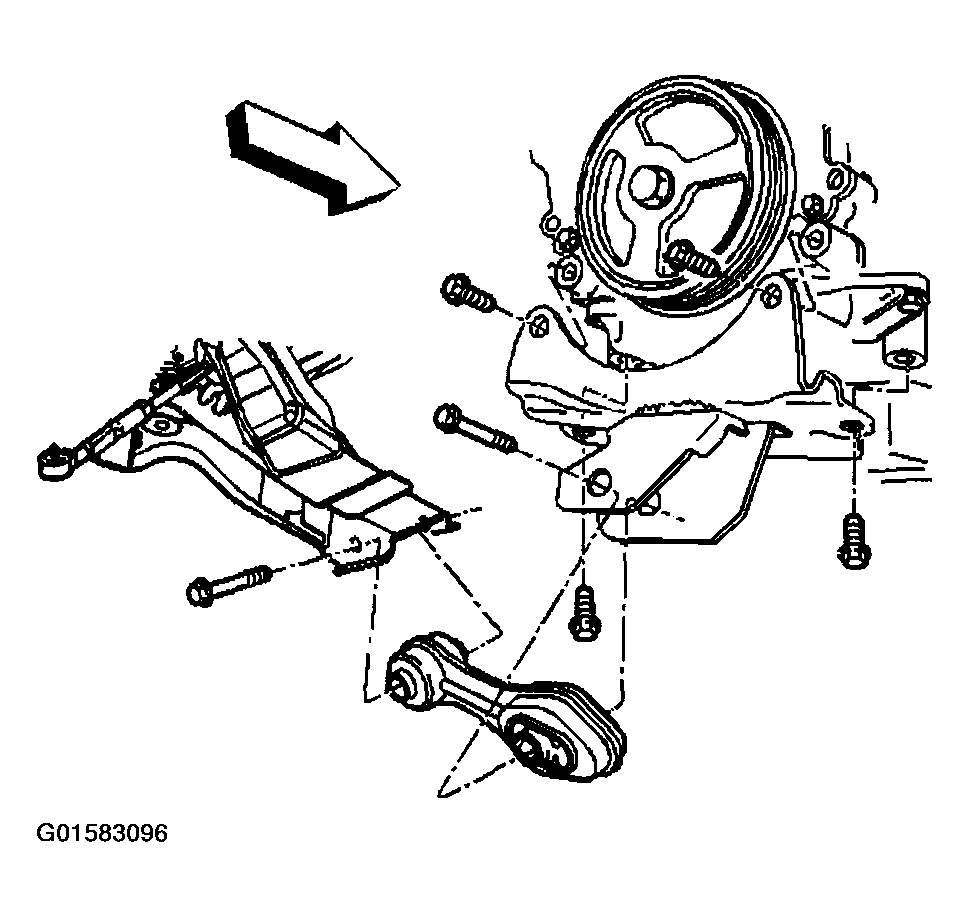

    Fig 1: Engine Mount Strut
    G01583096Courtesy of GENERAL MOTORS CORP.
  6. If removing the left lower control arm, remove the front suspension support brace mounting bolts.
  7. Remove the front suspension support brace (3).

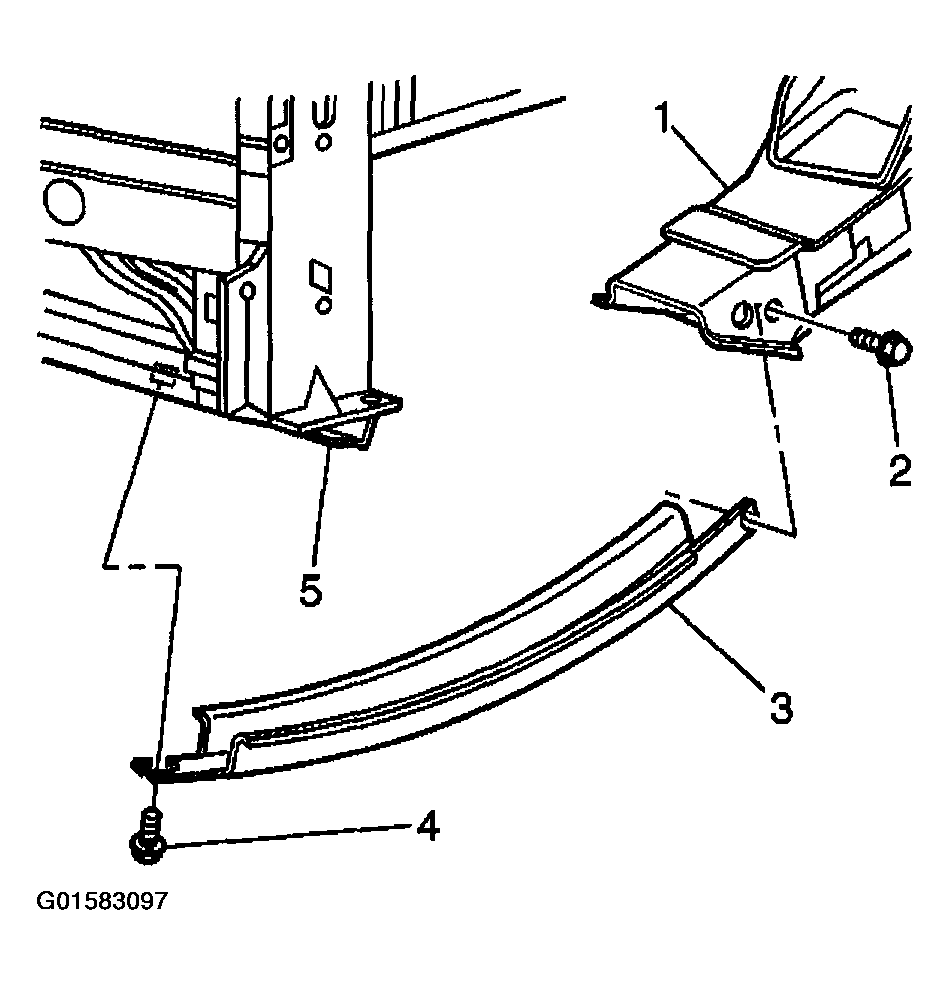

    8. Fig 2: Front Suspension Support Brace
    G01583097Courtesy of GENERAL MOTORS CORP.
  8. Remove the ball joint from the steering knuckle. Refer to LOWER BALL JOINT REPLACEMENT .
  9. Remove the wiring harness from the lower control arm.
  10. Remove the lower control arm front (5) and the rear (4) mounting bolts.
  11. Remove the lower control arm (2) from the front suspension crossmember (1).

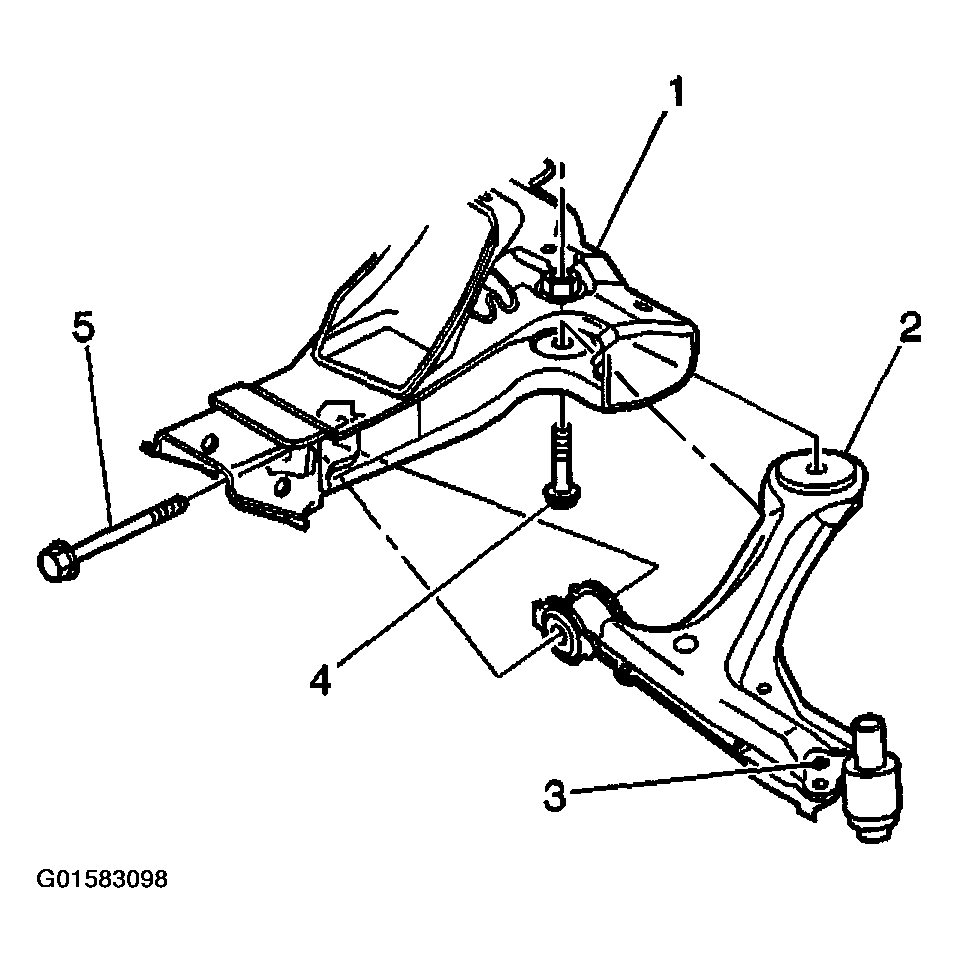

    Fig 3: Lower Control Arm
    G01583098Courtesy of GENERAL MOTORS CORP.
