Power Steering Gear Disassembled View (Magnasteer)

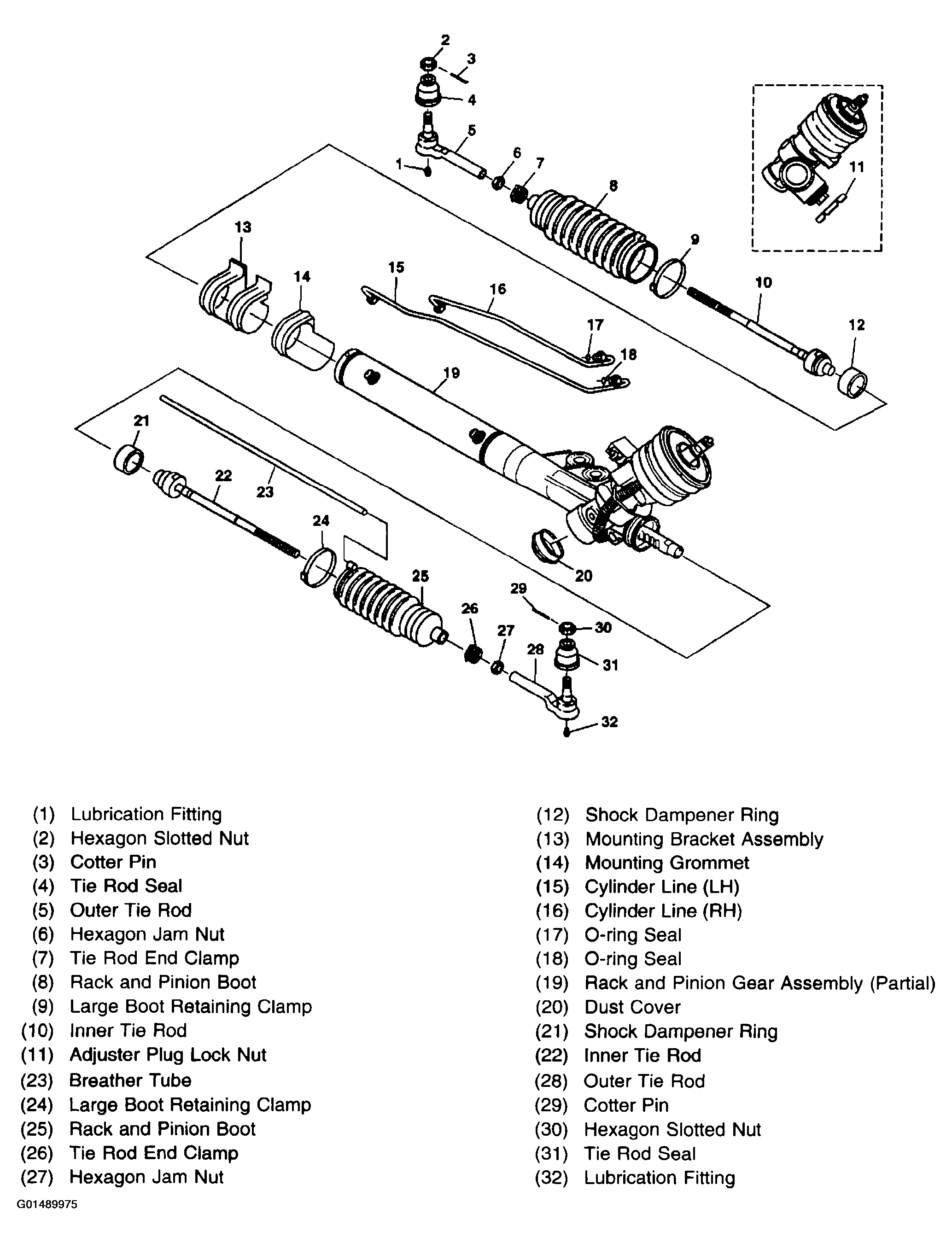

Fig 1: Magnasteer Power Steering Gear

G01489975

Courtesy of GENERAL MOTORS CORP.
