Transfer Case - STEYR (Unit Repair)
>>
Special Tools & Equipment
Special Tools & Equipment

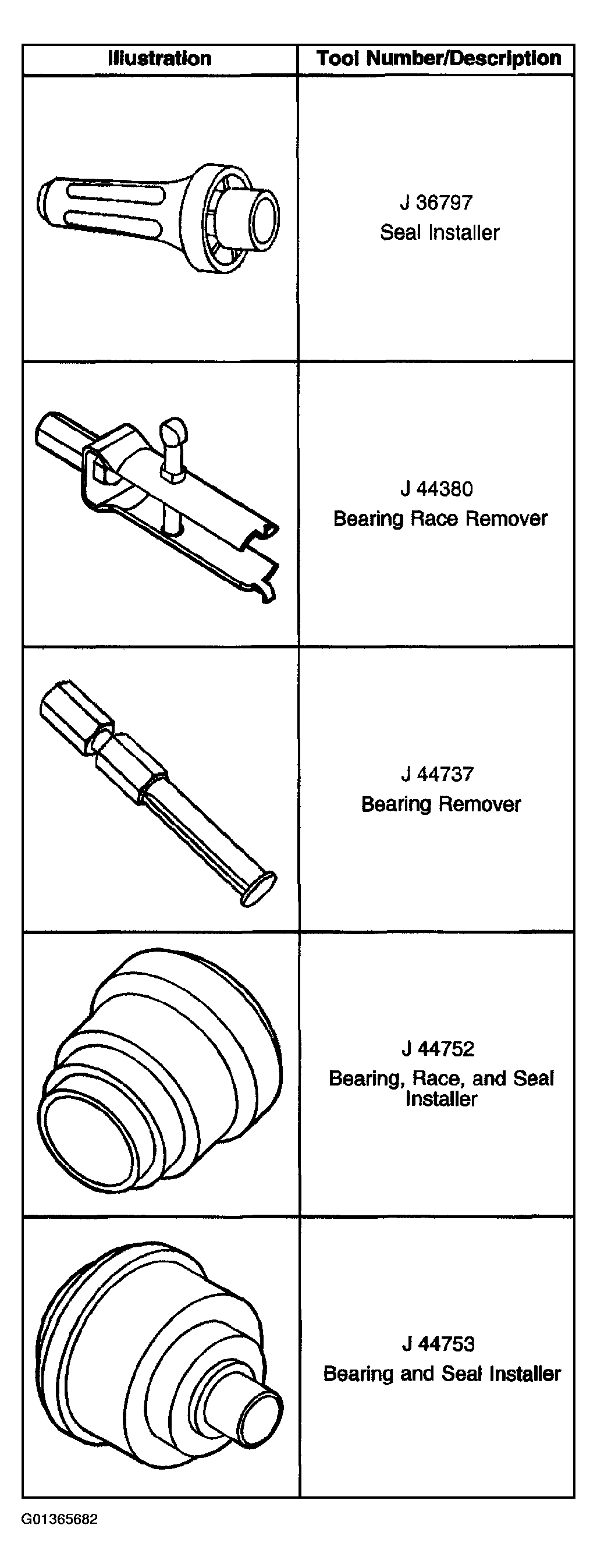

Fig 1: Special Tools & Equipment (1 Of 4)
Courtesy of GENERAL MOTORS CORP.

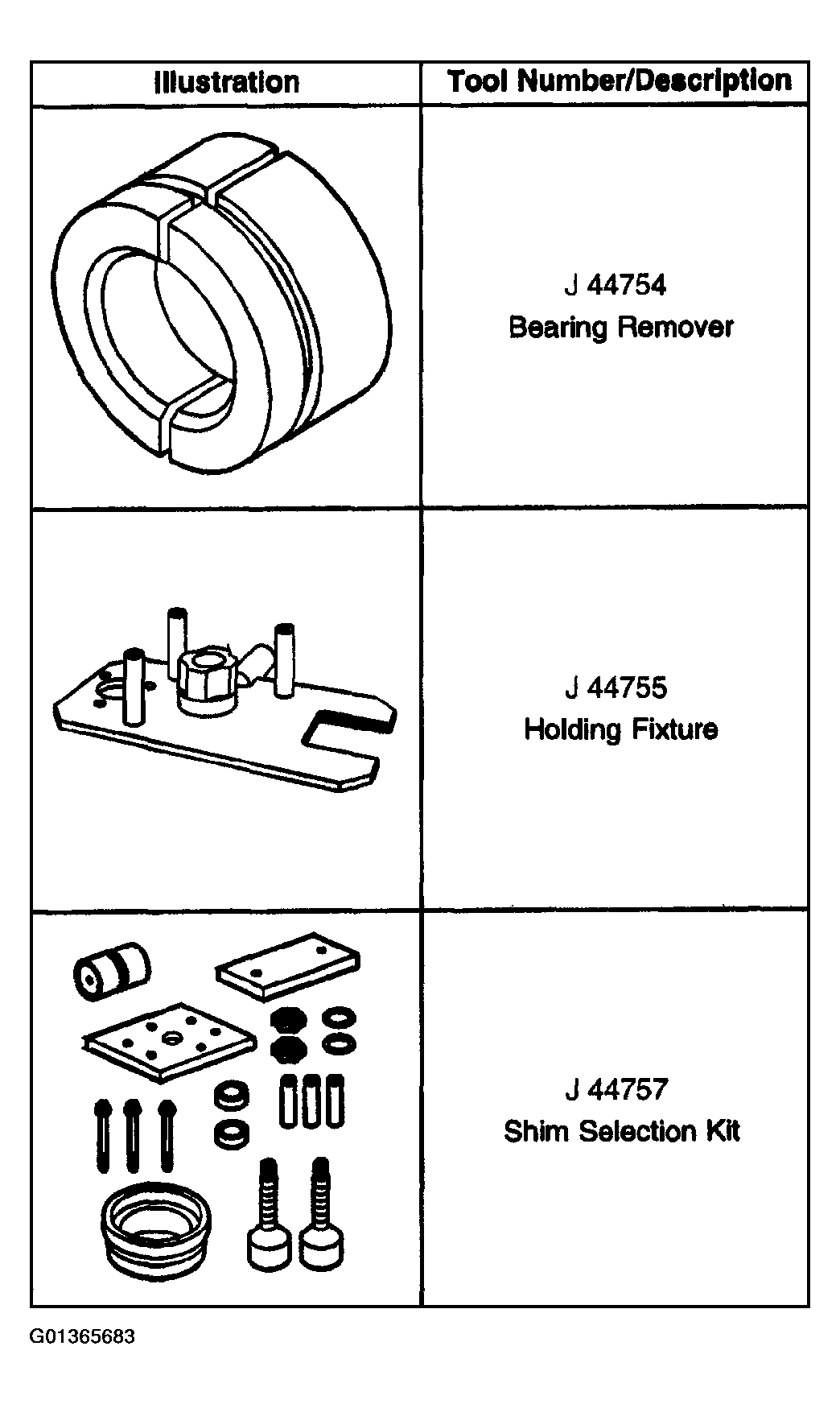

Fig 2: Special Tools & Equipment (2 Of 4)
Courtesy of GENERAL MOTORS CORP.

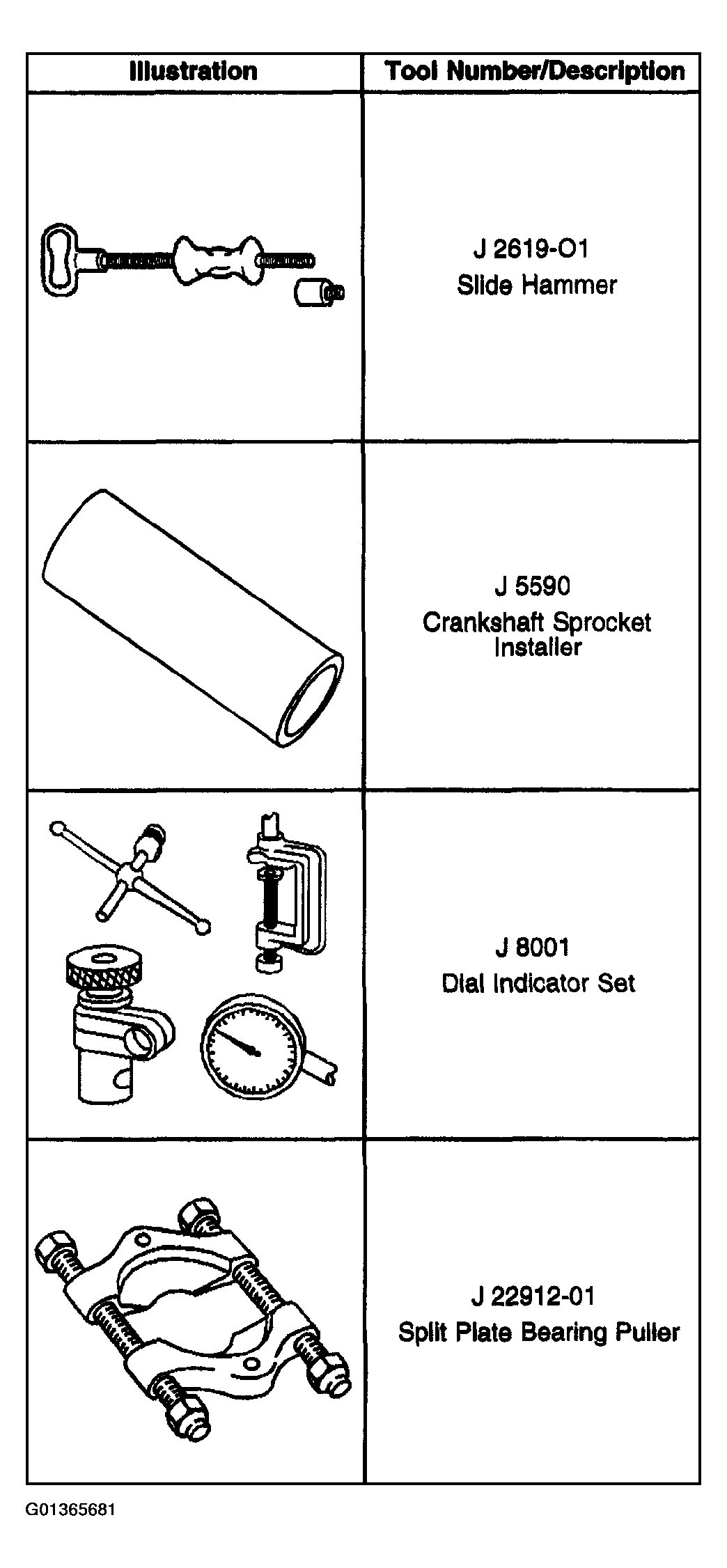

Fig 3: Special Tools & Equipment (3 Of 4)
Courtesy of GENERAL MOTORS CORP.

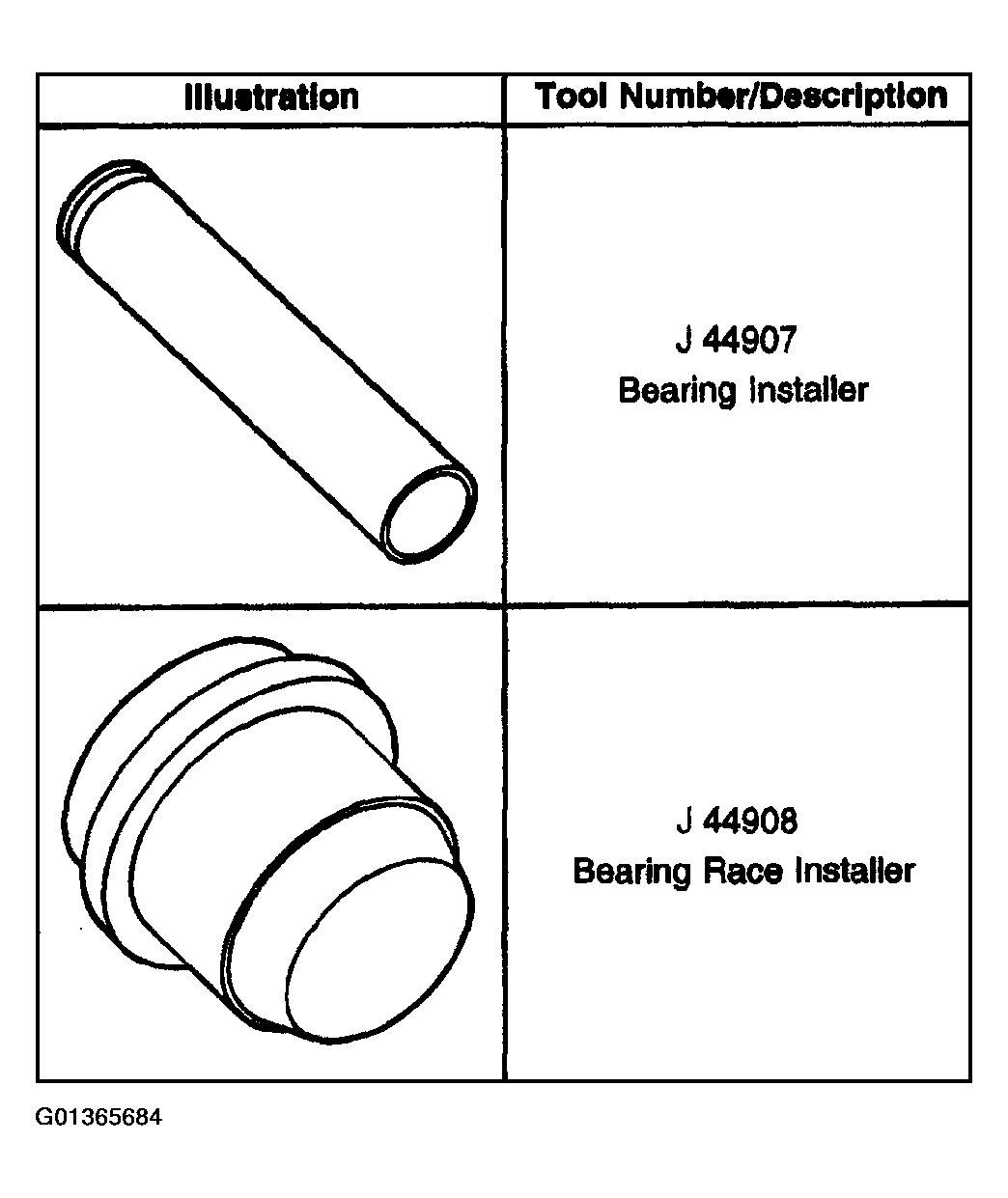

Fig 4: Special Tools & Equipment (4 Of 4)
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
