Home >> Pontiac >> 2003 >> Aztek AWD >> Repair and Diagnosis >> Steering >> Steering Wheel & Steering Column >> Repair Instructions >> Tilt Lever Replacement >> Removal Procedure

Removal Procedure

  1. Disable the SIR system. Refer to DISABLING & ACTIVATING AIR BAG SYSTEM .
  2. Remove the lower trim cover. Refer to STEERING COLUMN TRIM COVERS REPLACEMENT  .
  3. Remove the tilt lever spring.
  4. Remove the retaining bolt from the tilt lever.
  5. Remove the tilt lever.

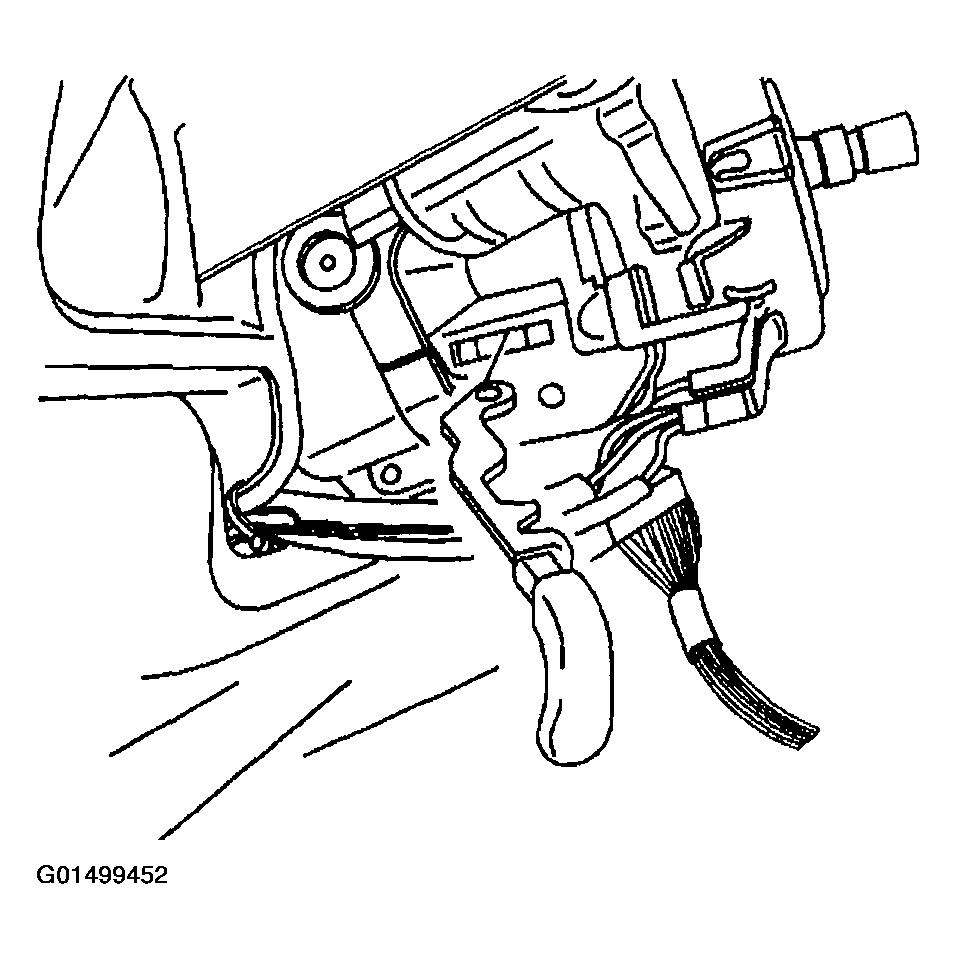

    Fig 1: Removing Tilt Lever
    G01499452Courtesy of GENERAL MOTORS CORP.
