Vehicle Speed Sensor Connector End View - Wiring Harness Side

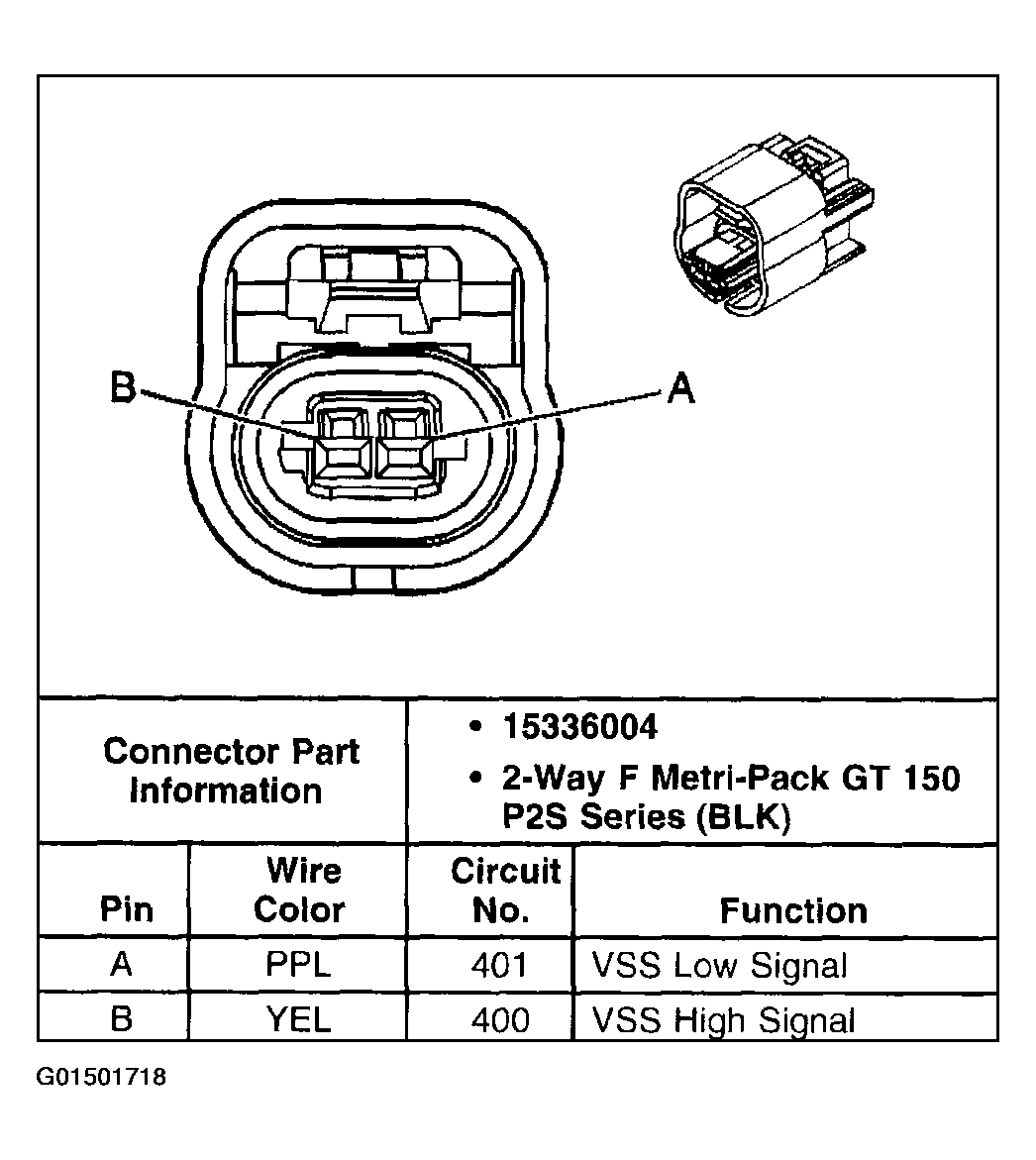

Fig 1: Vehicle Speed Sensor Connector - Wiring Harness Side

G01501718

Courtesy of GENERAL MOTORS CORP.
