Liftgate Lock Actuator Connector End View (Buick)

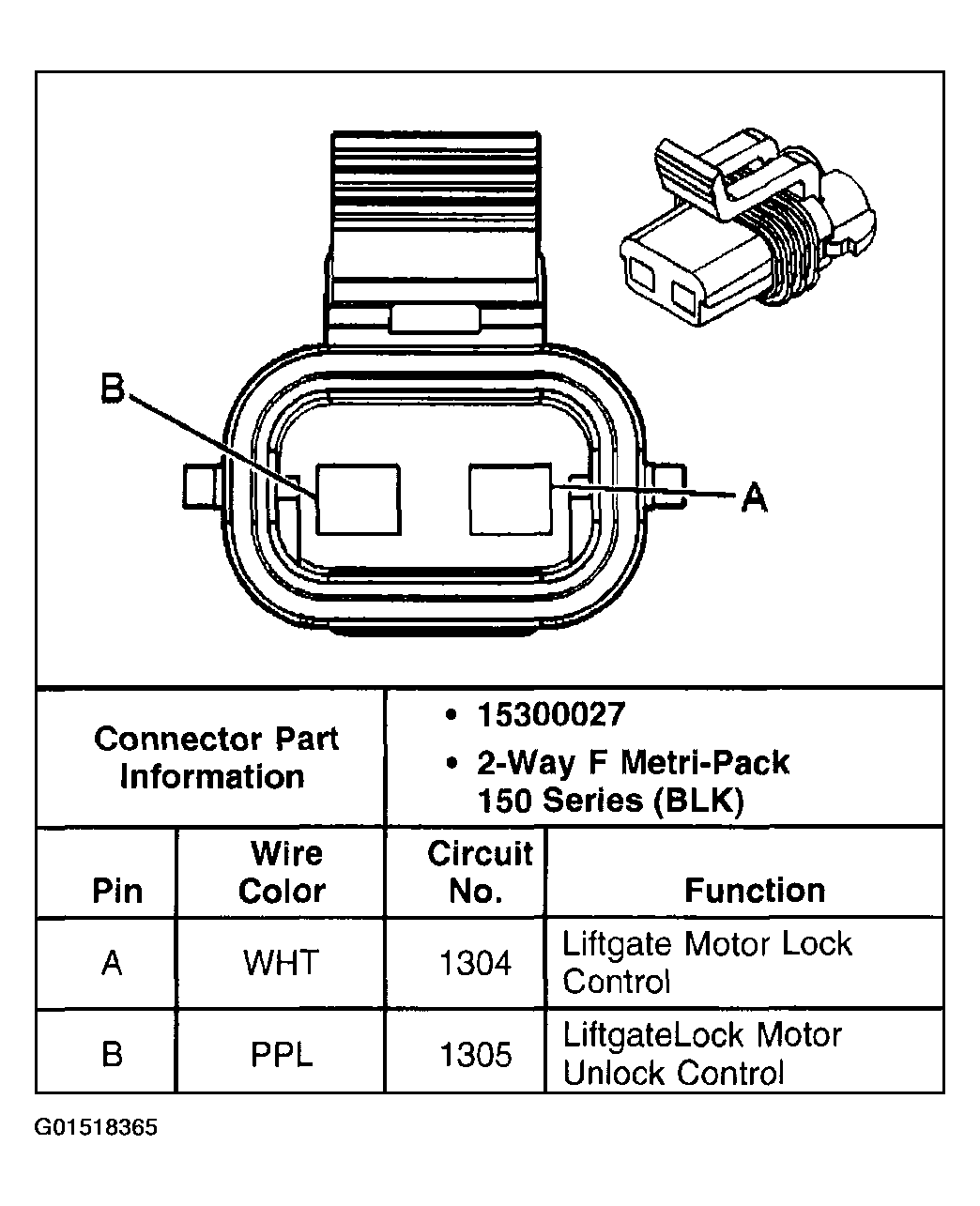

Fig 1: Liftgate Lock Actuator (Buick)

G01518365

Courtesy of GENERAL MOTORS CORP.
