Garage Door Opener Connector End View

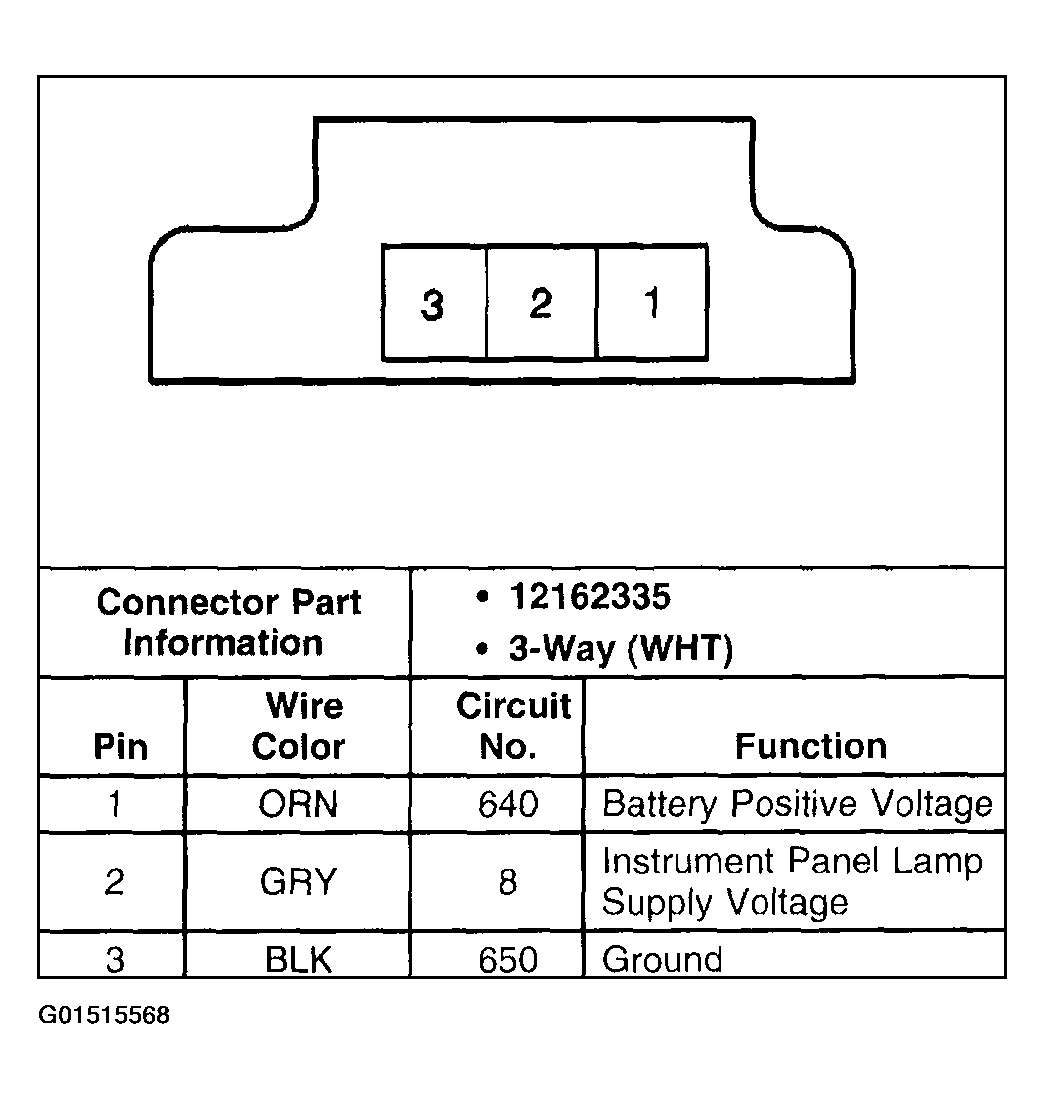

Fig 1: Garage Door Opener

G01515568

Courtesy of GENERAL MOTORS CORP.
