Scan Tool Data List

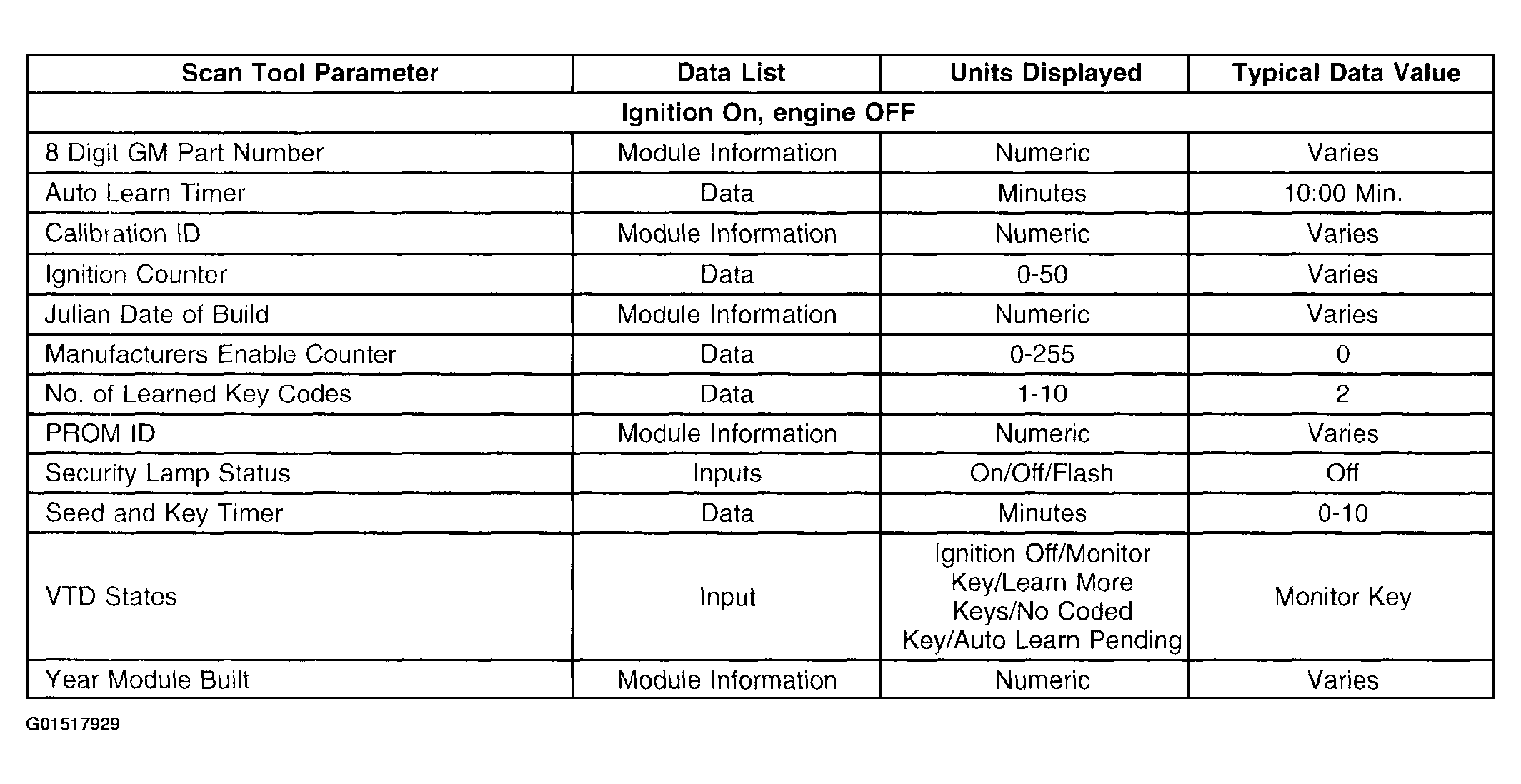

Fig 1: Scan Tool Data List - Body Control Module (BCM)
Courtesy of GENERAL MOTORS CORP.

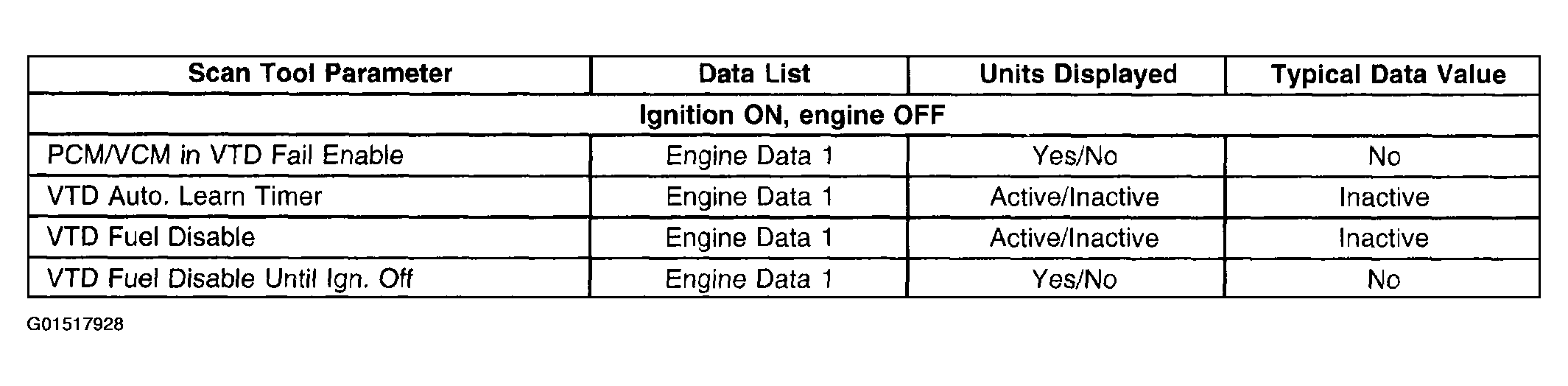

Fig 2: Scan Tool Data List - Powertrain Control Module (PCM)
Courtesy of GENERAL MOTORS CORP.

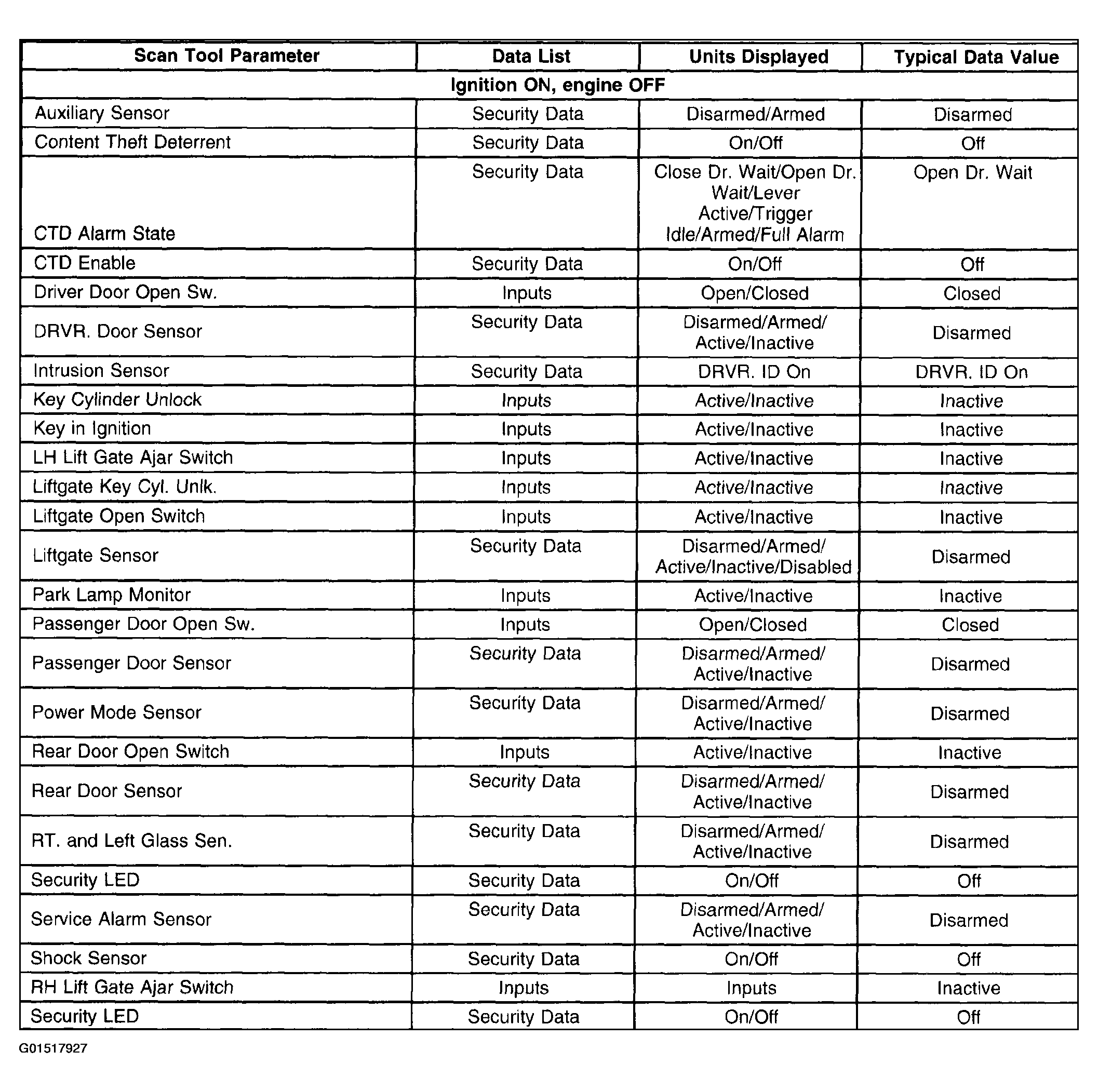

Fig 3: Scan Tool Data List - Vehicle Theft Deterrent
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
