Manual Transmission Connector End Views

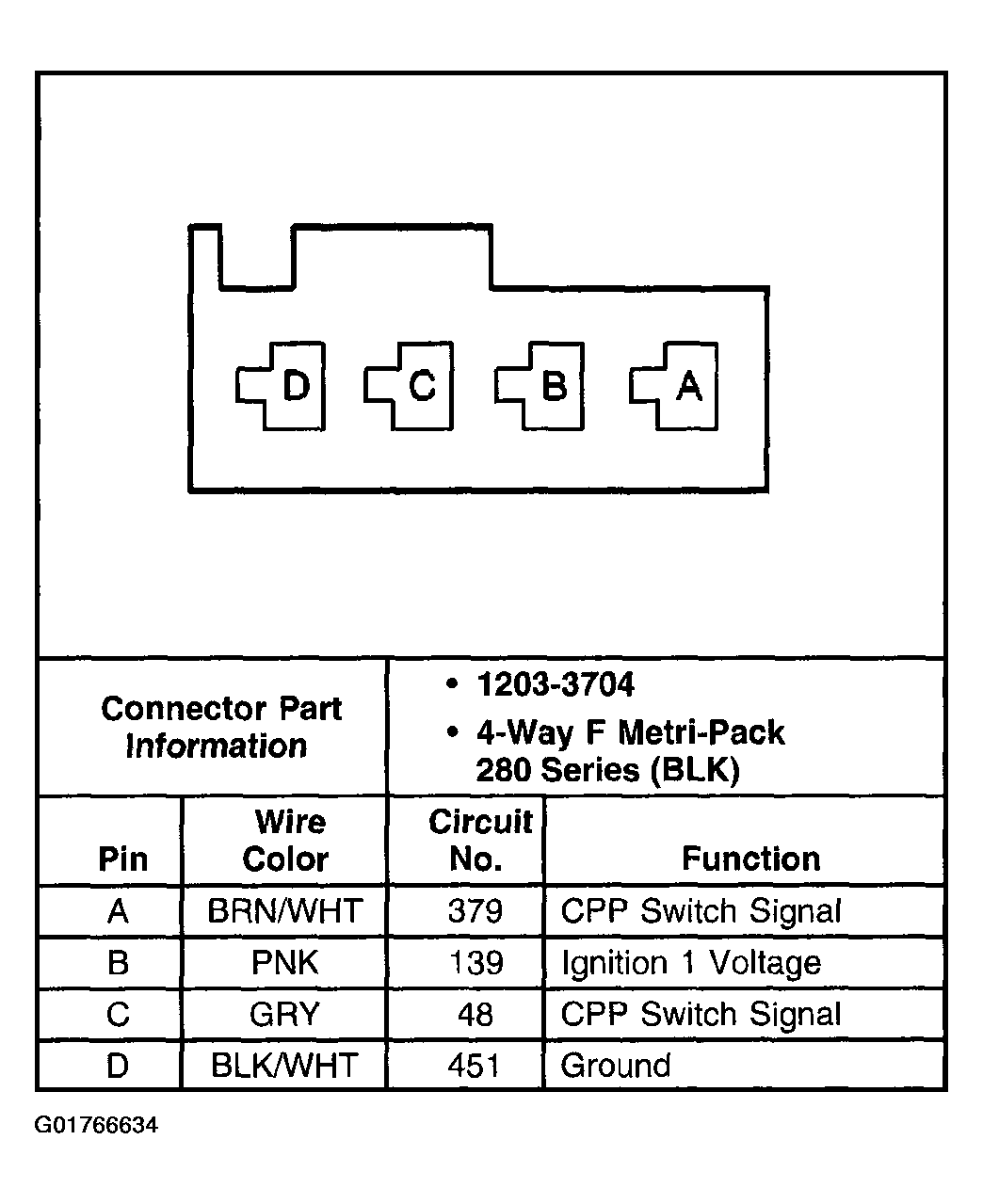

Fig 1: Clutch Pedal Position (CPP) Switch

Courtesy of GENERAL MOTORS CORP.

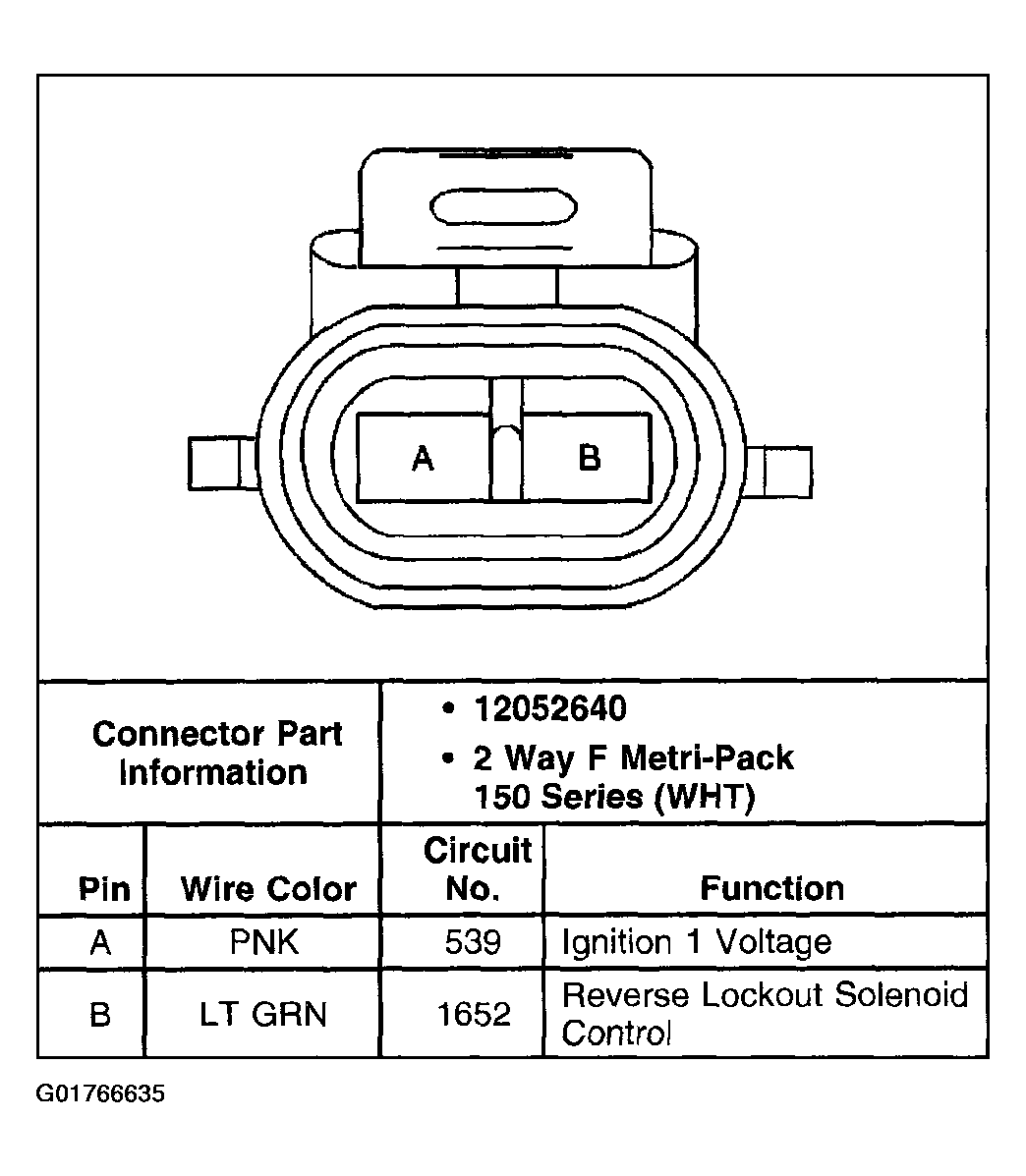

Fig 2: Reverse Lockout Solenoid

Courtesy of GENERAL MOTORS CORP.

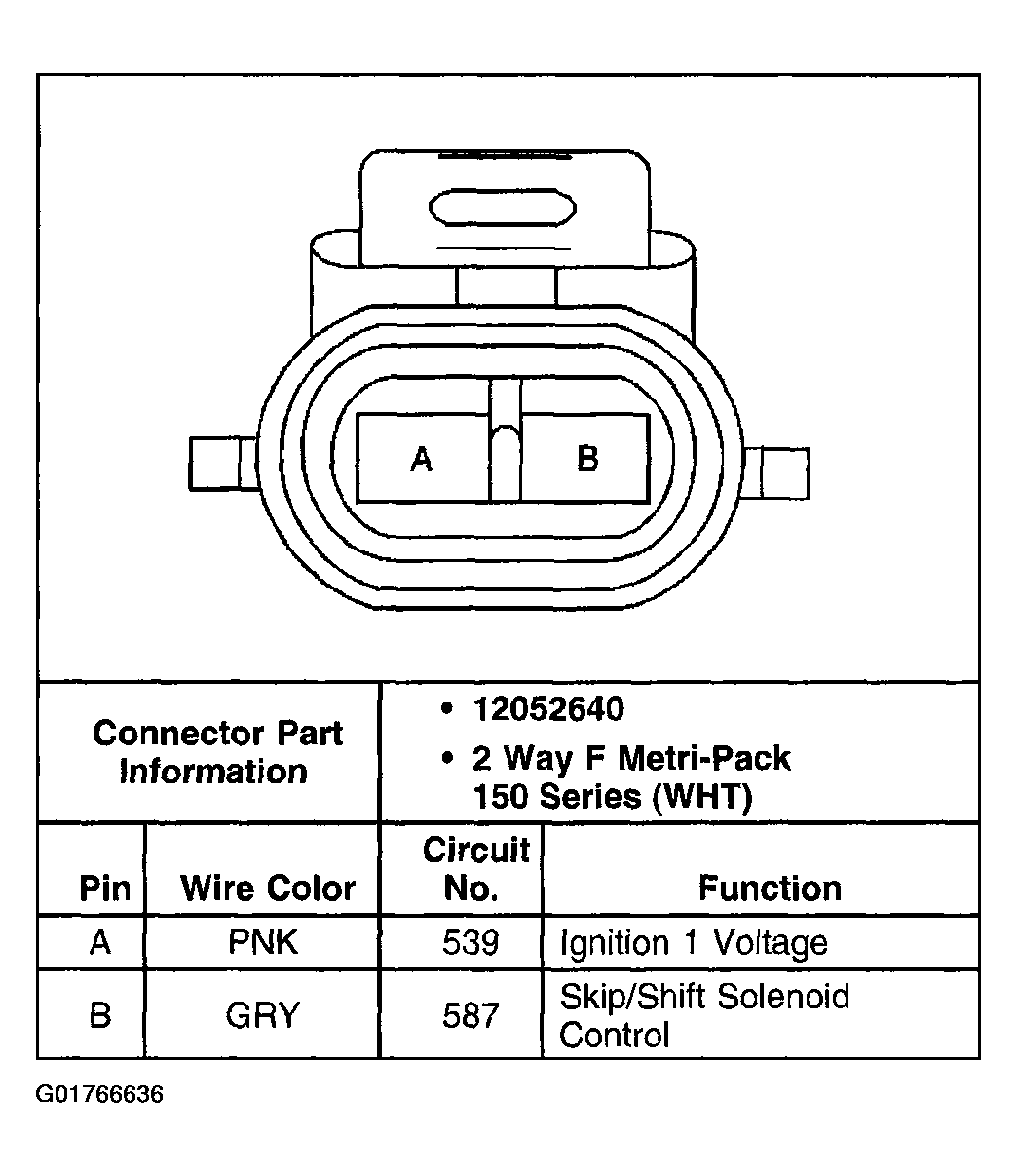

Fig 3: Skip Shift Solenoid

Courtesy of GENERAL MOTORS CORP.

Fig 4: Vehicle Speed Sensor

Courtesy of GENERAL MOTORS CORP.
