Removal Procedure

  1. Remove the lock rod knob (3) from the lock rod (2).
  2. Pull the door inside handle open to access the bezel screws.

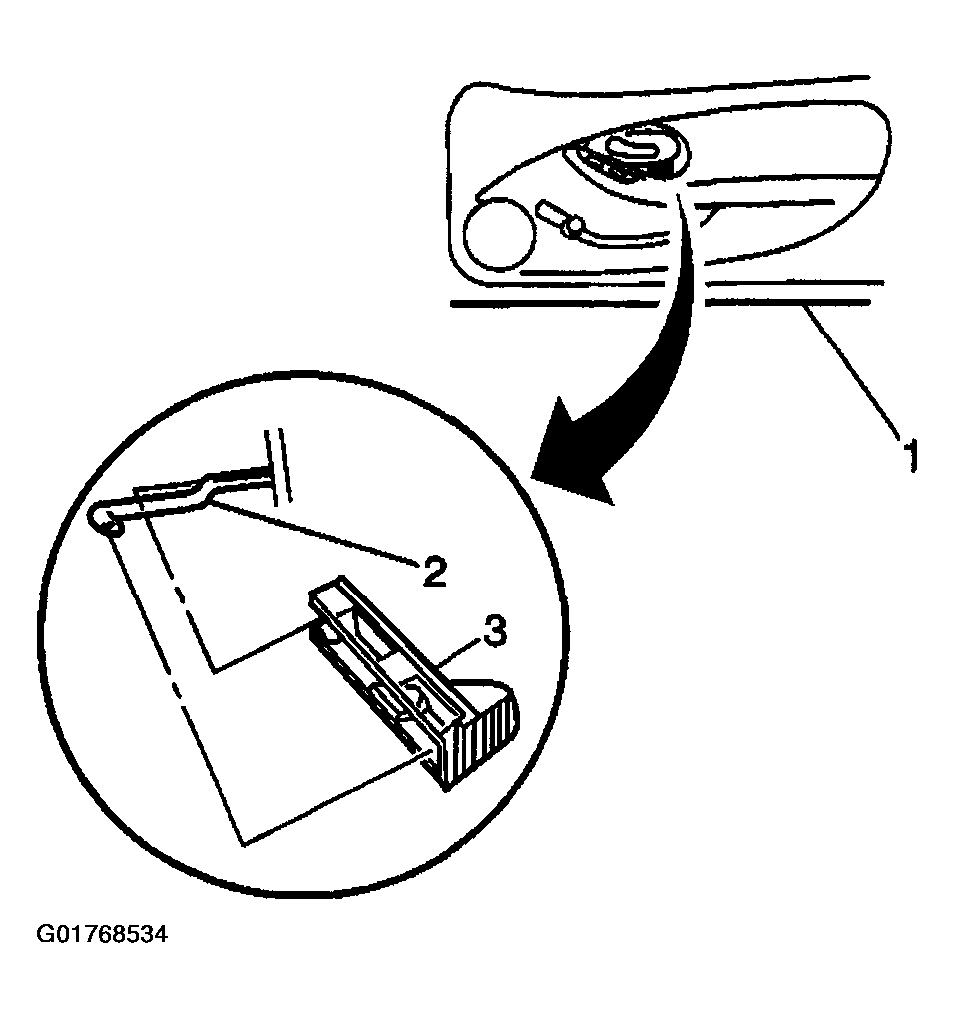

    Fig 1: Removing Lock Rod Knob From Lock Rod
    G01768534Courtesy of GENERAL MOTORS CORP.
  3. Remove the inside handle bezel screw (Pontiac only).

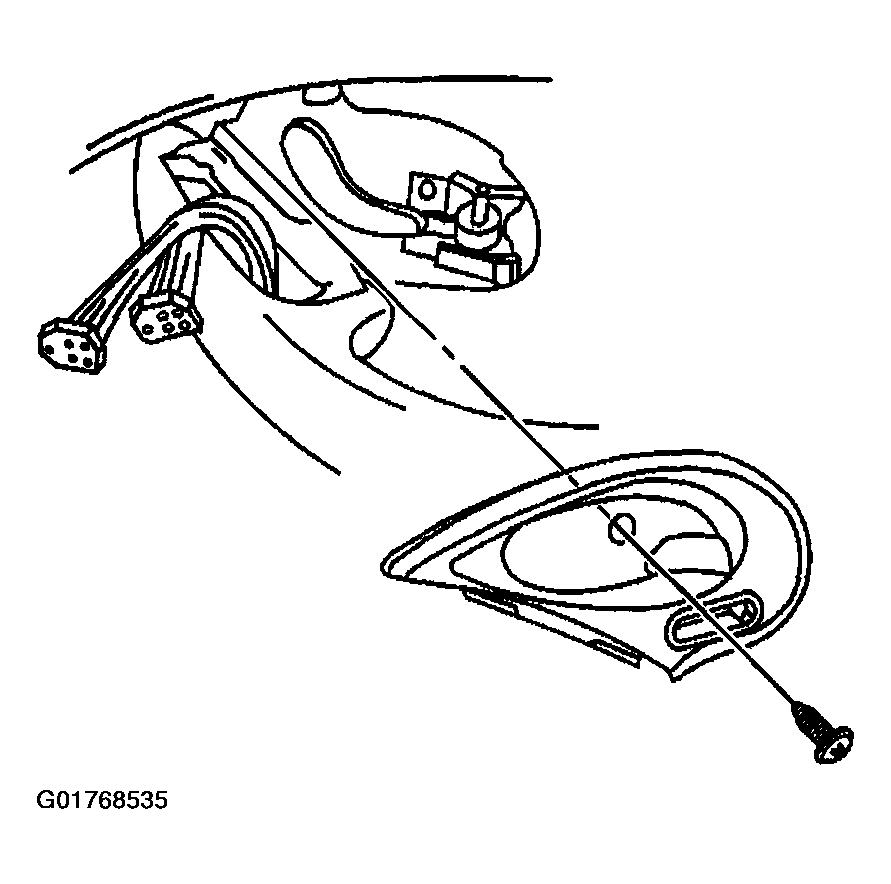

    Fig 2: Removing Inside Handle Bezel Screw (Pontiac Only)
    G01768535Courtesy of GENERAL MOTORS CORP.
  4. Remove the switch plate panel (Chevrolet only).
  5. Remove the inside handle bezel screws (Chevrolet only).
  6. Unsnap the bezel from the door trim panel.
  7. Disconnect the light bulb from the rear of the bezel.
  8. Remove the inside door handle bezel from the vehicle.

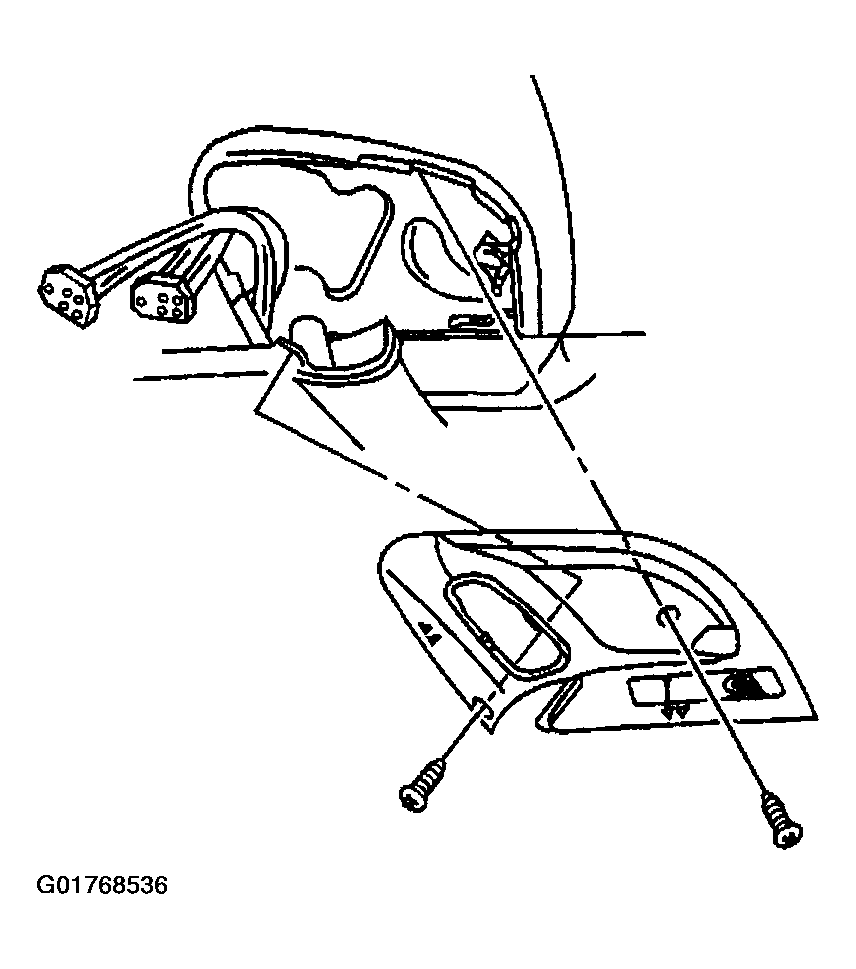

    Fig 3: Removing Inside Handle Bezel Screws (Chevrolet Only)
    G01768536Courtesy of GENERAL MOTORS CORP.
