Air Compressor Leak Test

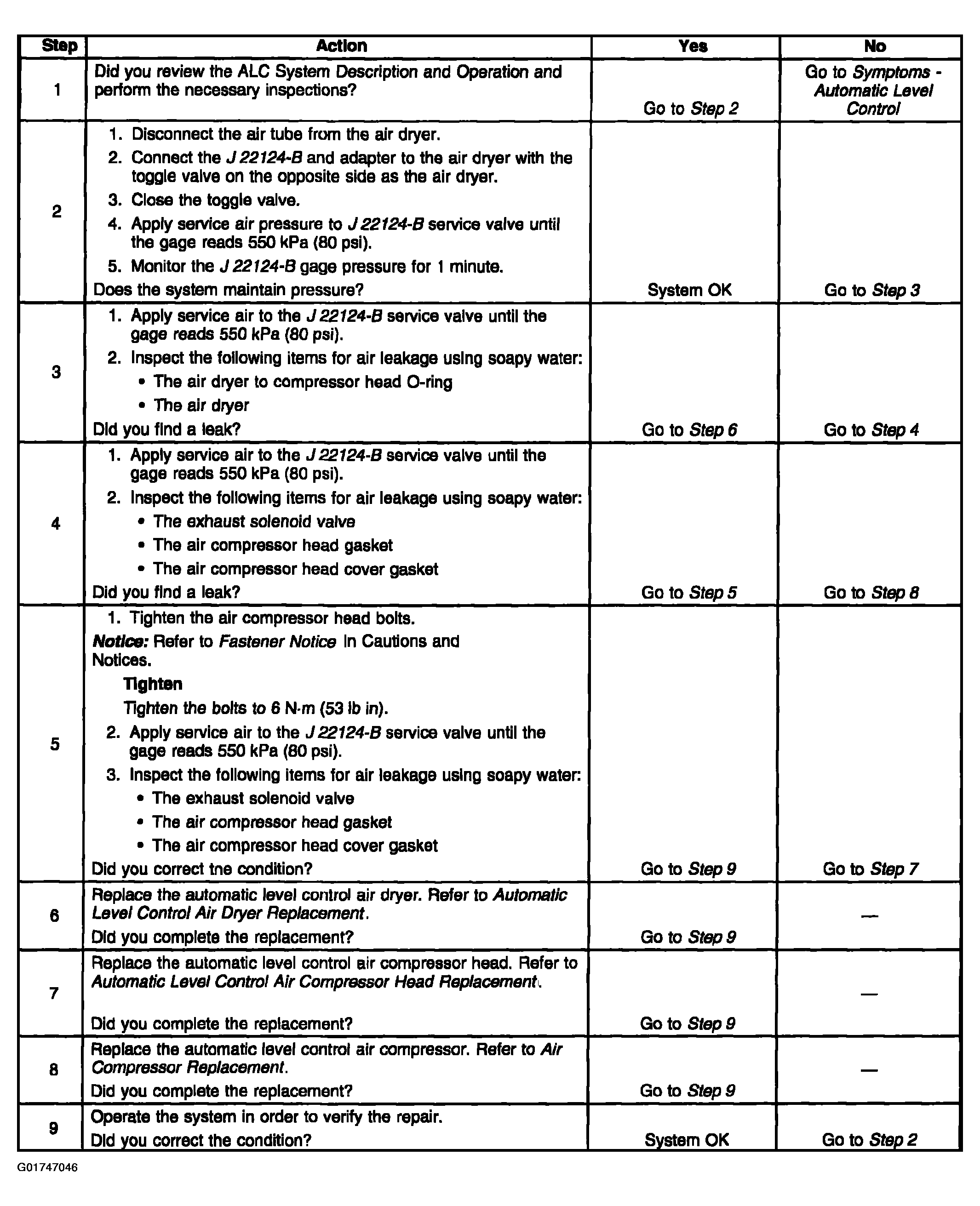

Fig 1: Air Compressor Leak Test

G01747046

Courtesy of GENERAL MOTORS CORP.
