Ambient Air Temperature Sensor (UH9/CJ2) Connector End View

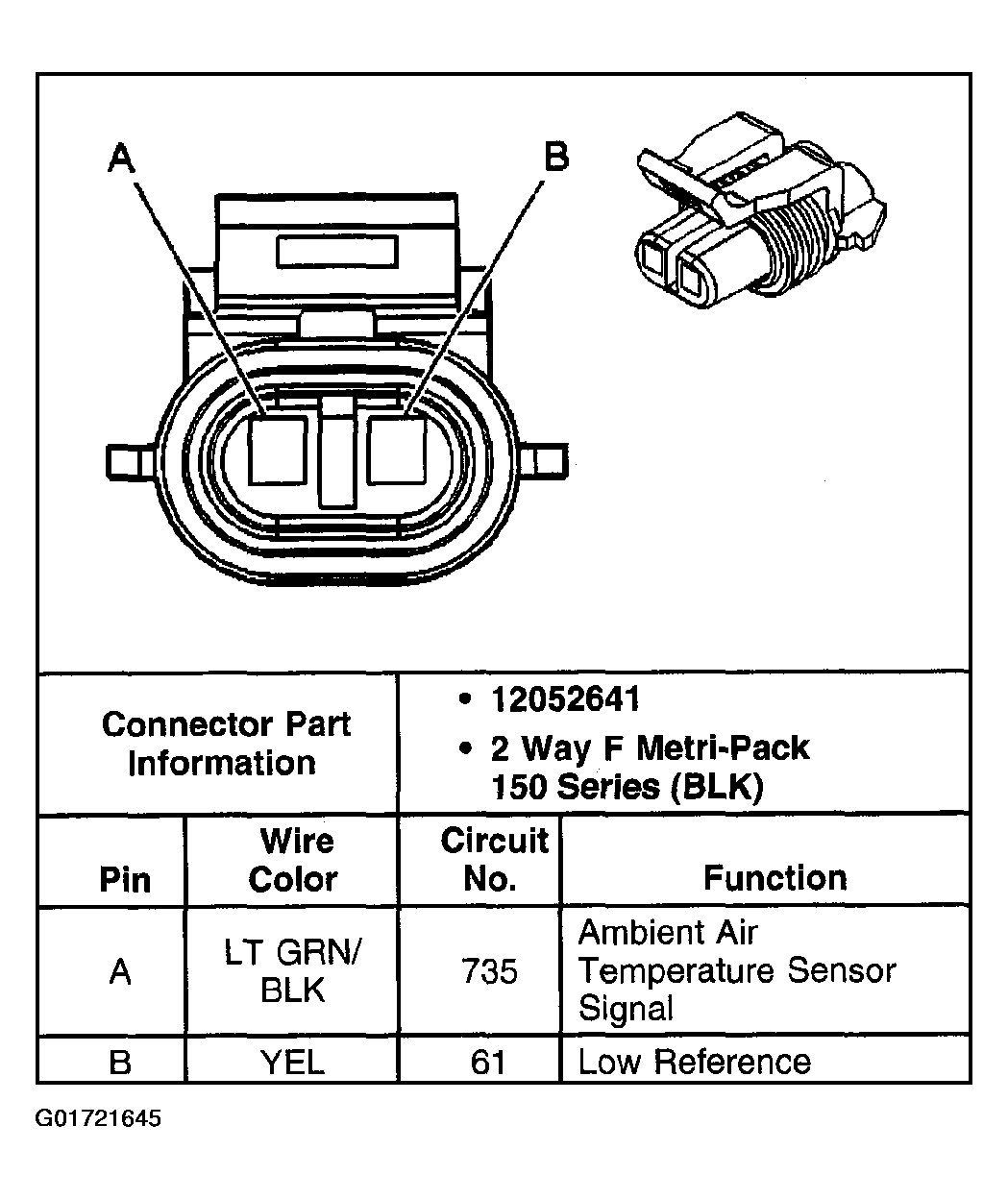

Fig 1: Ambient Air Temperature Sensor (UH9/CJ2) Connector End View

G01721645

Courtesy of GENERAL MOTORS CORP.
