Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Sierra, 2002 GMC Cab & Chassis Sierra, 2002 Chevrolet Silverado, and 2002 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the steering wheel. Refer to Steering Wheel Replacement .
  2. Remove the horn switch from the steering wheel.

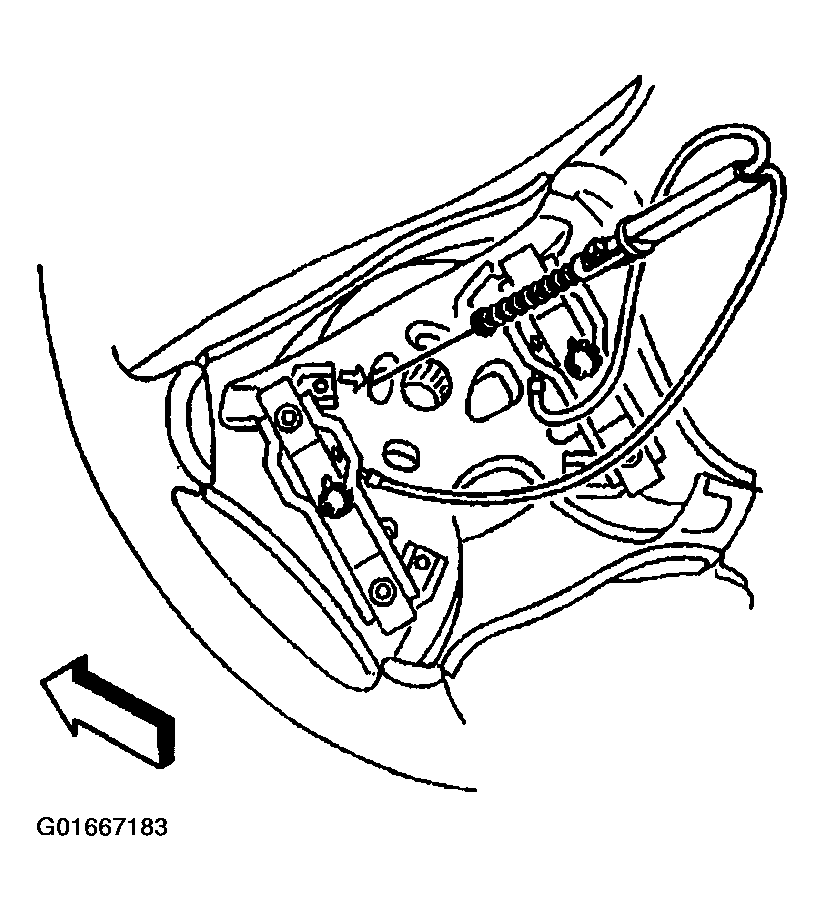

    Fig 1: Horn Switch
    G01667183Courtesy of GENERAL MOTORS CORP.
  3. Remove the steering wheel shroud retaining screws from the back of the steering wheel.
  4. Remove the steering wheel shroud from the steering wheel.

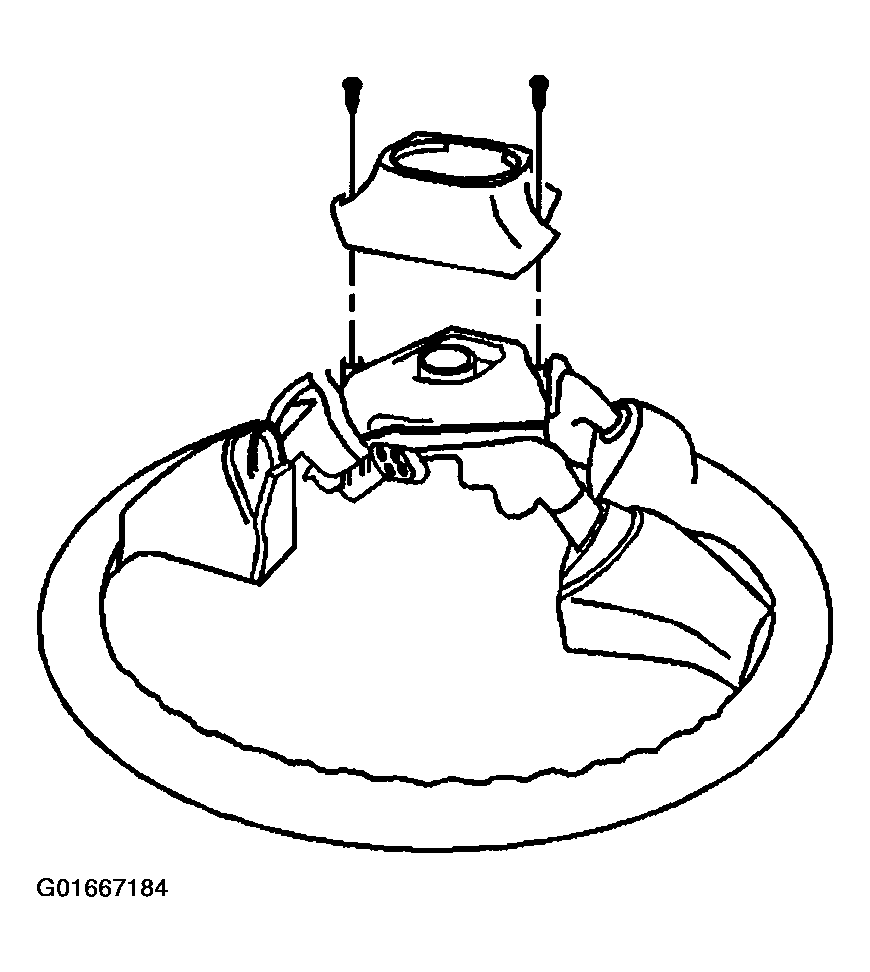

    Fig 2: Steering Wheel Shroud
    G01667184Courtesy of GENERAL MOTORS CORP.
  5. Remove the steering wheel control switch mounting screws.

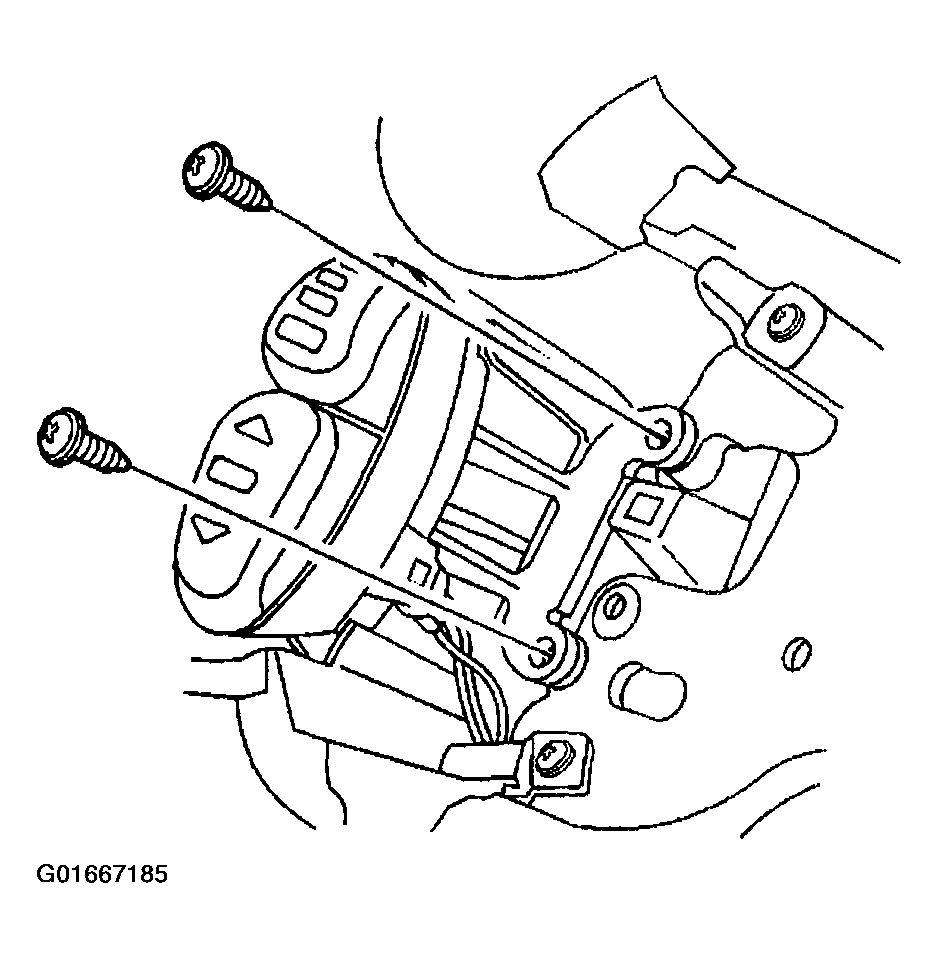

    Fig 3: Steering Wheel Control Switch Mounting Screws
    G01667185Courtesy of GENERAL MOTORS CORP.
  6. Disconnect the steering wheel control switch (2) electrical connector (1).

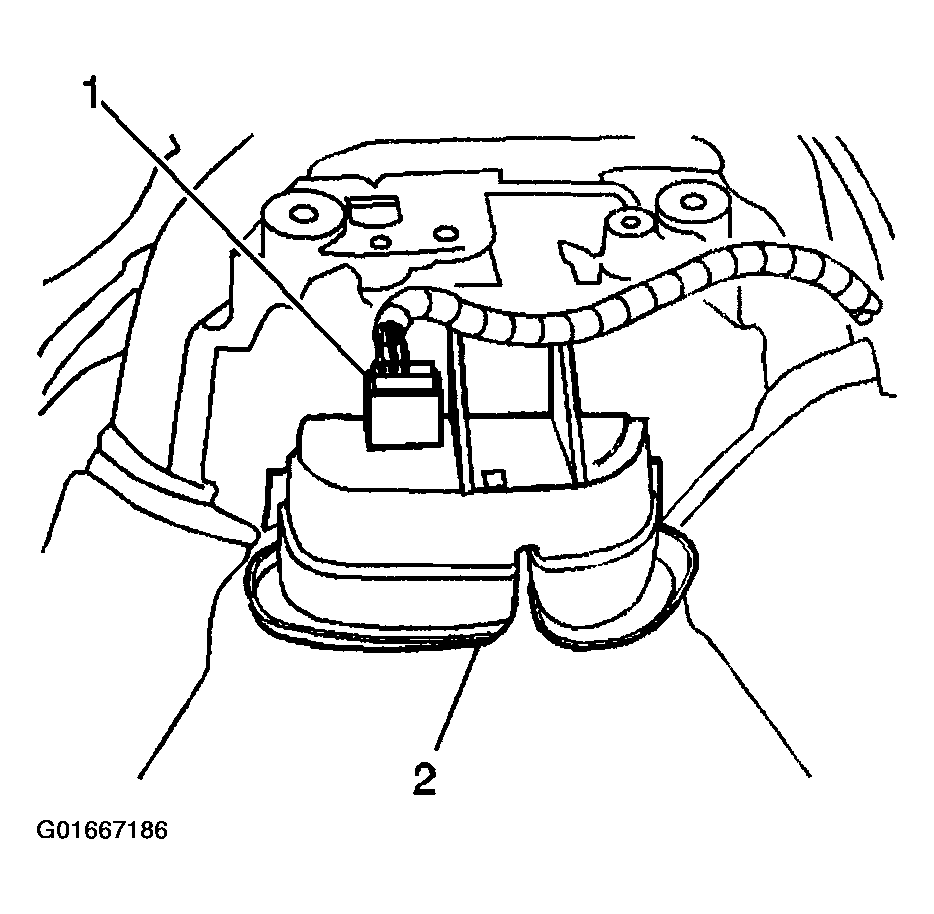

    Fig 4: Steering Wheel Control Switch Electrical Connector
    G01667186Courtesy of GENERAL MOTORS CORP.
  7. Remove the steering wheel control switch from the steering wheel.

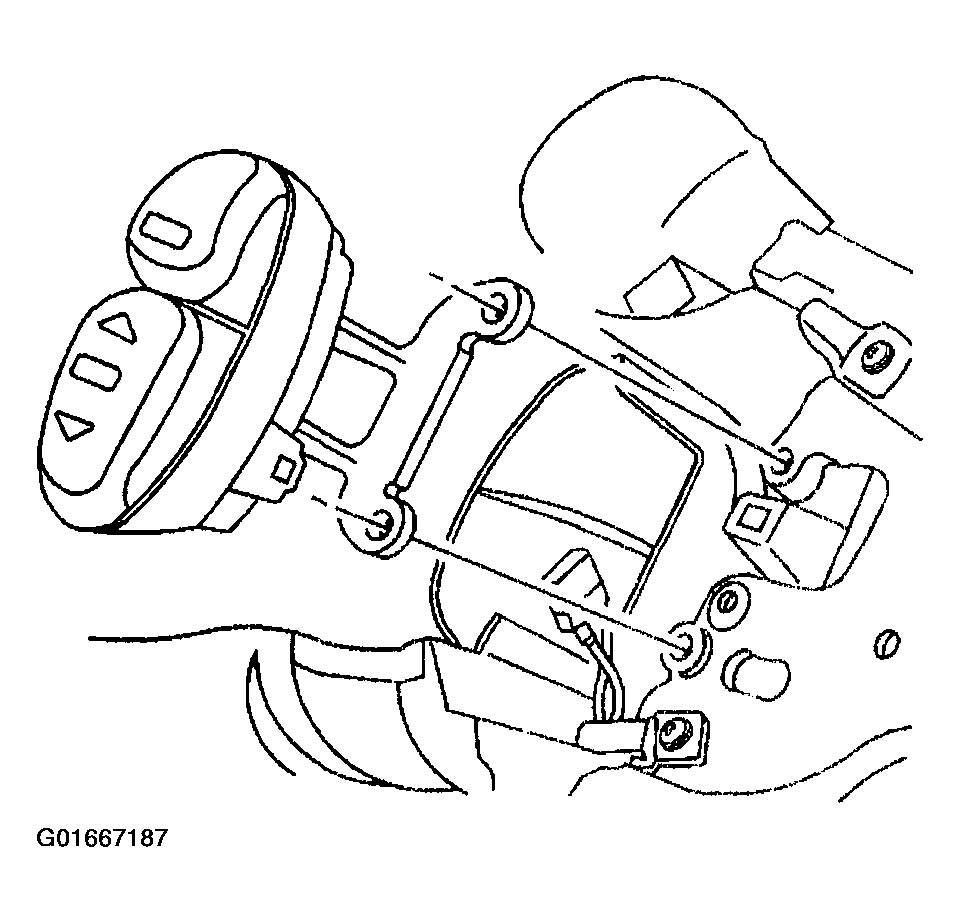

    Fig 5: Steering Wheel Control Switch
    G01667187Courtesy of GENERAL MOTORS CORP.
