Installation Procedure

WARNING: This page is about a different car, the 2002 Pontiac Aztek and 2002 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the endgate support cable to the endgate.
    NOTE: Refer to FASTENER NOTICE .
  2. Install the bolts to the endgate support cable.

    Tighten

    Tighten the endgate support cable bolts to 3 N.m (27 lb in).

  3. Remove the support from the endgate.
  4. Close the endgate.

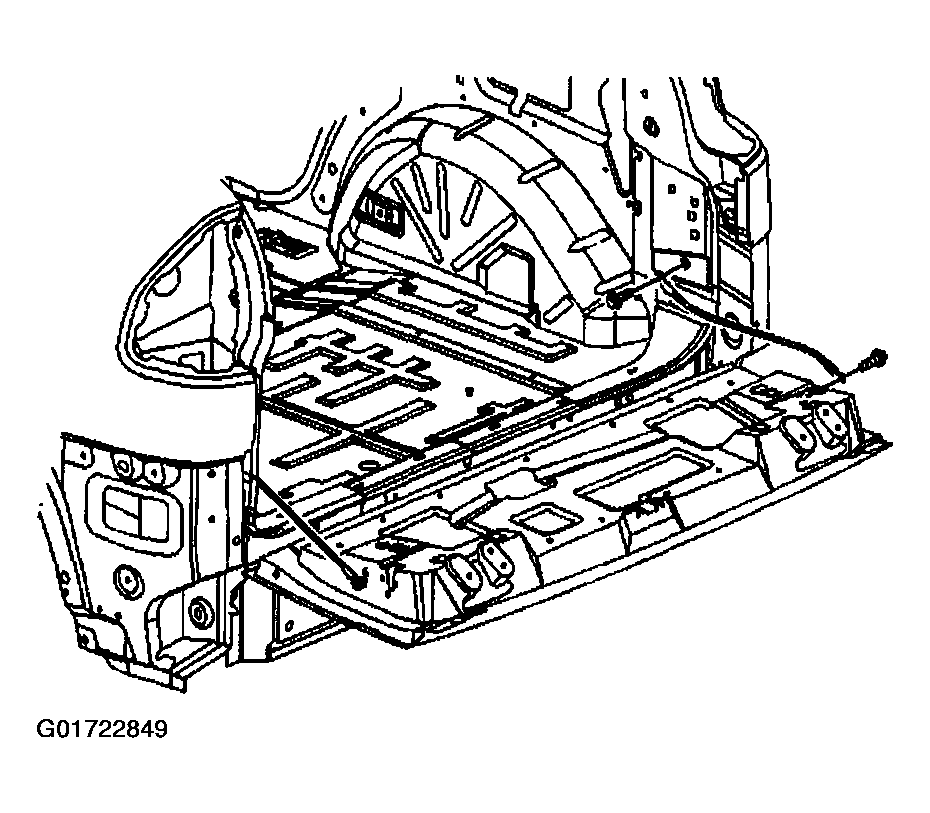

    Fig 1: Installing Endgate Support Cable Bolts
    G01722849Courtesy of GENERAL MOTORS CORP.
