Instrument Panel Fuse Block

NOTE: Instrument panel fuse block is located under driver's side of instrument panel. See Fig 1 .

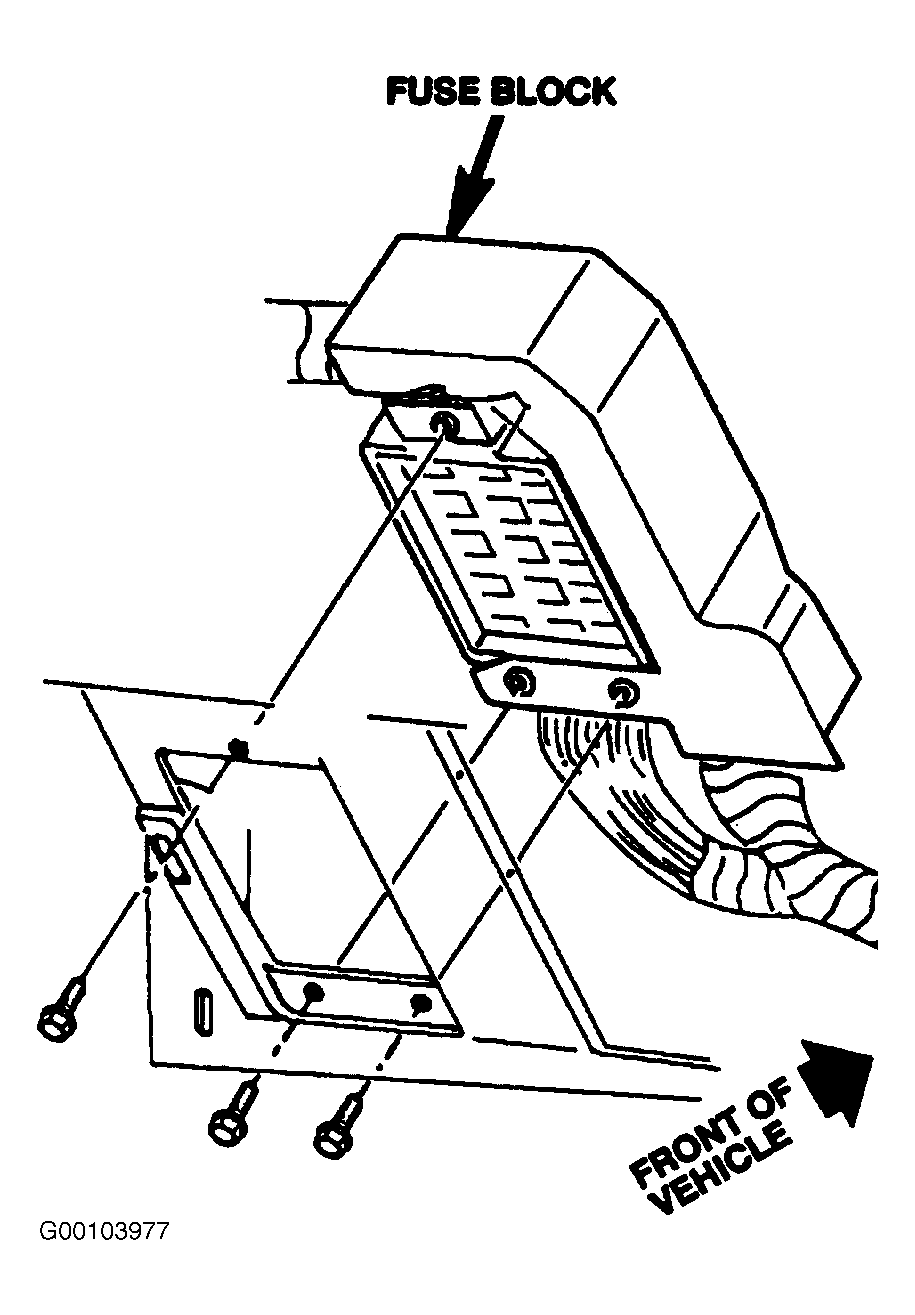

Fig 1: Locating Instrument Panel Fuse Block
G00103977Courtesy of GENERAL MOTORS CORP.

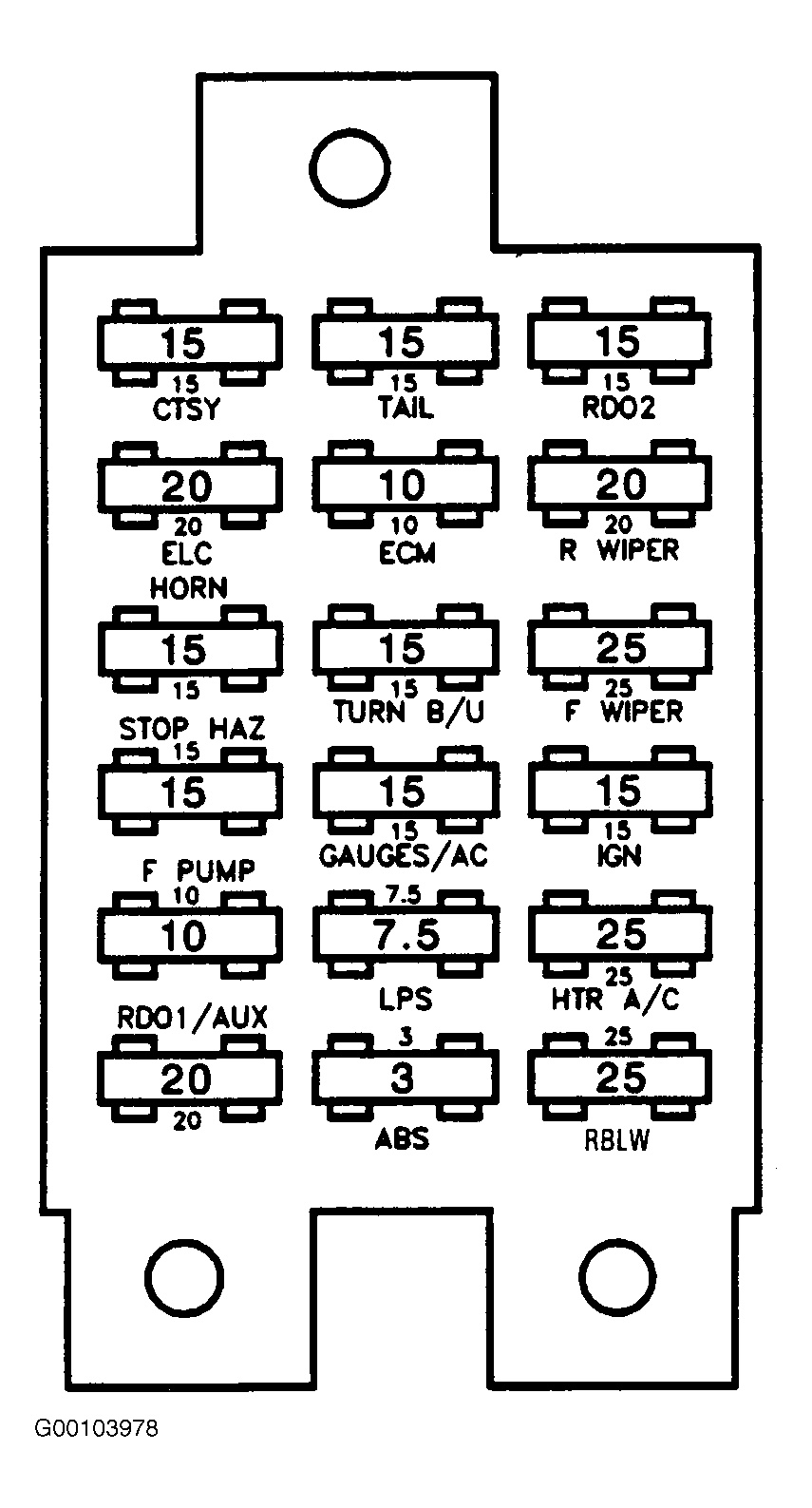

Fig 2: Identifying Instrument Panel Fuse Block Components
G00103978Courtesy of GENERAL MOTORS CORP.

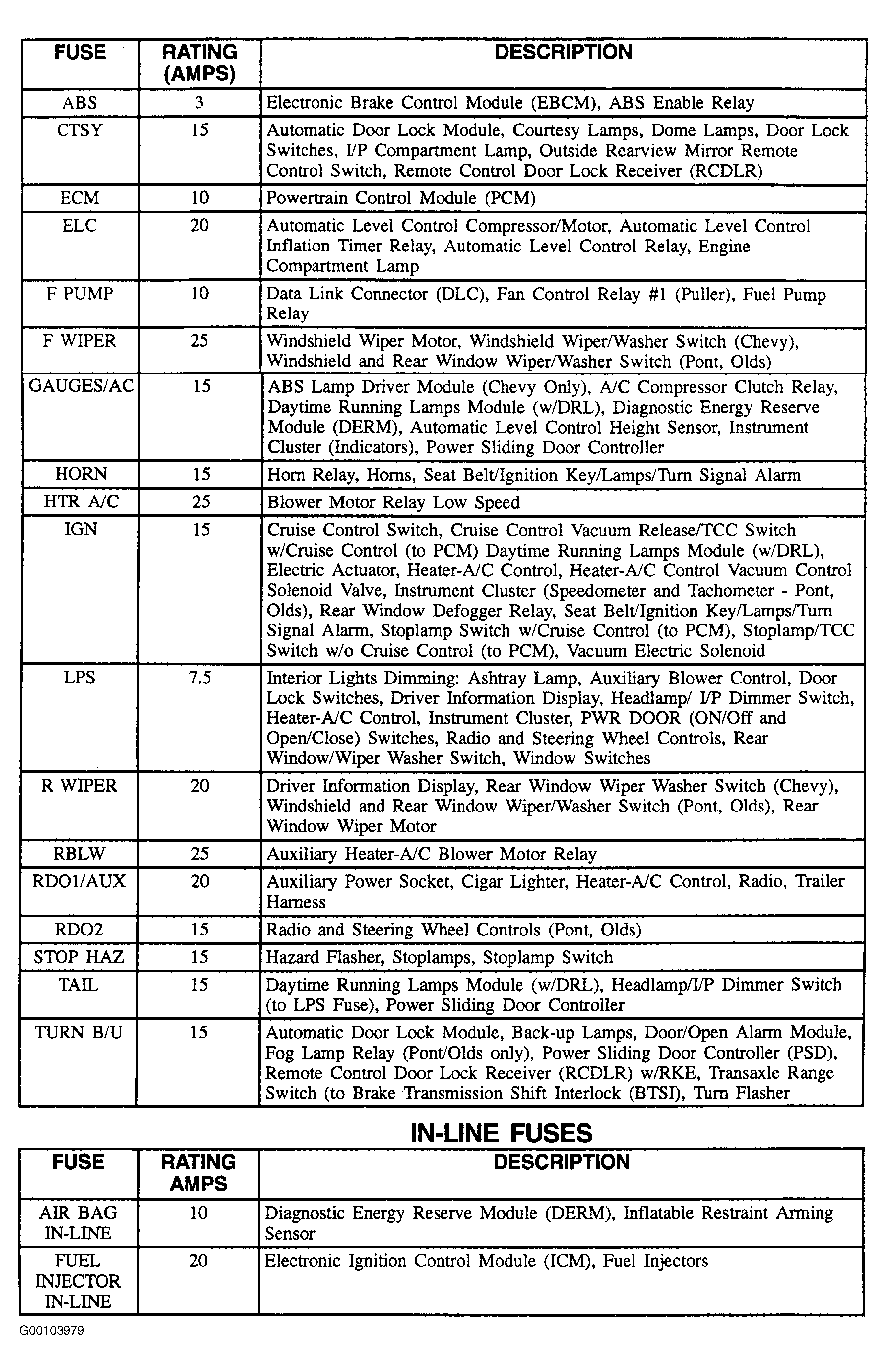

Fig 3: Instrument Panel Fuse Block Legend
G00103979Courtesy of GENERAL MOTORS CORP.
