Data Link Communications System
>>
Connector Identification
Connector Identification

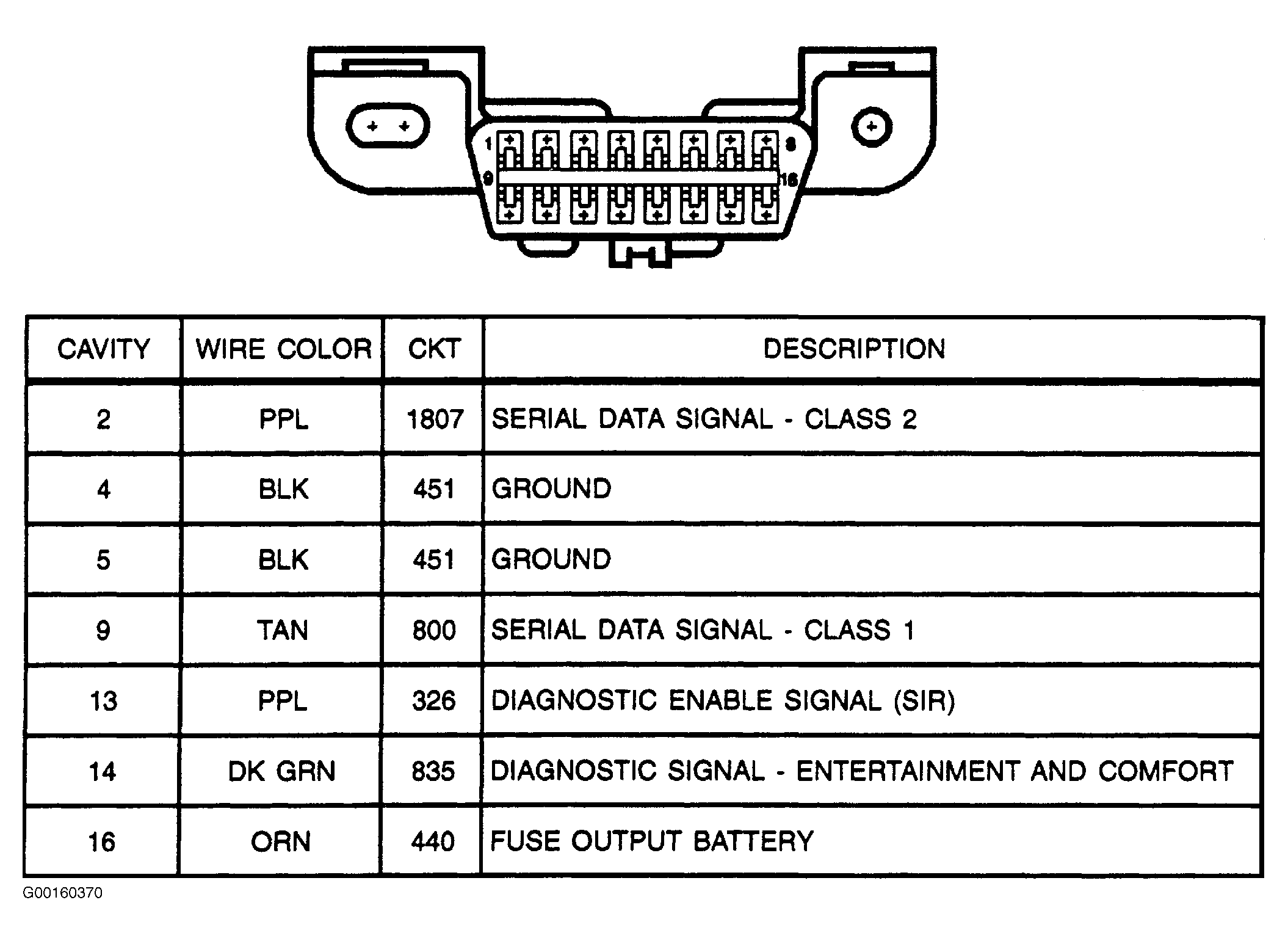

Fig 1: Identifying DLC Terminals
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
