Instrument Panel Fuse Block

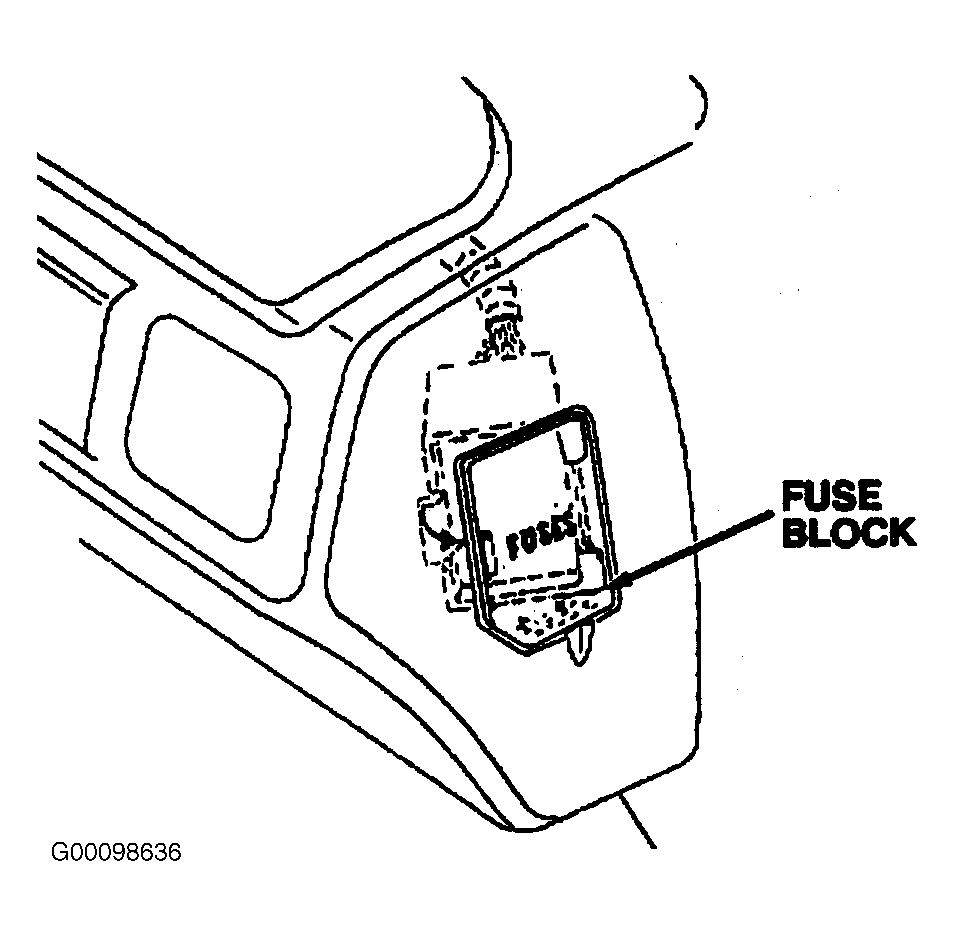

Fig 1: Locating Instrument Panel Fuse Block
G00098636Courtesy of GENERAL MOTORS CORP.

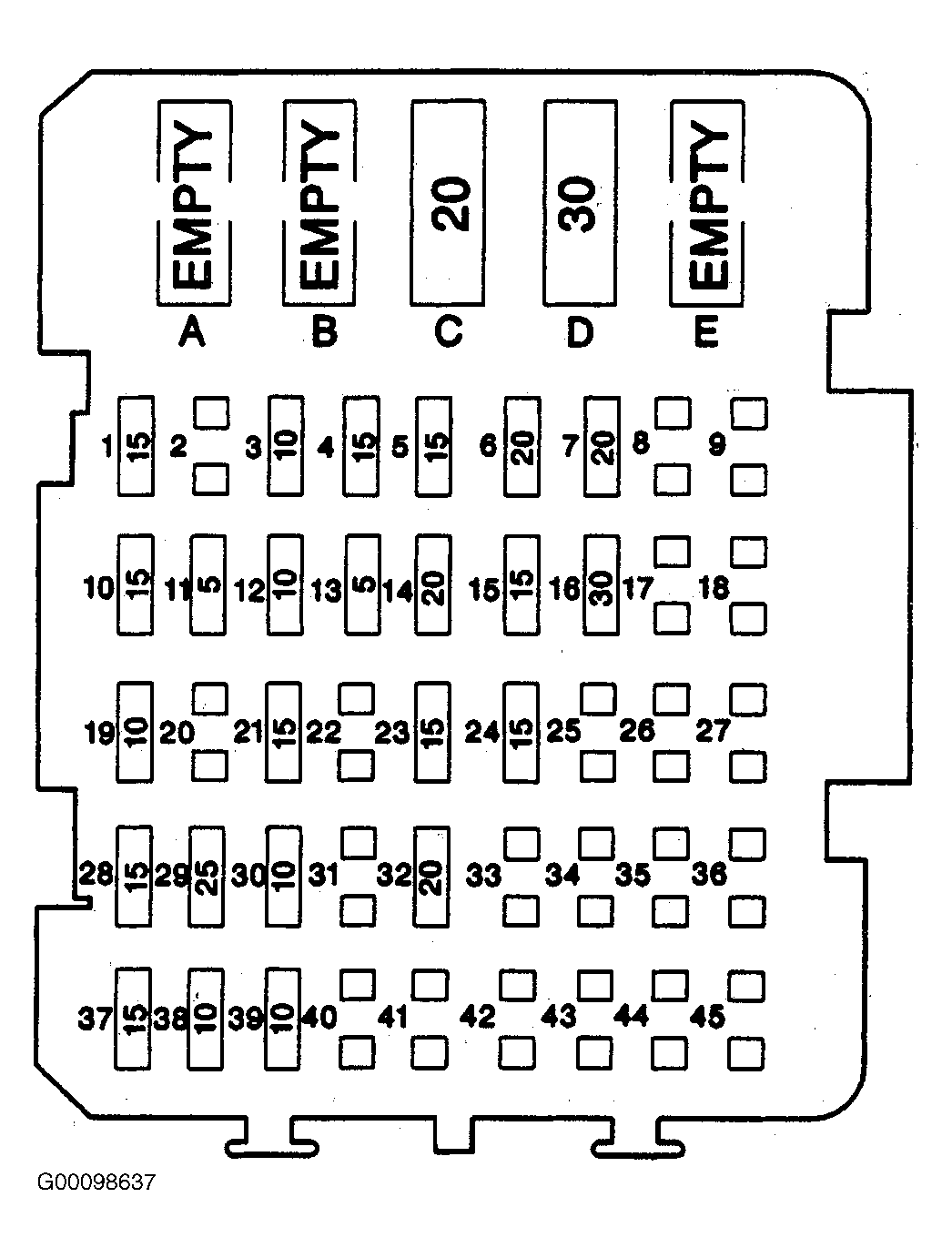

Fig 2: Identifying Instrument Panel Fuse Block
G00098637Courtesy of GENERAL MOTORS CORP.

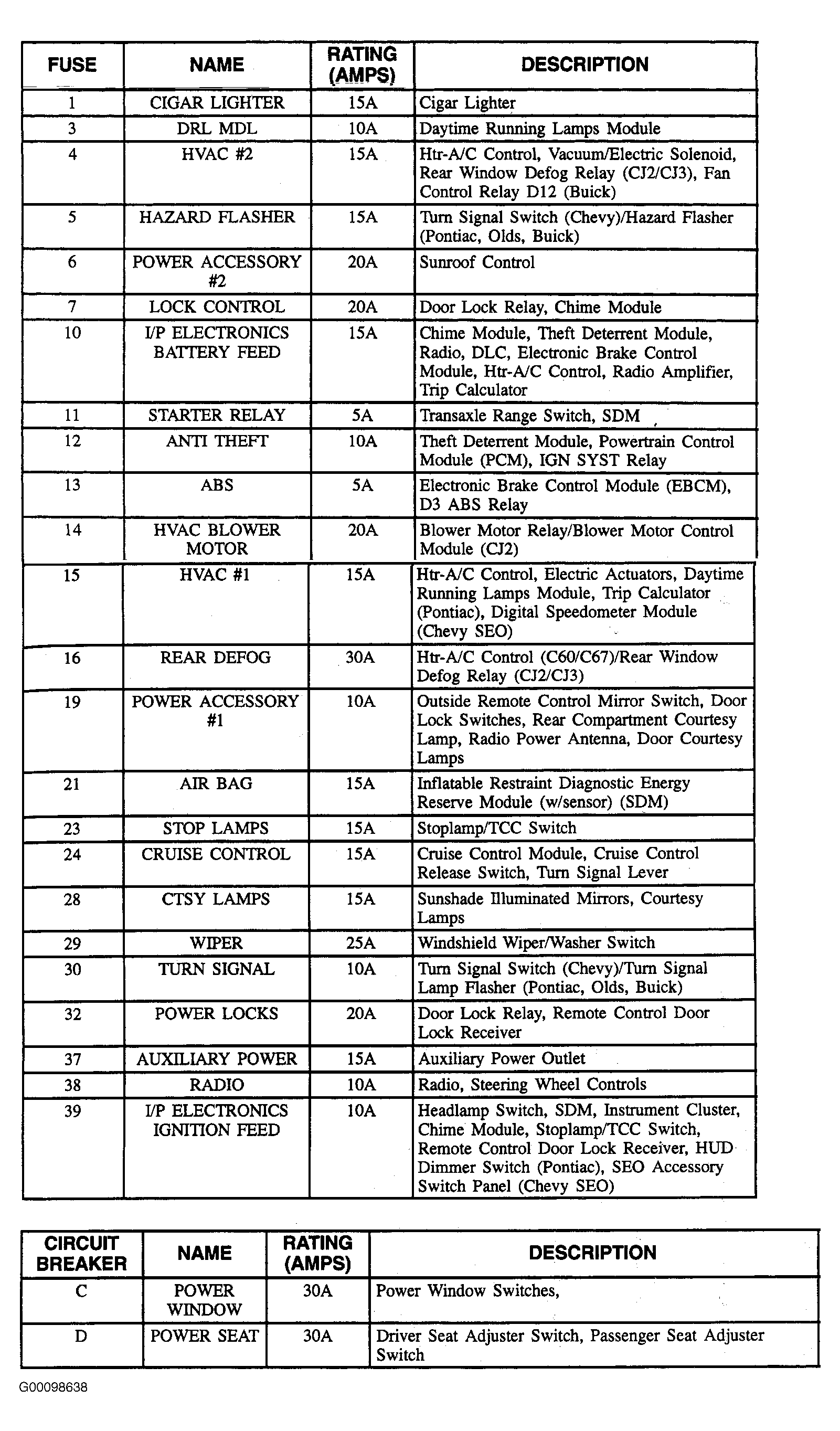

Fig 3: Identifying Instrument Panel Fuse Block Fuses
G00098638Courtesy of GENERAL MOTORS CORP.
