Component Locations
COMPONENT LOCATIONS
| Component | Location |
|---|---|
| Data Link Connector (DLC) | Mounted To Instrument Panel Tie Bar, Lower Passenger Side Of Steering Column |

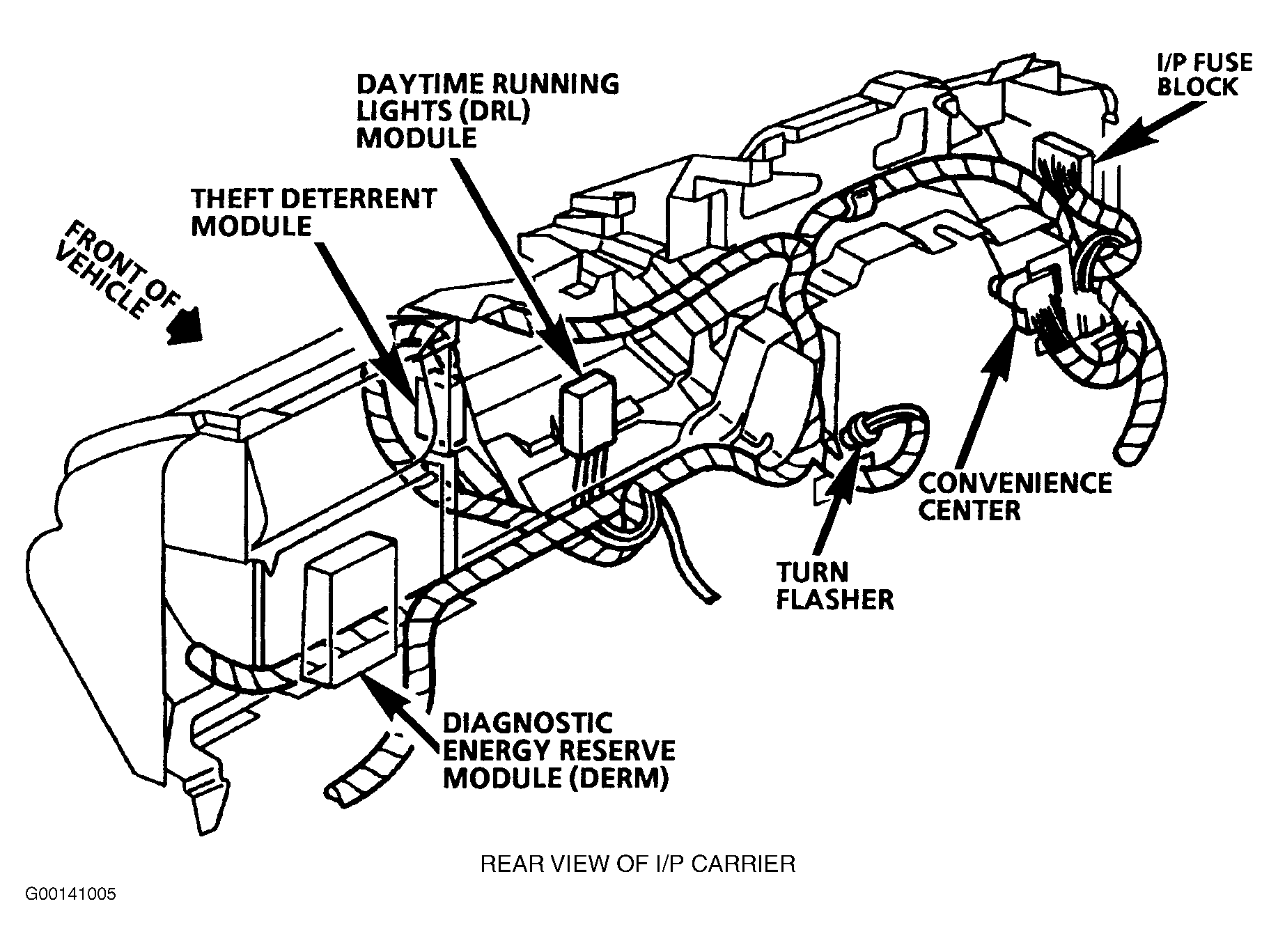

| Diagnostic Energy Reserve Module (DERM) | Behind Passenger Side Of Instrument Panel Compartment (Fig 1 ) |

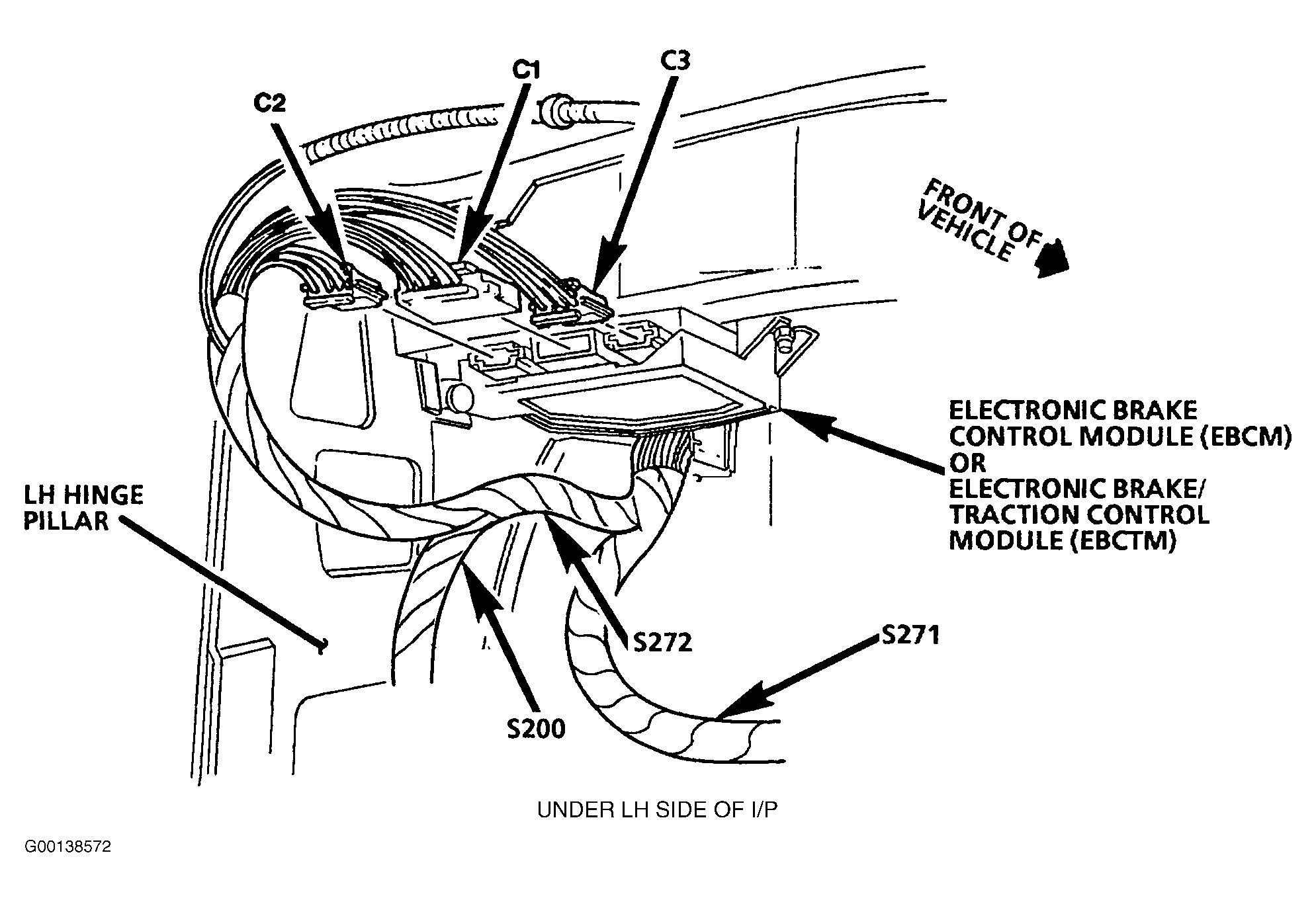

| Electronic Brake Control Module (EBCM) | Under Instrument Panel, Next To Driver Side Hinge Pillar Above Pass Through Grommet (Fig 2 ) |
| Electronic Brake/Traction Control Module (EBTCM) | Under Instrument Panel, Next To Driver Side Hinge Pillar Above Pass Through Grommet (Fig 2 ) |

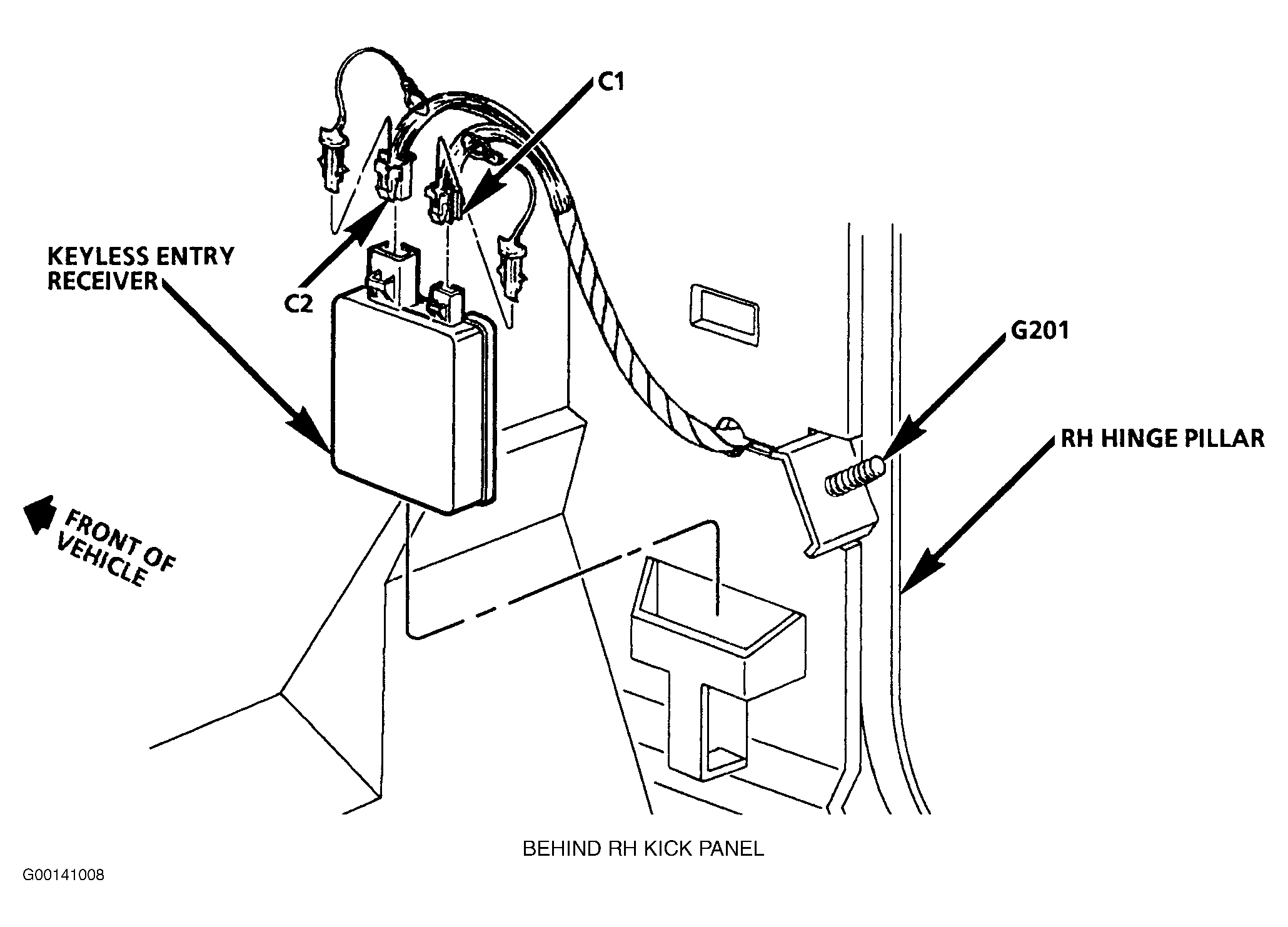

| Keyless Entry Receiver | Behind Passenger Side Kick Panel, In Molded Pocket (Fig 3 ) |

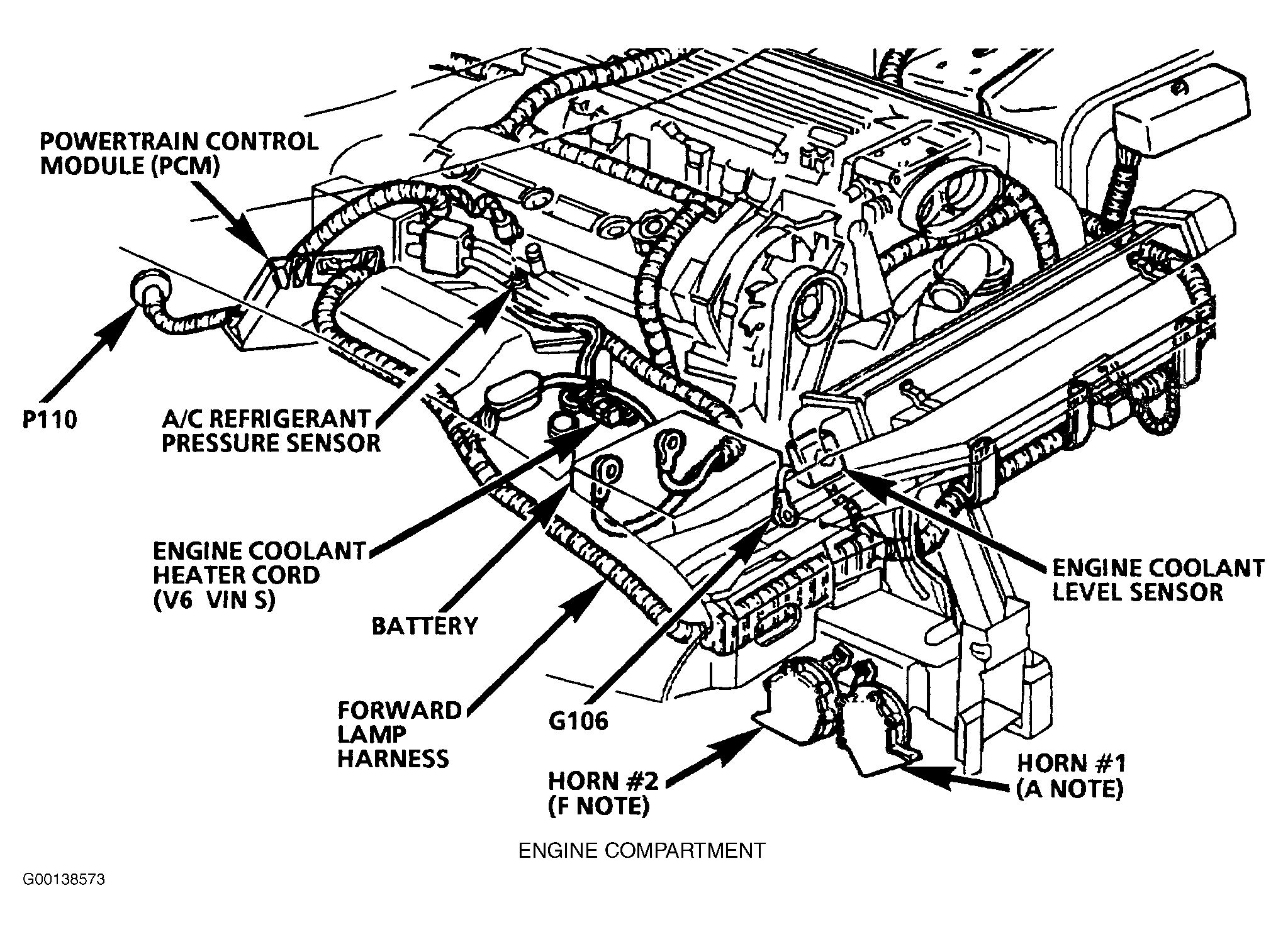

| Powertrain Control Module (PCM) | Passenger Side Of Engine Compartment, Rearward Of Shock Tower (Fig 4 ) |

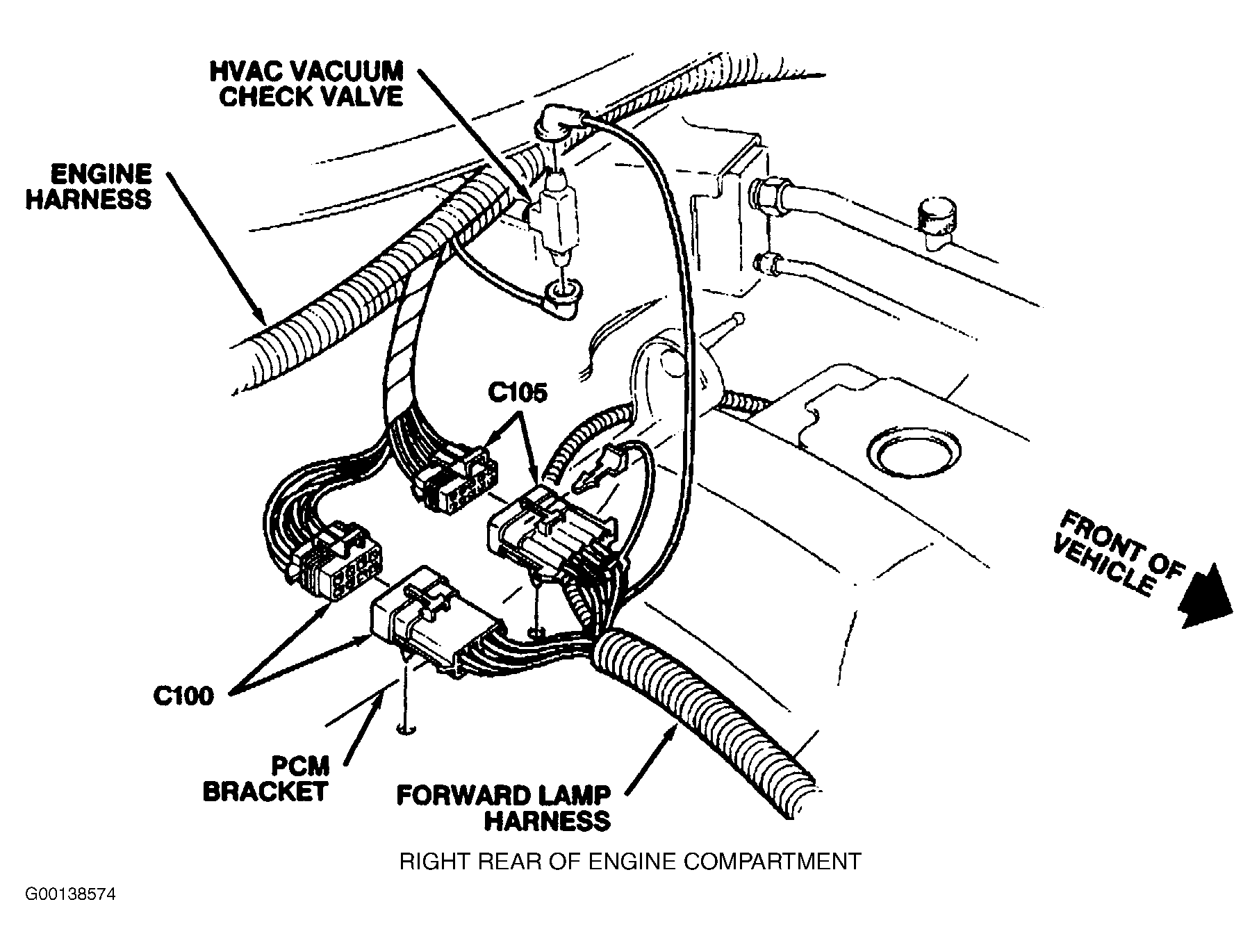

| C105 | Engine Compartment, Rearward Passenger Wheelhouse Attached To PCM Bracket (Fig 5 ) |

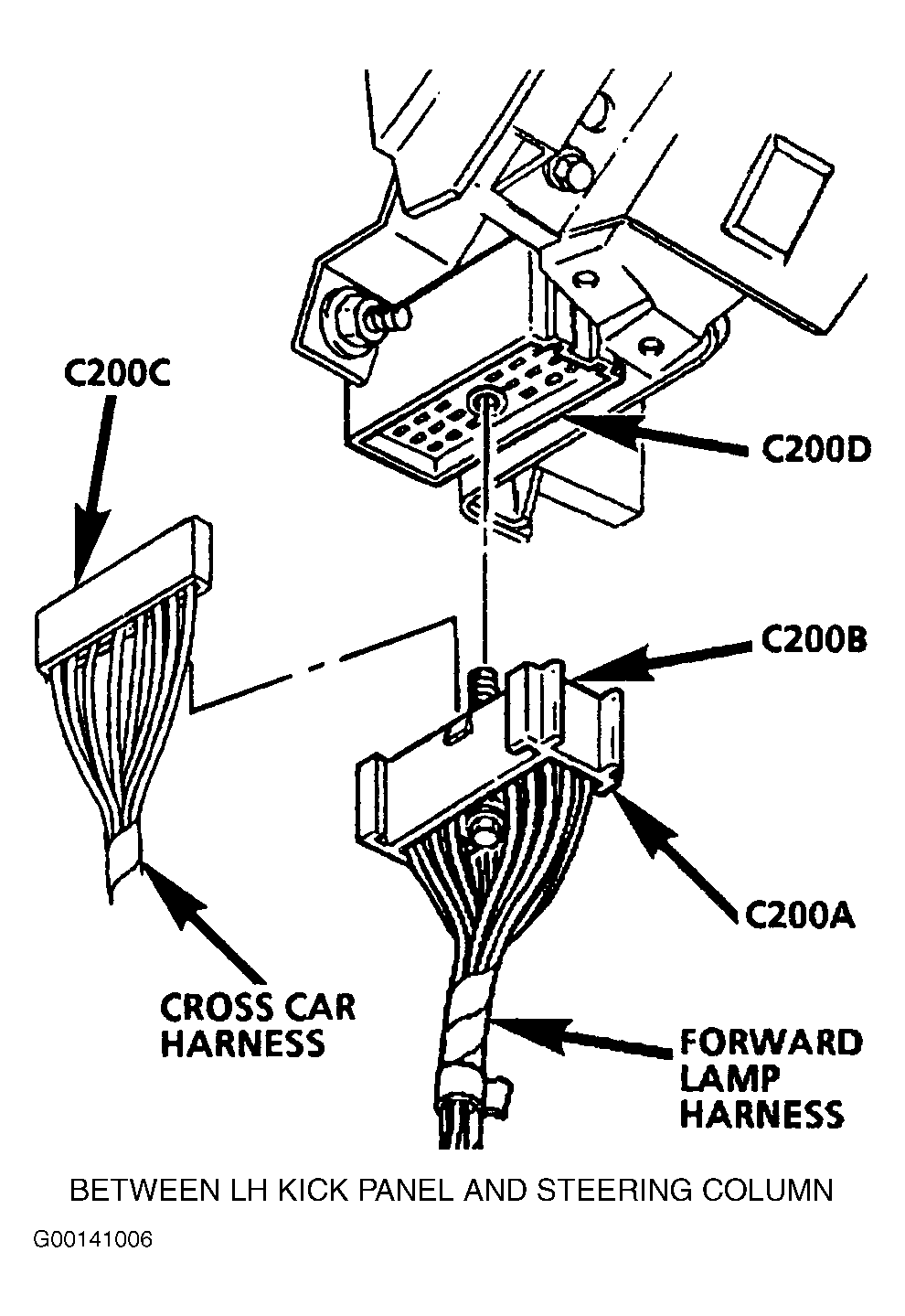

| C200A (17 Terminals) | Forward Lamp To Instrument Panel Harness, Between Driver Side Kick Panel and Steering Column (Fig 6 ) |
| C200D (48 Terminals) | Part Of Instrument Panel Harness, Between Driver Side Kick Panel and Steering Column (Fig 6 ) |

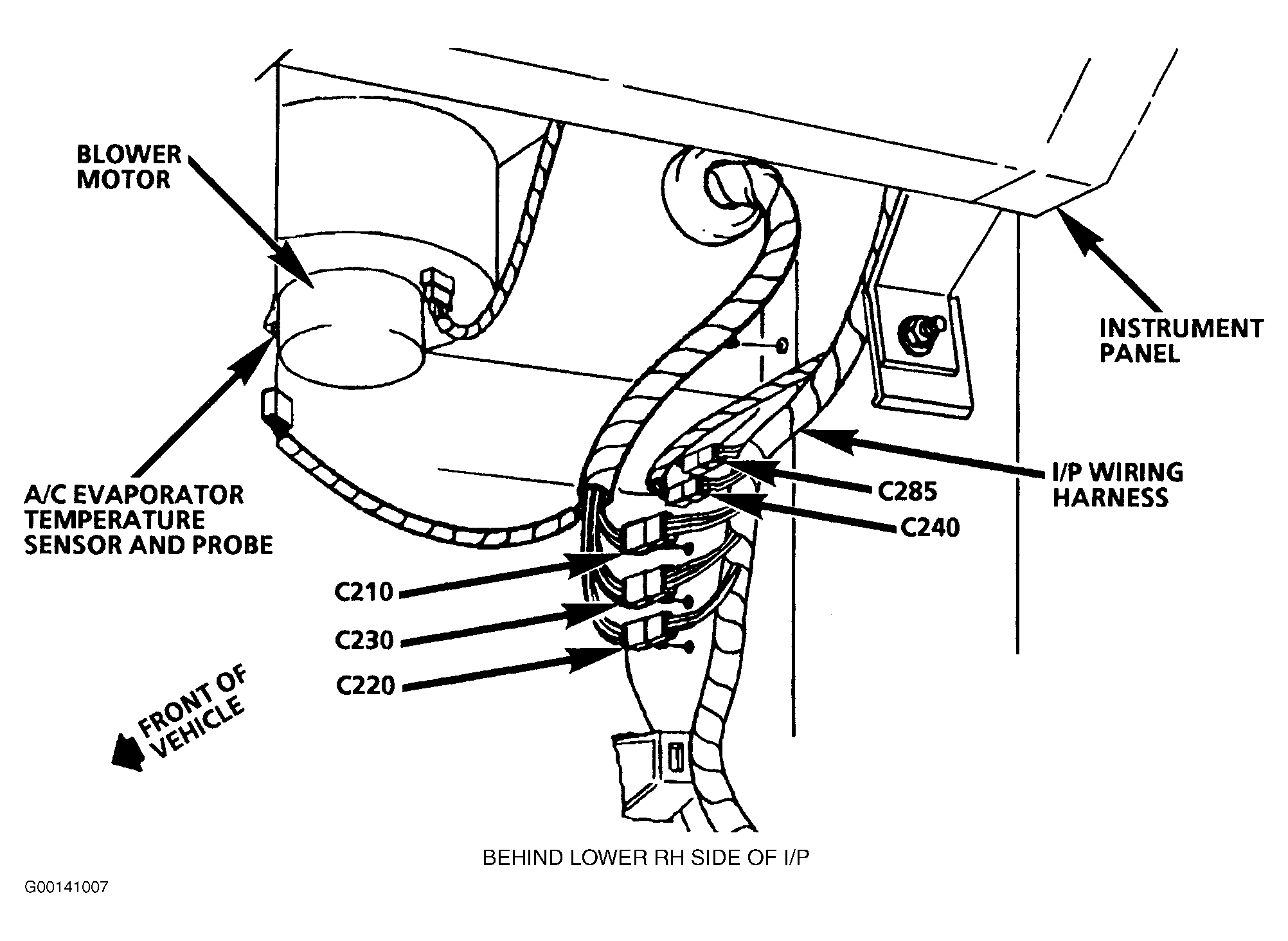

| C210 (4 Terminals) | Instrument Panel To Engine Harness, Under Passenger Side Of Instrument Panel Behind Passenger Side Kick Panel (Fig 7 ) |
| C220 (10 Terminals) | Instrument Panel To Engine Harness, Under Passenger Side Of Instrument Panel Behind Passenger Side Kick Panel (Fig 7 ) |
| C230 (10 Terminals) | Instrument Panel To Engine Harness, Under Passenger Side Of Instrument Panel Behind Passenger Side Kick Panel (Fig 7 ) |
| C240 (6 Terminals) | Cross Car To Instrument Panel Harness, Under Passenger Side Of Instrument Panel Behind Passenger Side Kick Panel (Fig 7 ) |
| C285 (1 Terminal) | Cross Car To Instrument Panel Harness, Under Passenger Side Of Instrument Panel Behind Passenger Side Kick Panel (Fig 7 ) |

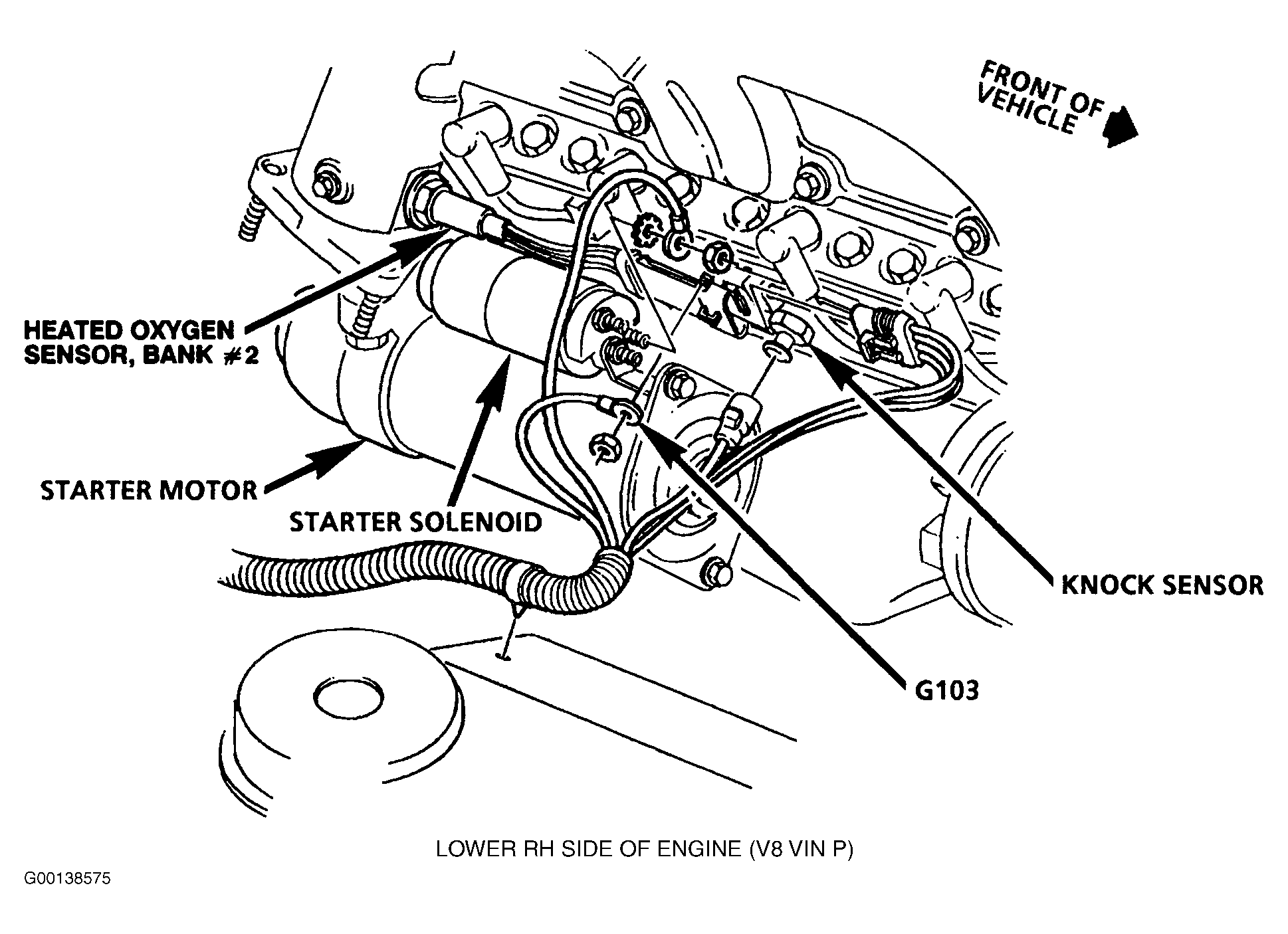

| G103 (LT1) | Passenger Side Of Engine Block, Above Starter (Fig 8 ) |

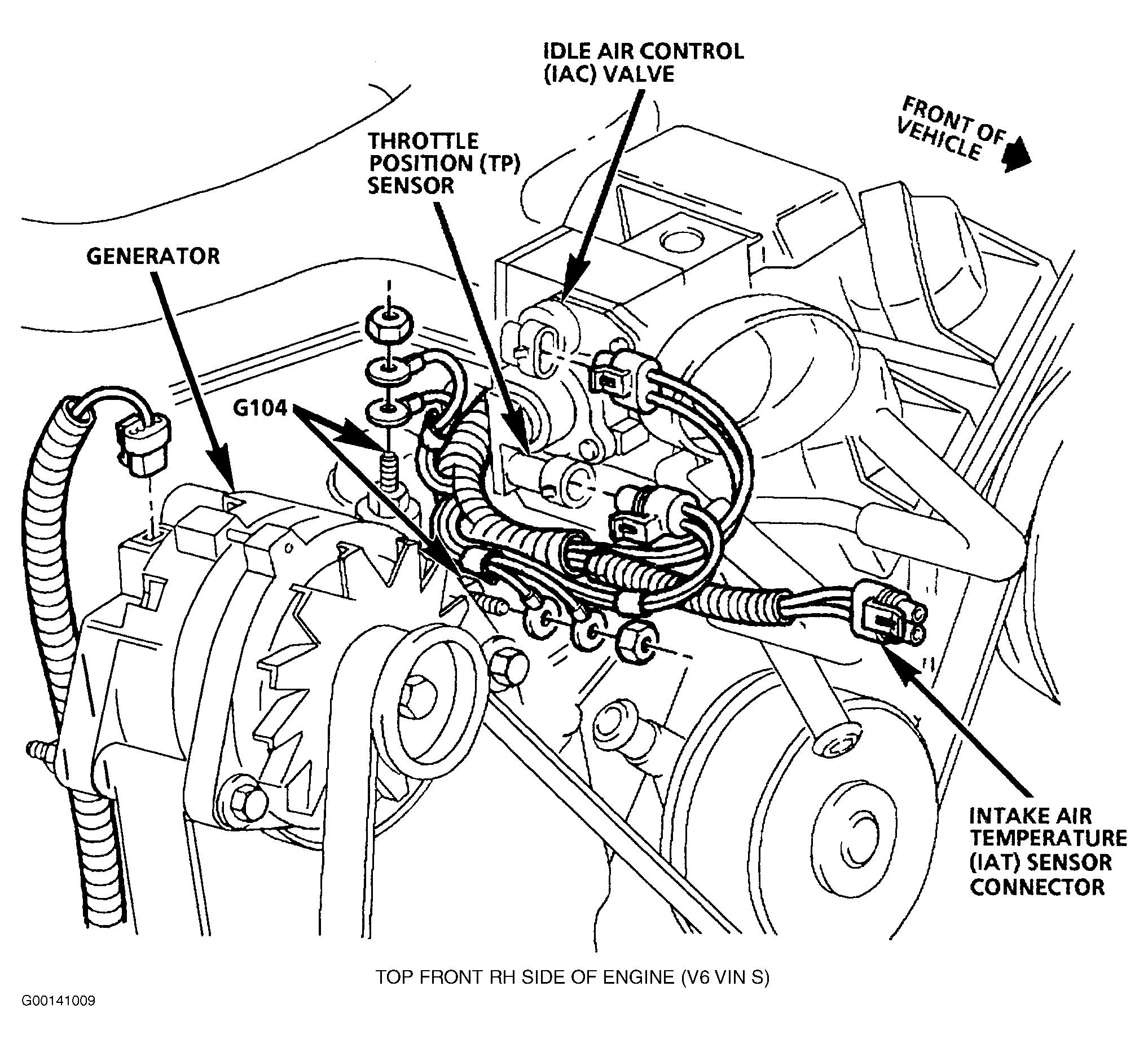

| G104 (L32) | Top Passenger Side Of Engine, In Intake Manifold (Fig 9 ) |
| P110 | Passenger Side, In Dash Panel (Fig 4 ) |
| S109 (LT1) | Engine Harness, Near PCM Breakout |
| S110 (L36) | Engine Harness, Near PCM Breakout |
| S110 (L32) | Engine Harness, Near Passenger Side Oxygen Sensor Breakout |
| S215 | Instrument Panel Harness, Before DLC Breakout |
| S216 | Instrument Panel Harness, Near Convenience Center (Firebird) Or Instrument Panel (Camaro) Breakout |
| S217 | Instrument Panel Harness, Before DLC Breakout |
| S240 | Instrument Panel Harness, Near Transmission Range Switch Breakout |
| S270 (LT1) | Forward Lamp Harness, Near ECBM Breakout |
