Component Locations

COMPONENT LOCATIONS

Component Location
Data Link Connector (DLC) Bottom Of Instrument Panel, Right Of Steering Column.
Electronic Brake Control Module (EBCM) Behind Driver Side Of Instrument Panel. See Fig 1
Powertrain Control Module (PCM) Driver Side Of Engine Compartment, Forward Of Strut Tower. See Fig 2
Sensing And Diagnostic Module (SDM) Below Front Passenger Seat. See Fig 3
Trip Computer Driver Side Of Instrument Cluster.
C100 (36 Terminals) Passenger Side Of Dash, Behind Strut Tower. See Fig 4
G201 Behind Instrument Panel, On Passenger Side Of Mag Bracket. See Fig 1
S211 Instrument Panel Harness, Near Radio Breakout
S237 Instrument Panel Harness, Near Blower Resistor Breakout
Fig 1: Locating Electric Brake Control Module & Ground G201
G00133128Courtesy of GENERAL MOTORS CORP.

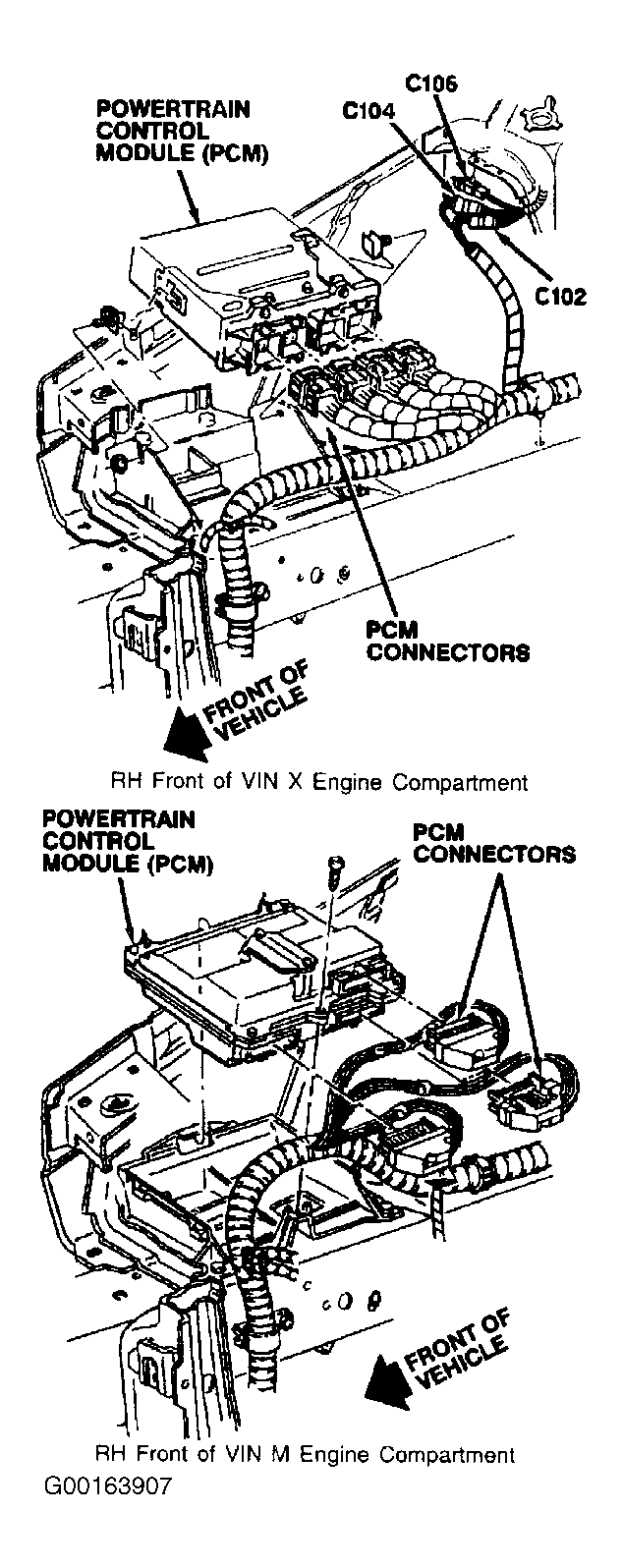

Fig 2: Locating Powertrain Control Module (PCM)
G00163907Courtesy of GENERAL MOTORS CORP.

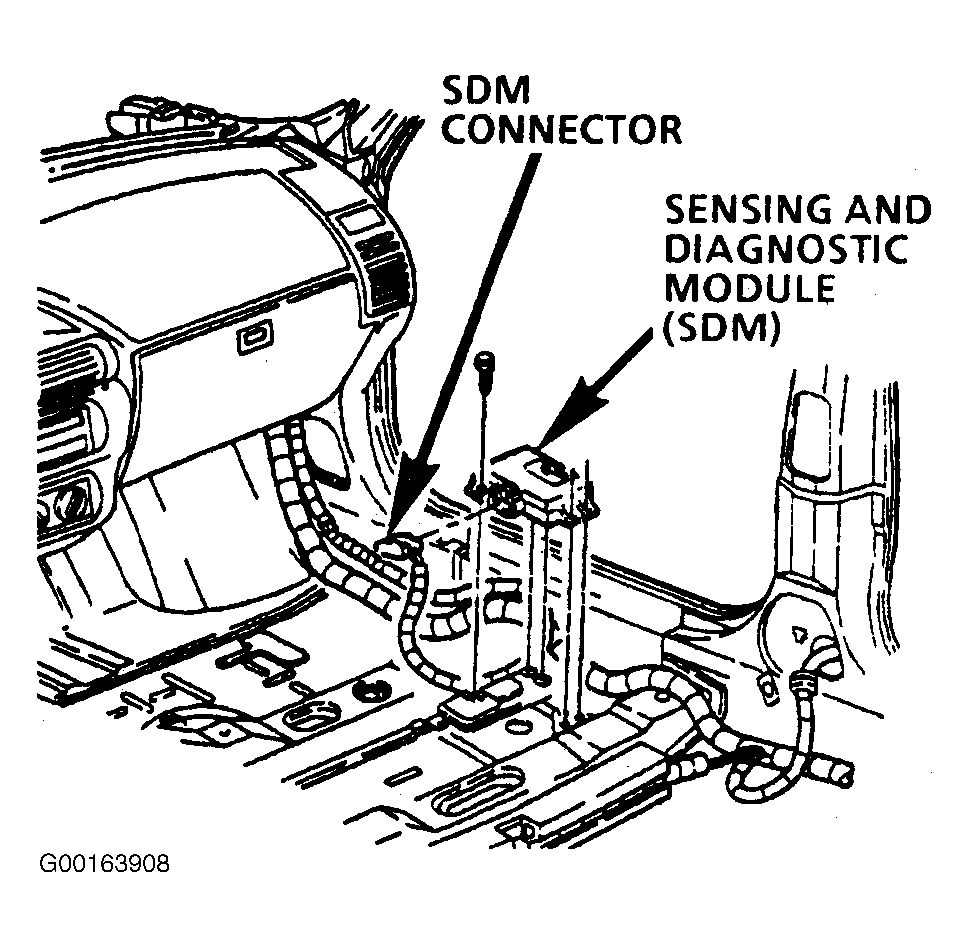

Fig 3: Locating Sensing And Diagnostic Module (SDM)
G00163908Courtesy of GENERAL MOTORS CORP.
Fig 4: Locating Connector C100
G00133127Courtesy of GENERAL MOTORS CORP.
