Home >> Pontiac >> 1991 >> Grand Am Base, 4D Sedan, Standard >> Repair and Diagnosis >> Body & Frame >> Power Windows >> System Tests >> Test C: Power Window Control Module Test

Test C: Power Window Control Module Test

For testing procedure, see Fig 1 .

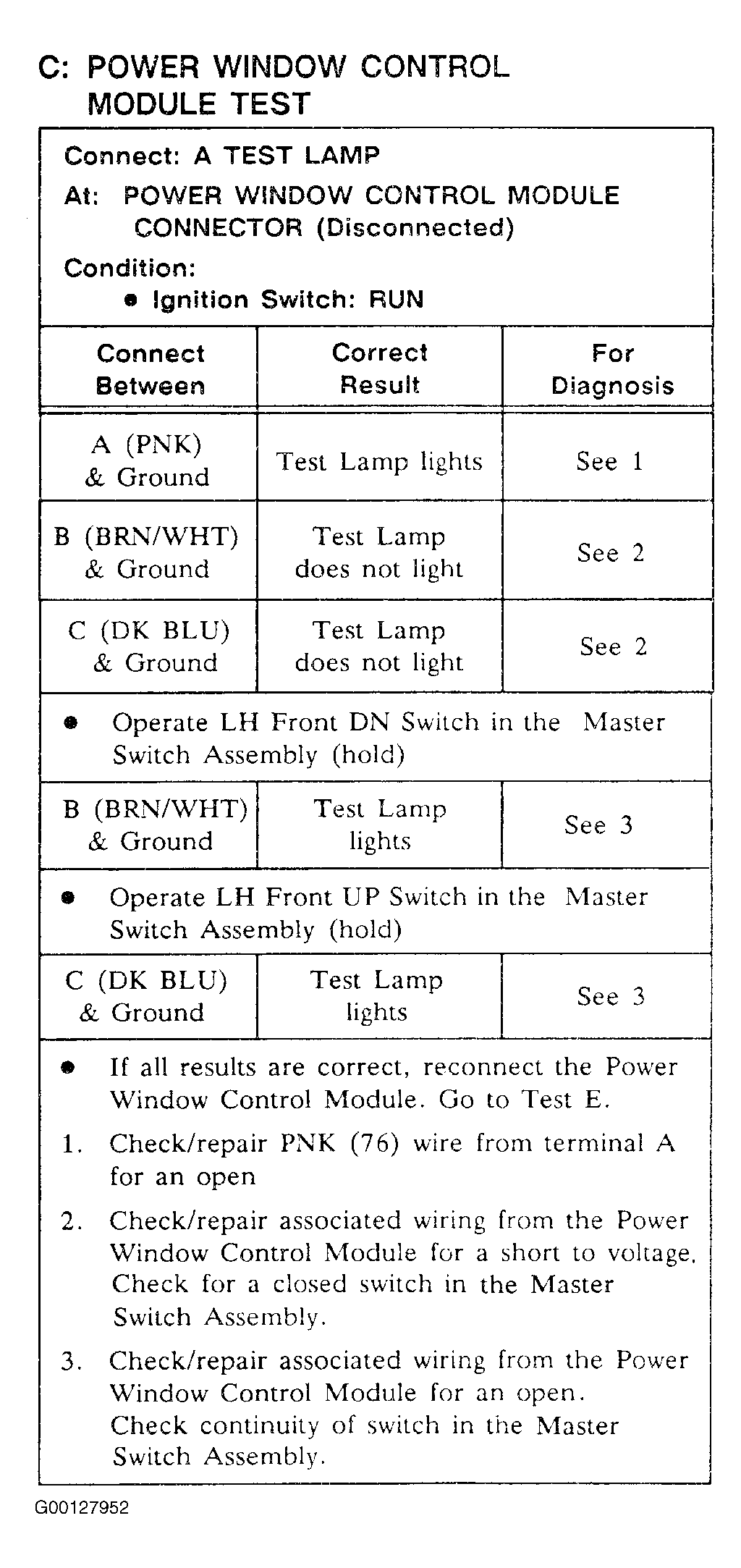

Fig 1: Test C: Power Window Control Module Test
G00127952Courtesy of GENERAL MOTORS CORP.
