Home >> Pontiac >> 1991 >> Grand Am Base, 4D Sedan, Standard >> Repair and Diagnosis >> Body & Frame >> Power Windows >> System Tests >> Test B: Master Switch Assembly Test

Test B: Master Switch Assembly Test

For testing procedure, see Fig 1 or Fig 2 .

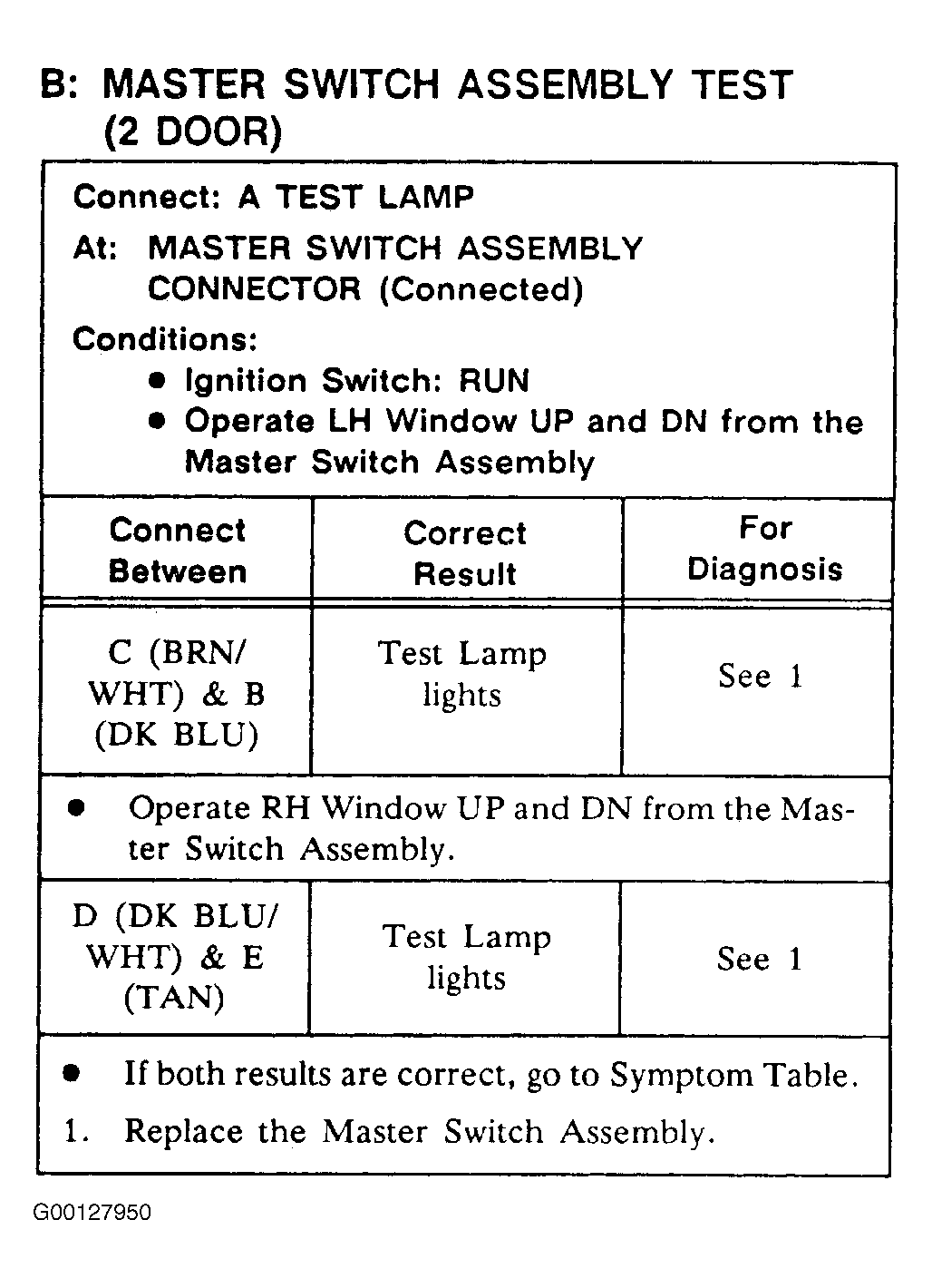

Fig 1: Test B: Master Switch Assembly Test (2-Door)
G00127950Courtesy of GENERAL MOTORS CORP.

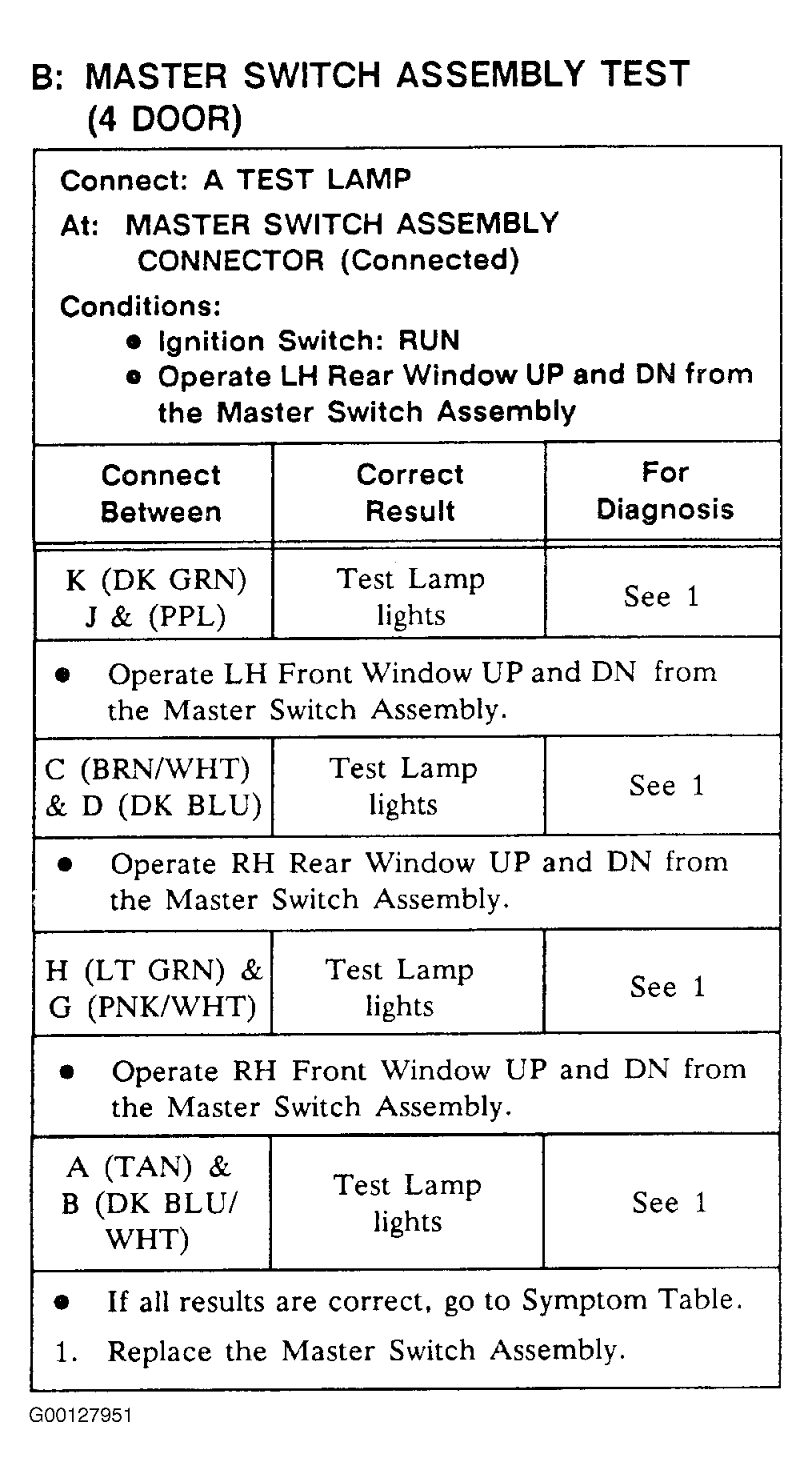

Fig 2: Test B: Master Switch Assembly Test (4-Door)
G00127951Courtesy of GENERAL MOTORS CORP.
