Power Window Control Module: Removal

1. Remove door trim panel. See DOOR TRIM PANEL  .
2. Remove water deflector. See WATER DEFLECTOR  .
3. Remove wiring connector (4). See Fig 1 .
4. Remove release tab (3) on module (2) and slide module out of bracket (1).

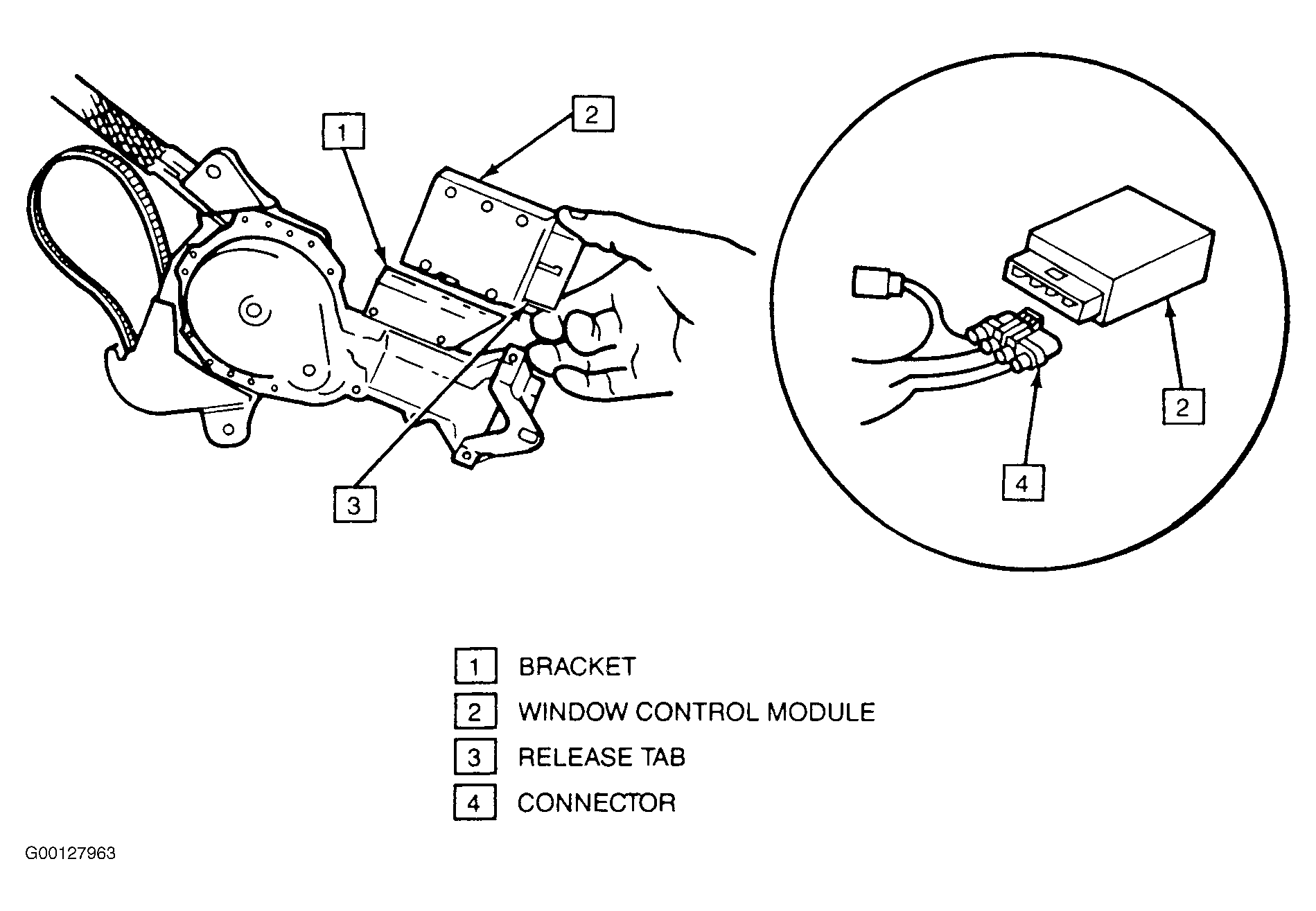

Fig 1: Removing Power Window Control Module

Courtesy of GENERAL MOTORS CORP.
