Battery Power To Module Disconnected

NOTE: For the Battery Power To Module Disconnected testing, refer to Fig 1 .

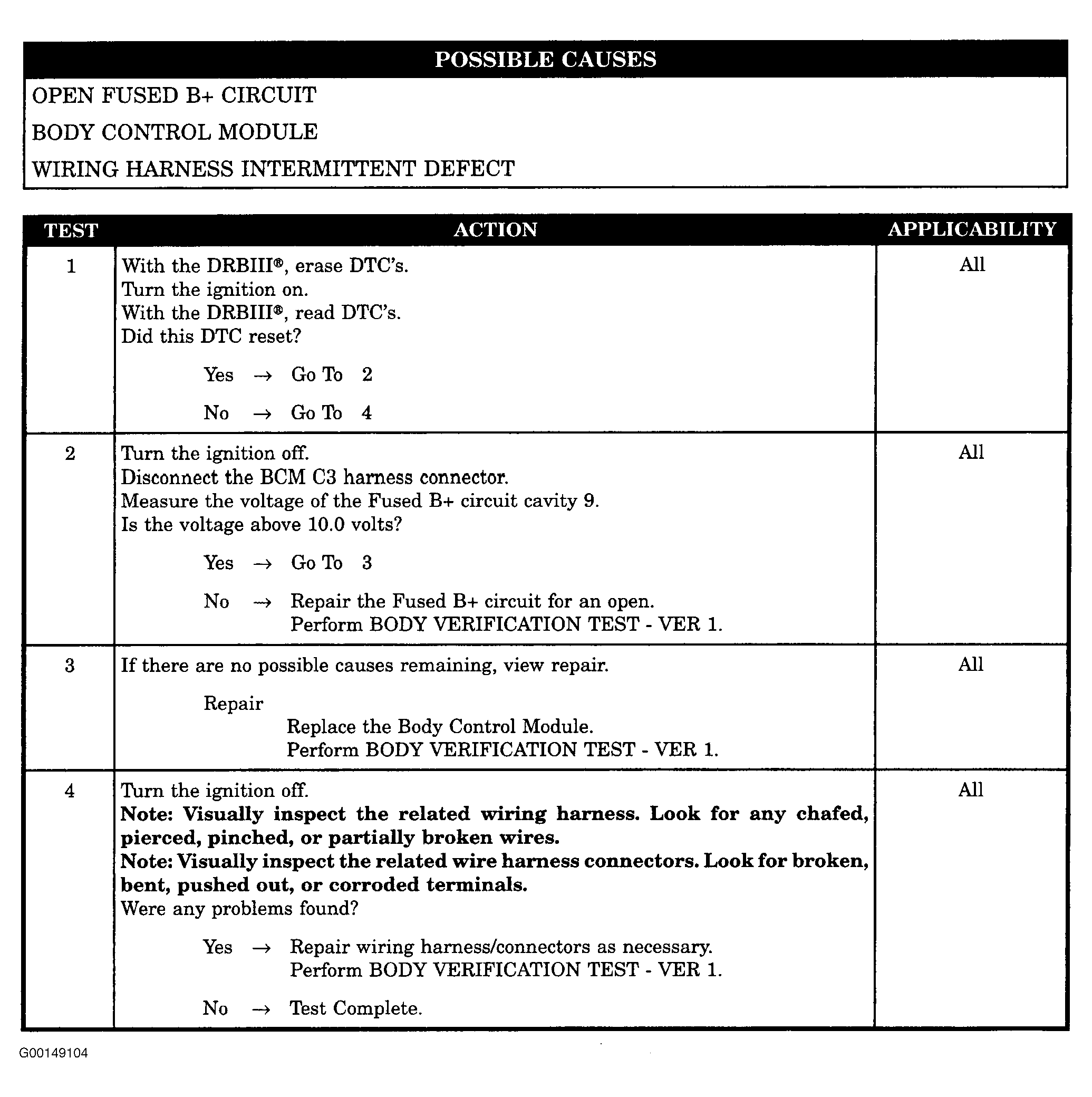

Fig 1: Testing Battery Power To Module Disconnected
G00149104Courtesy of CHRYSLER CORP.
