Service Indicator & Warning Lights: Notes

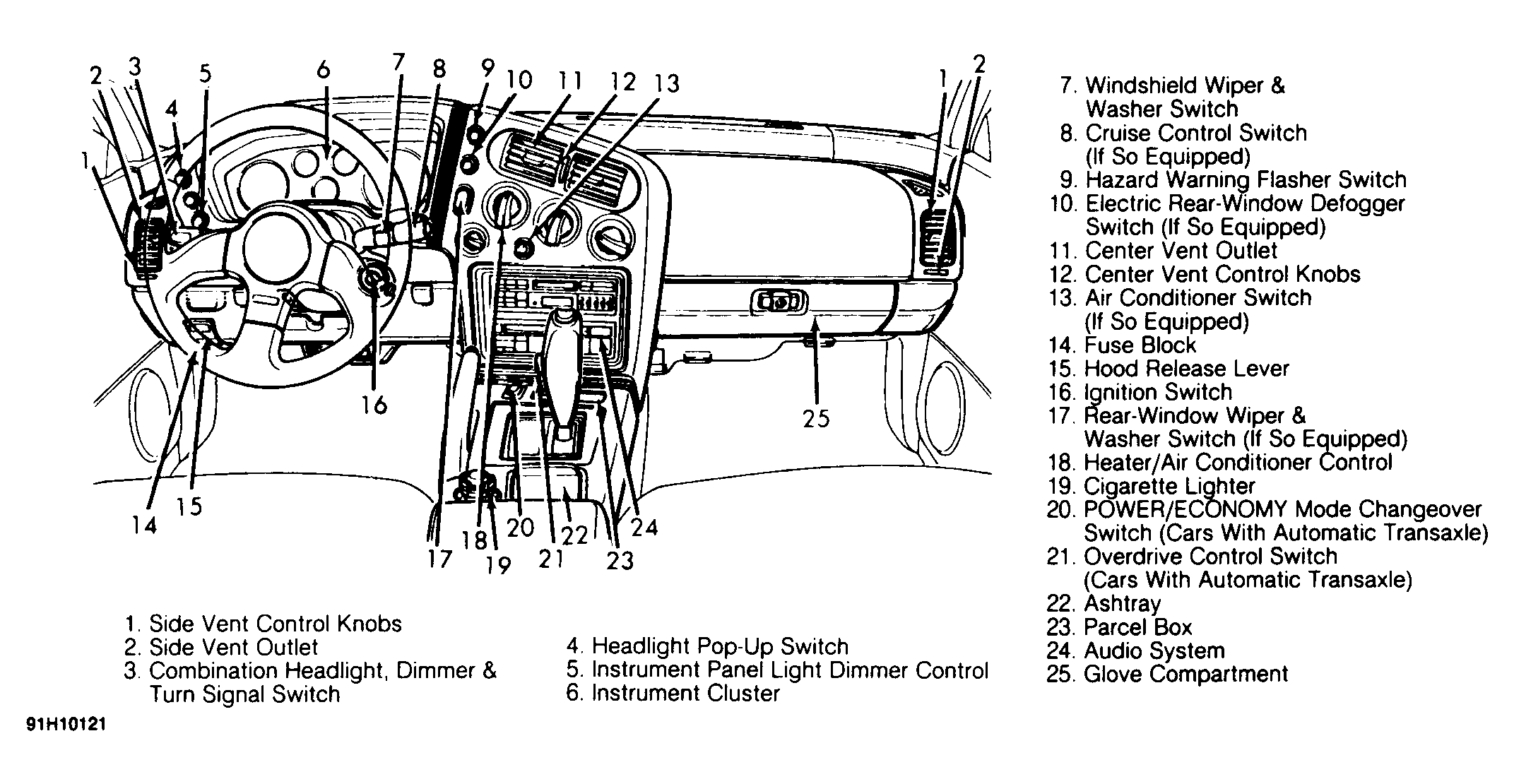

Fig 1: Instrument Panel & Interior Controls
G91H10121Courtesy of CHRYSLER MOTORS

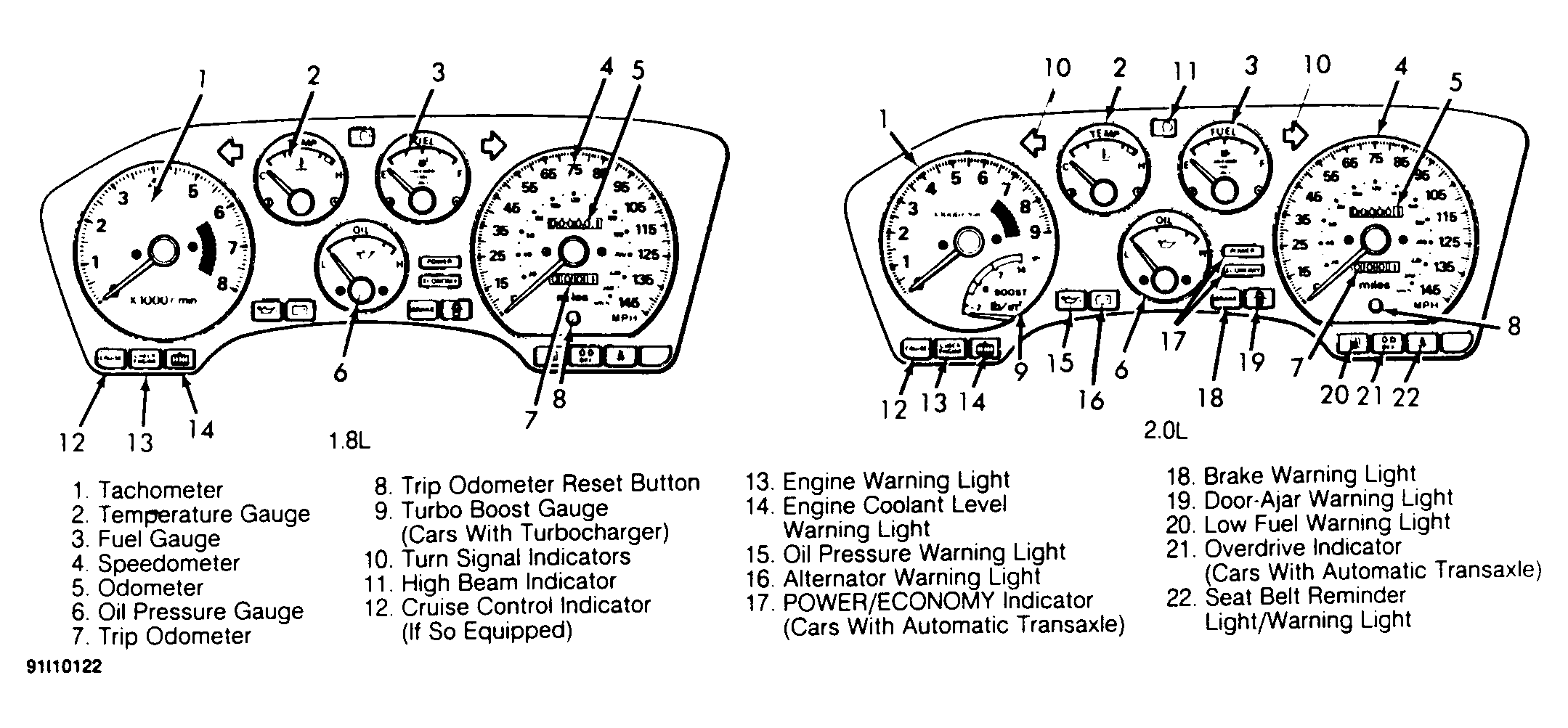

Fig 2: Instrument Cluster
G91I10122Courtesy of CHRYSLER MOTORS

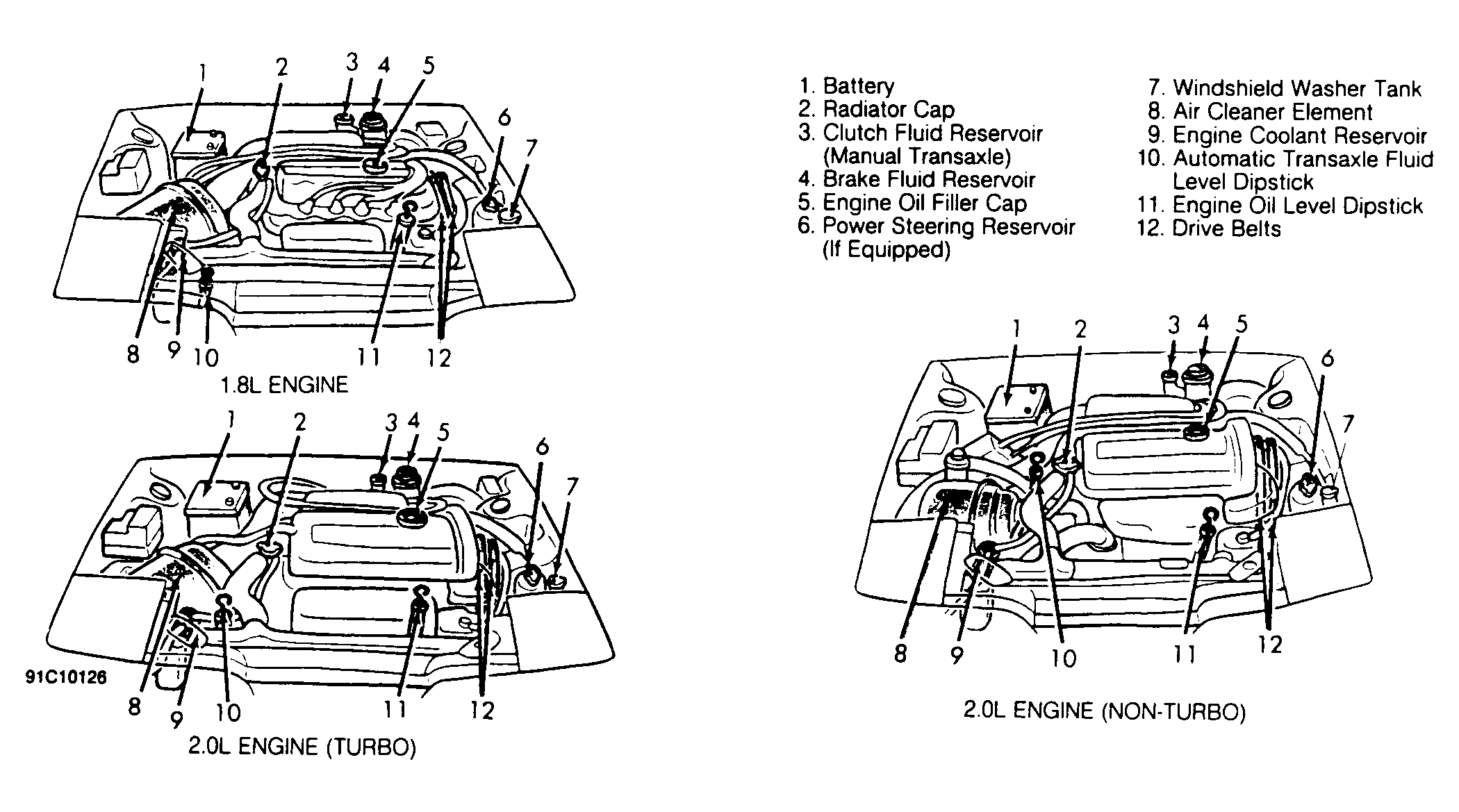

Fig 3: Engine Compartment Component Location
G91C10126Courtesy of CHRYSLER MOTORS
