Removal & Installation

Remove vacuum hose and screws from sensor. Remove electrical connector from sensor. Remove sensor from underhood, located on firewall. See Fig 1. To install, reverse removal procedure.

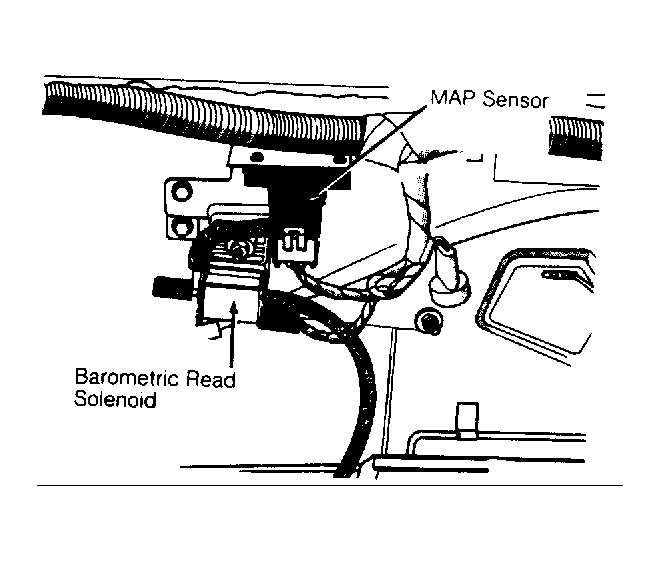

Fig 1: Location Of MAP Sensor & Barometric Read Solenoid

Courtesy of CHRYSLER MOTORS.
