NS-7, Checking Injector Driver Circuits & Injectors

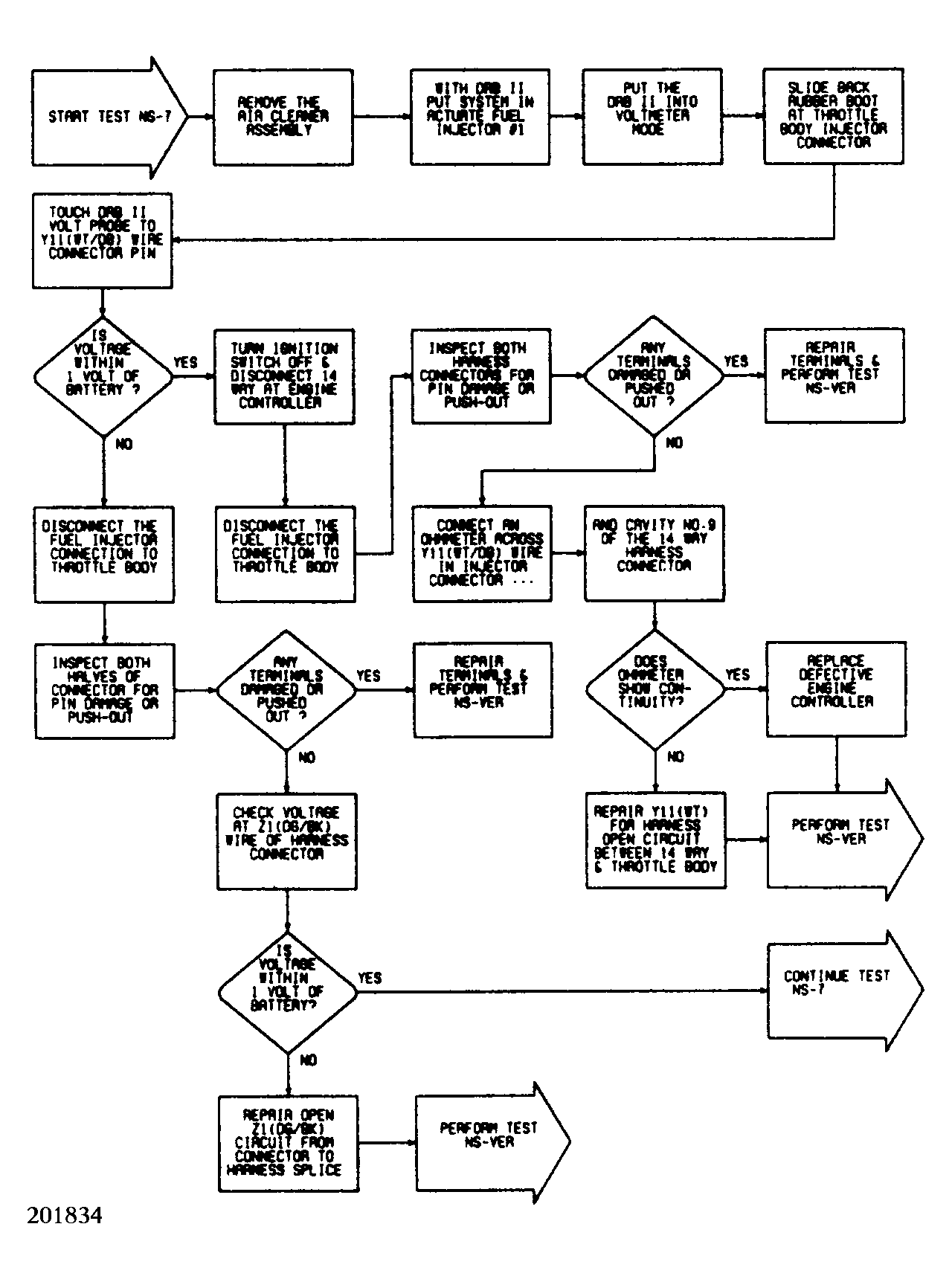

Fig 1: NS-7, Checking Injector Driver Circuits & Injectors (1 of 3)

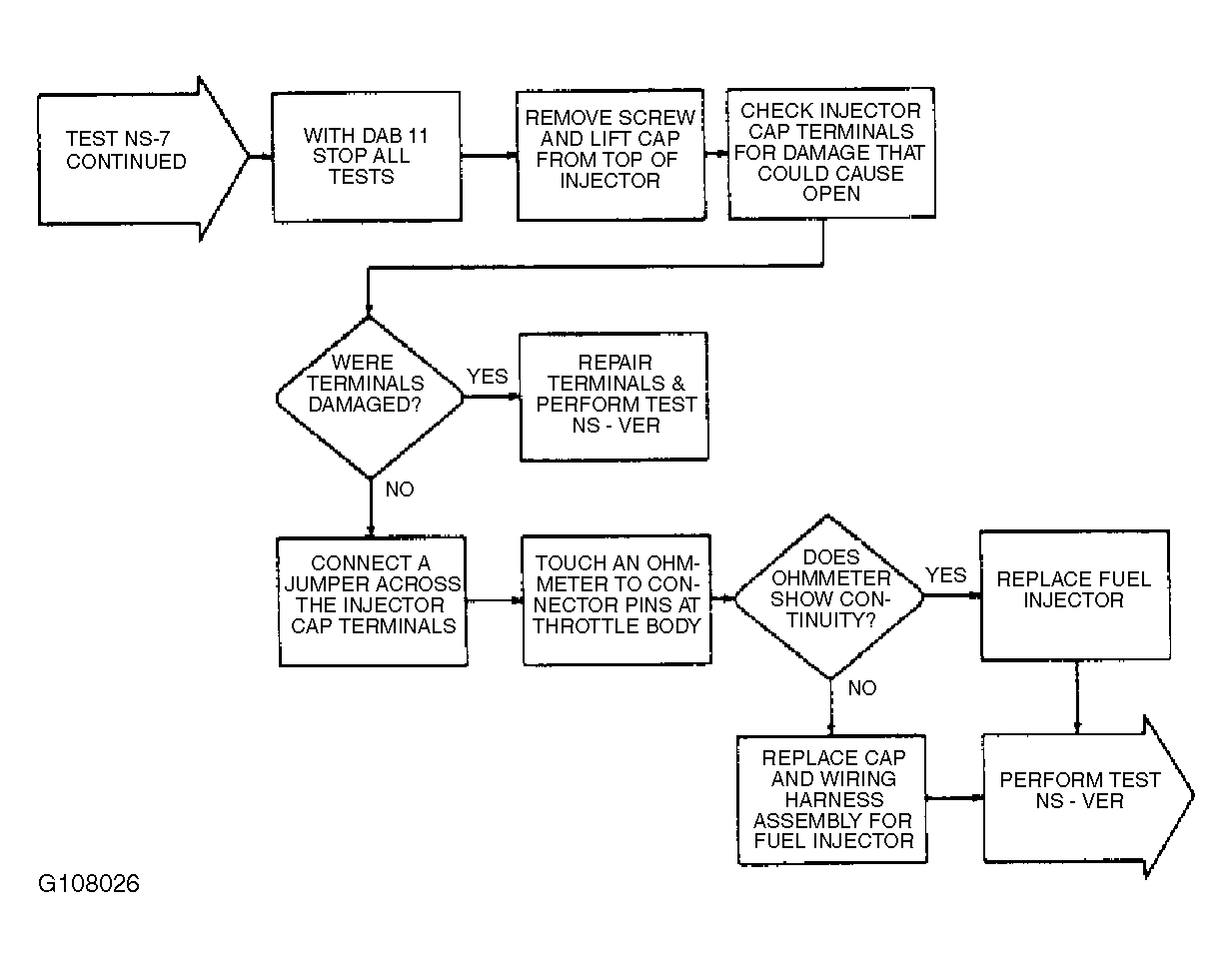

Fig 2: NS-7, Checking Injector Driver Circuits & Injectors (2 of 3)

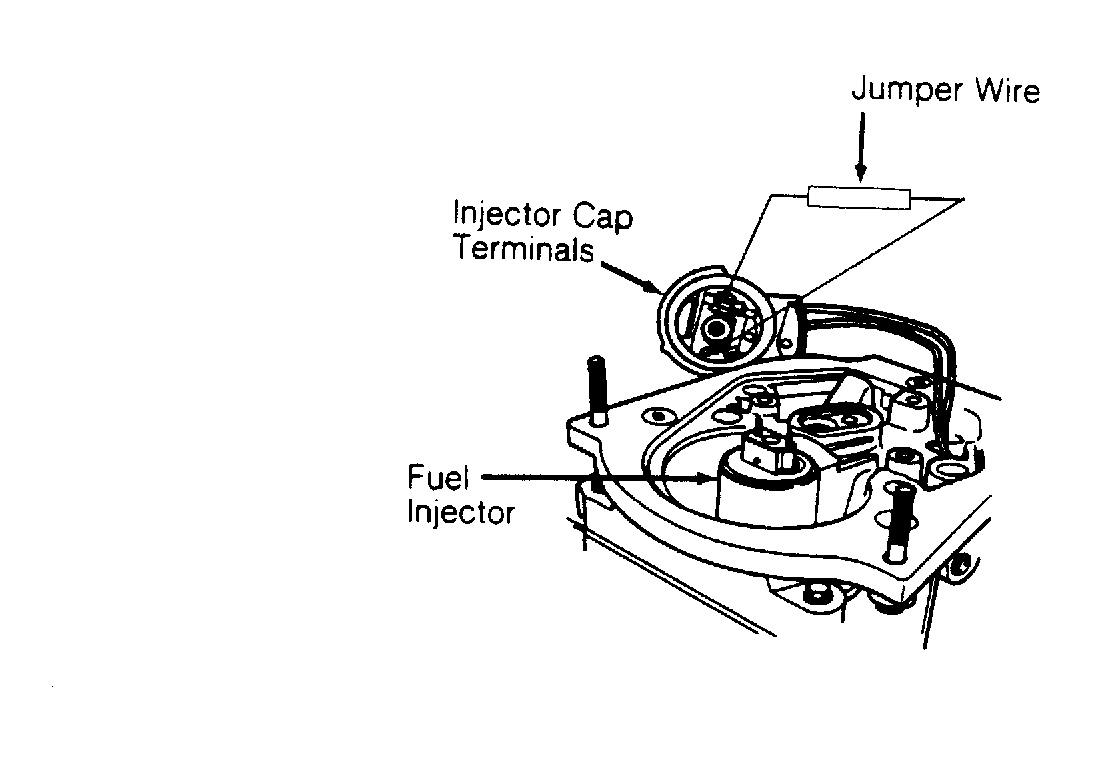

Fig 3: NS-7, Checking Injector Driver Circuits & Injectors (3 of 3)
