Home >> Plymouth >> 1989 >> Horizon Automatic >> Repair and Diagnosis >> Engine Performance >> System >> 2.2L/2.5L SPFI Tests/Code >> DRIVEABILITY Tests >> Dr-8, Checking For Fault Message "Map Pneumatic Change"

Dr-8, Checking For Fault Message "Map Pneumatic Change"

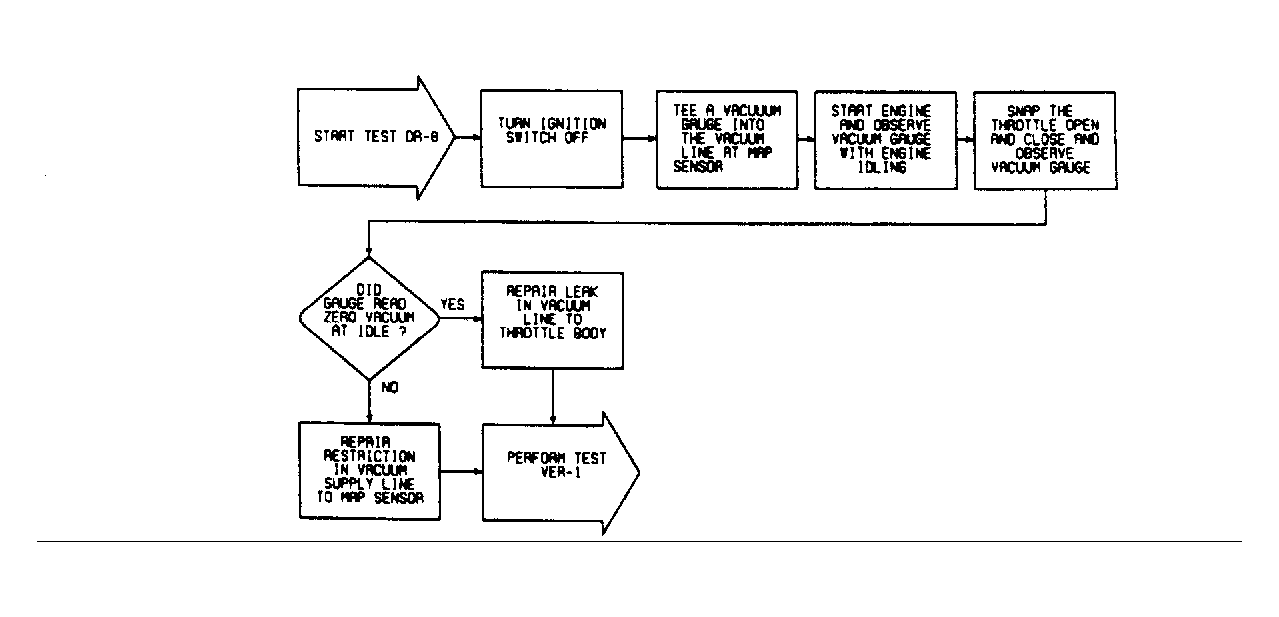

Fig 1: DR-8, Checking For Fault Message "MAP Pneumatic Change"

G108075
