Component Disassembly & Reassembly: Notes

NOTE: For Component Disassembly or Reassembly, refer to Fig 1 .

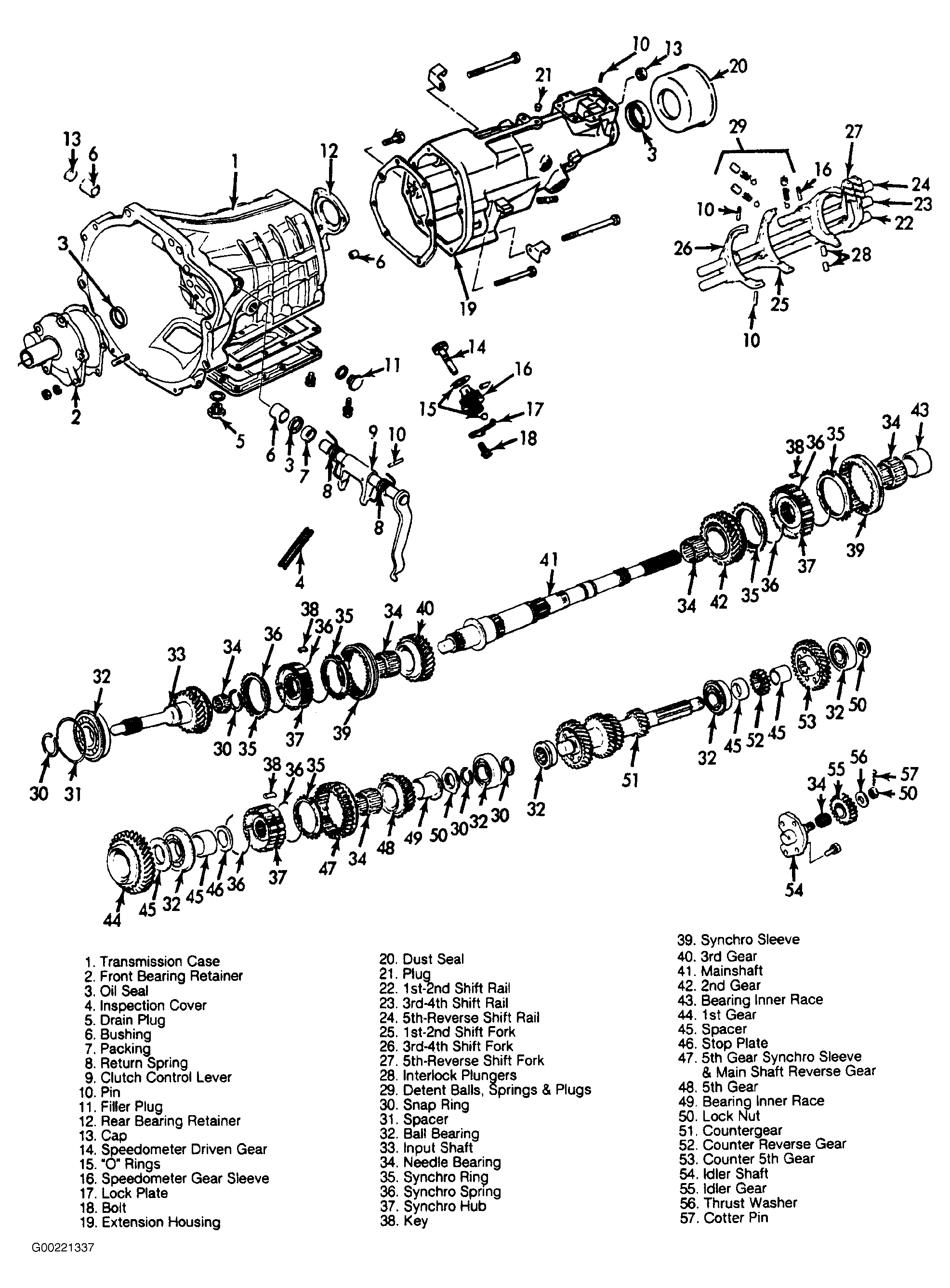

Fig 1: Exploded View of Chrysler Corp. KM132 5-Speed Transmission Assembly

Courtesy of CHRYSLER CORP.
