Component Disassembly & Reassembly: Notes

NOTE: For Reference to Transaxle Gear Components, refer to Fig 1 .

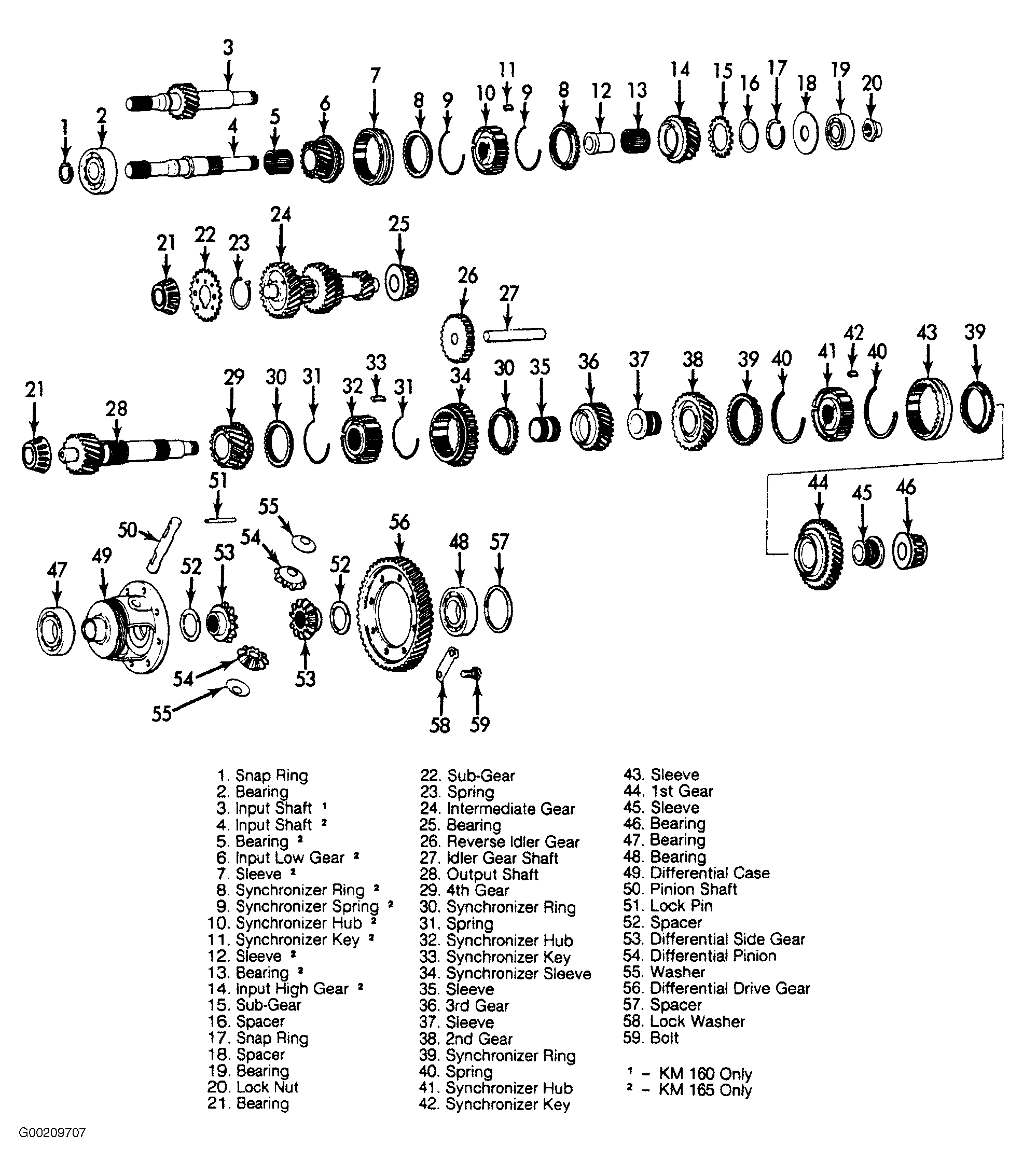

Fig 1: Exploded View of Transaxle Gear Components
G00209707Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
