Wiring Diagrams

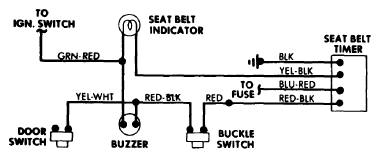

Fig 1: Seat Belt Warning System Wiring Diagram (Arrow and Colt)

G09303039

Courtesy of CHRYSLER GROUP, LLC
