Wiring Diagrams

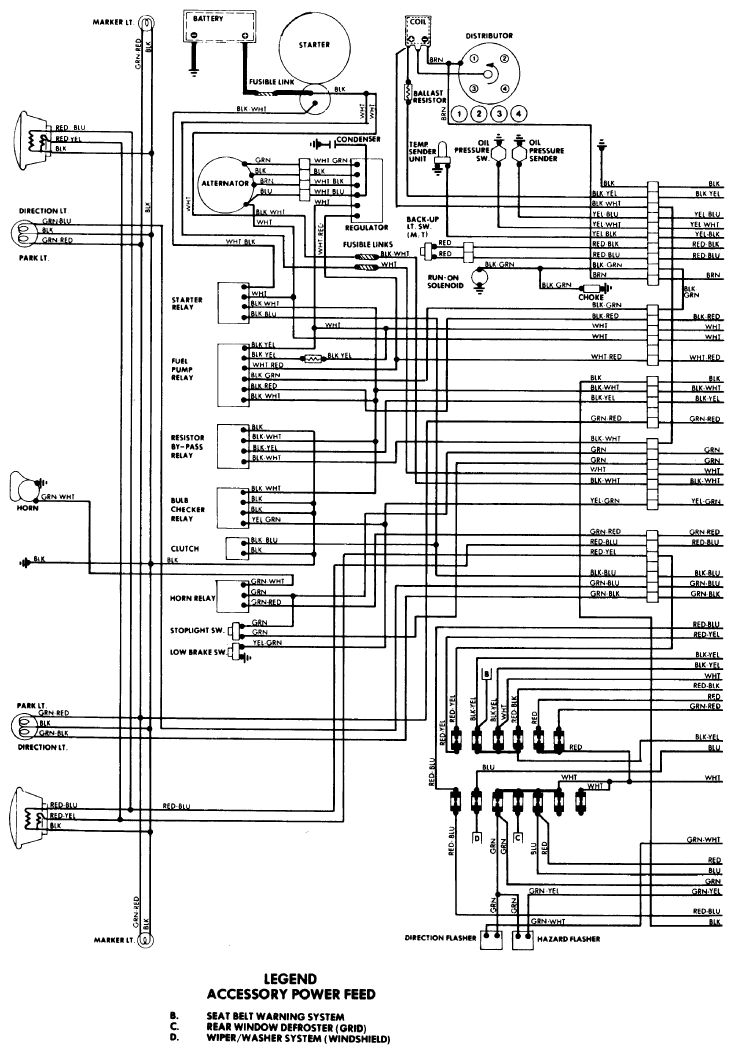

Fig 1: Wiring diagrams - Opel (1 of 2)

G09302981

Courtesy of NOT AVAILABLE

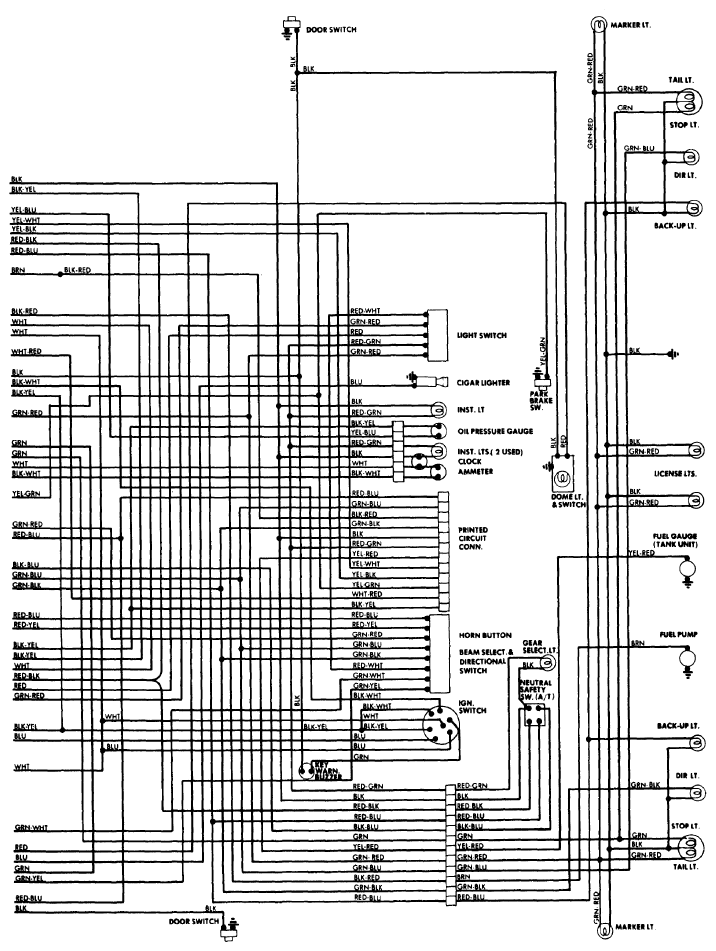

Fig 2: Wiring diagrams - Opel (2 of 2)

G09302982

Courtesy of NOT AVAILABLE
