Splice Pack SP306 Connector End View

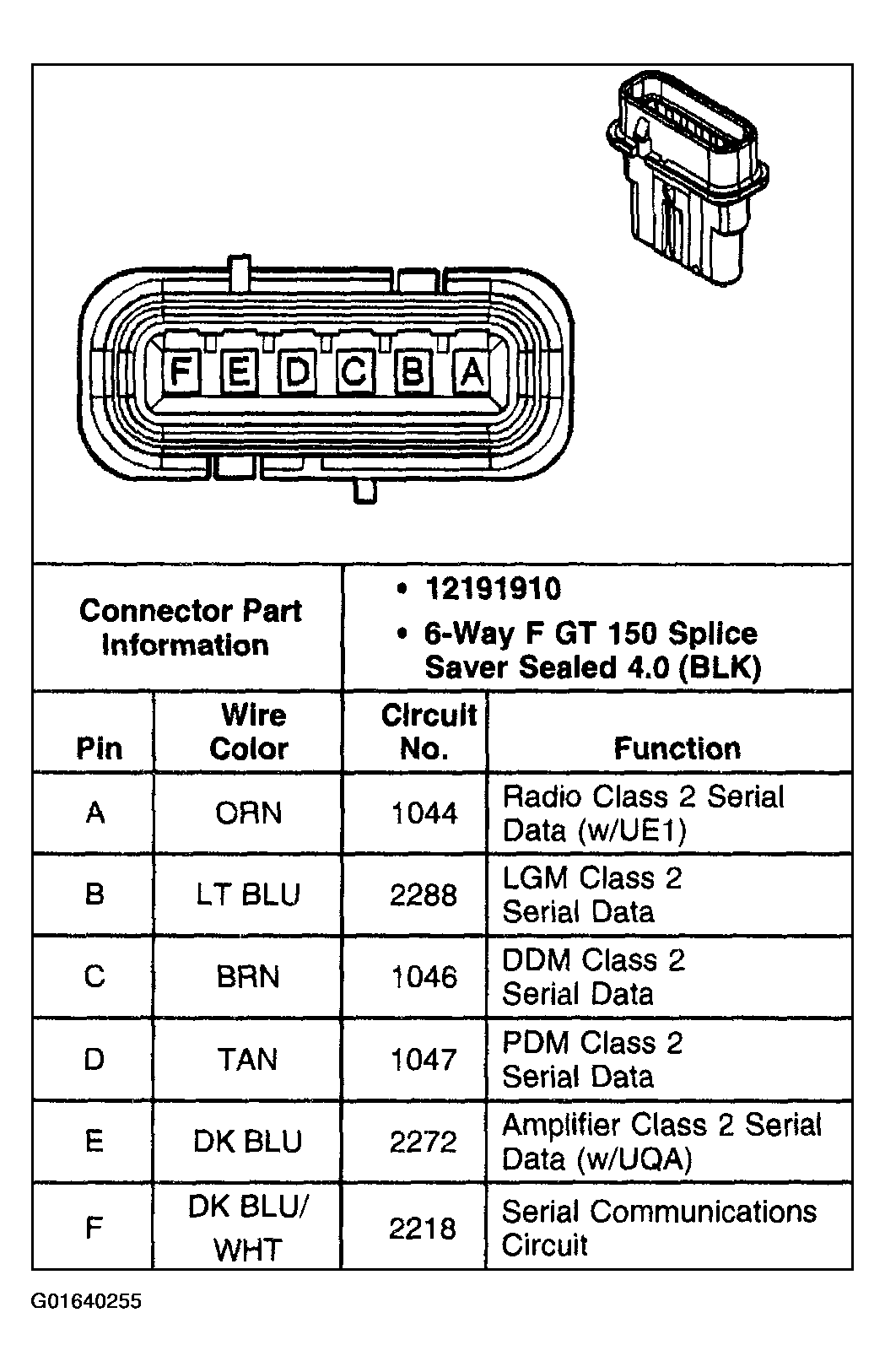

Fig 1: Splice Pack SP306 Connector End View

G01640255

Courtesy of GENERAL MOTORS CORP.
