Cylinder Head - Top View

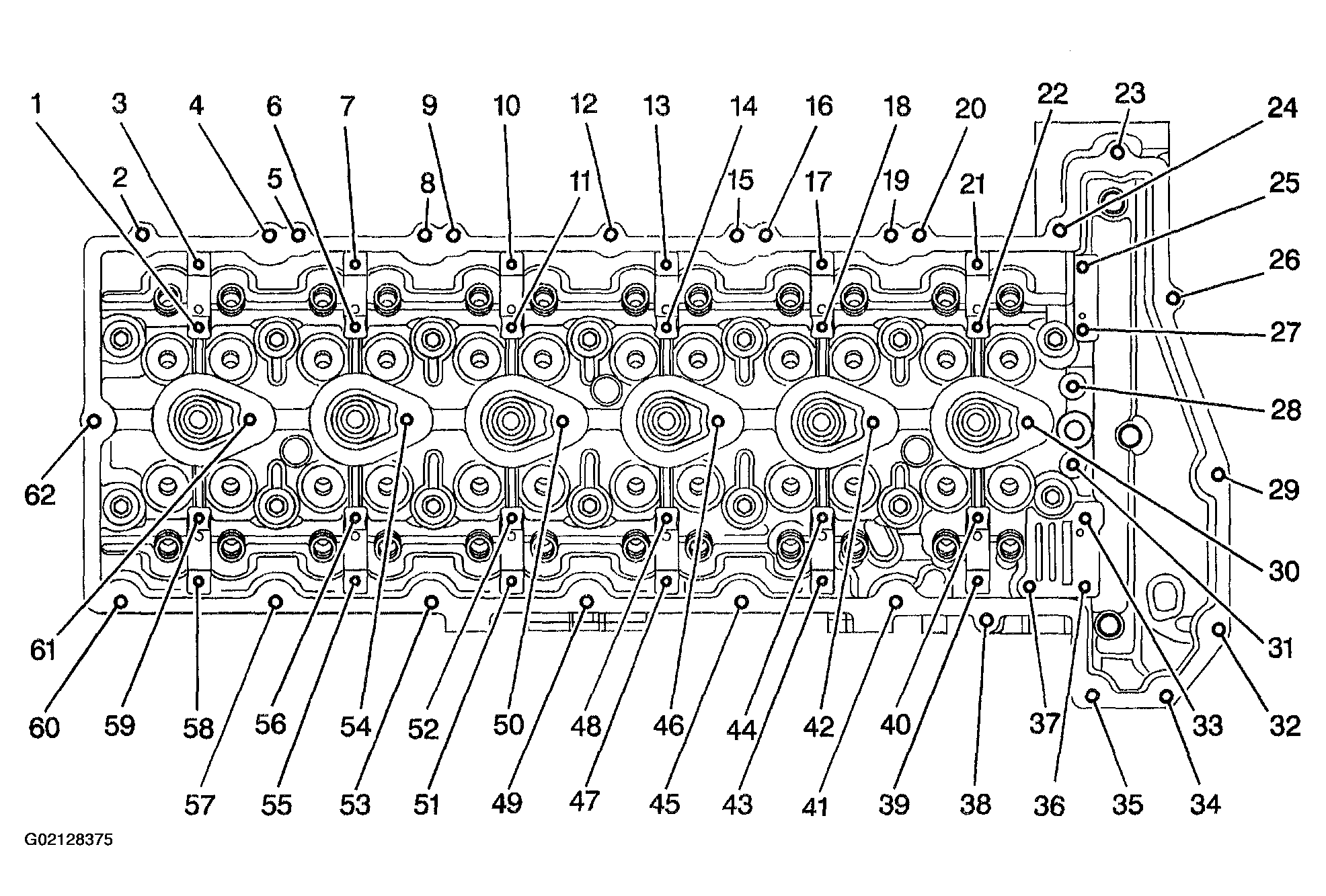

Fig 1: Thread Repair Specifications - Cylinder Head - Top View
G02128375Courtesy of GENERAL MOTORS CORP.

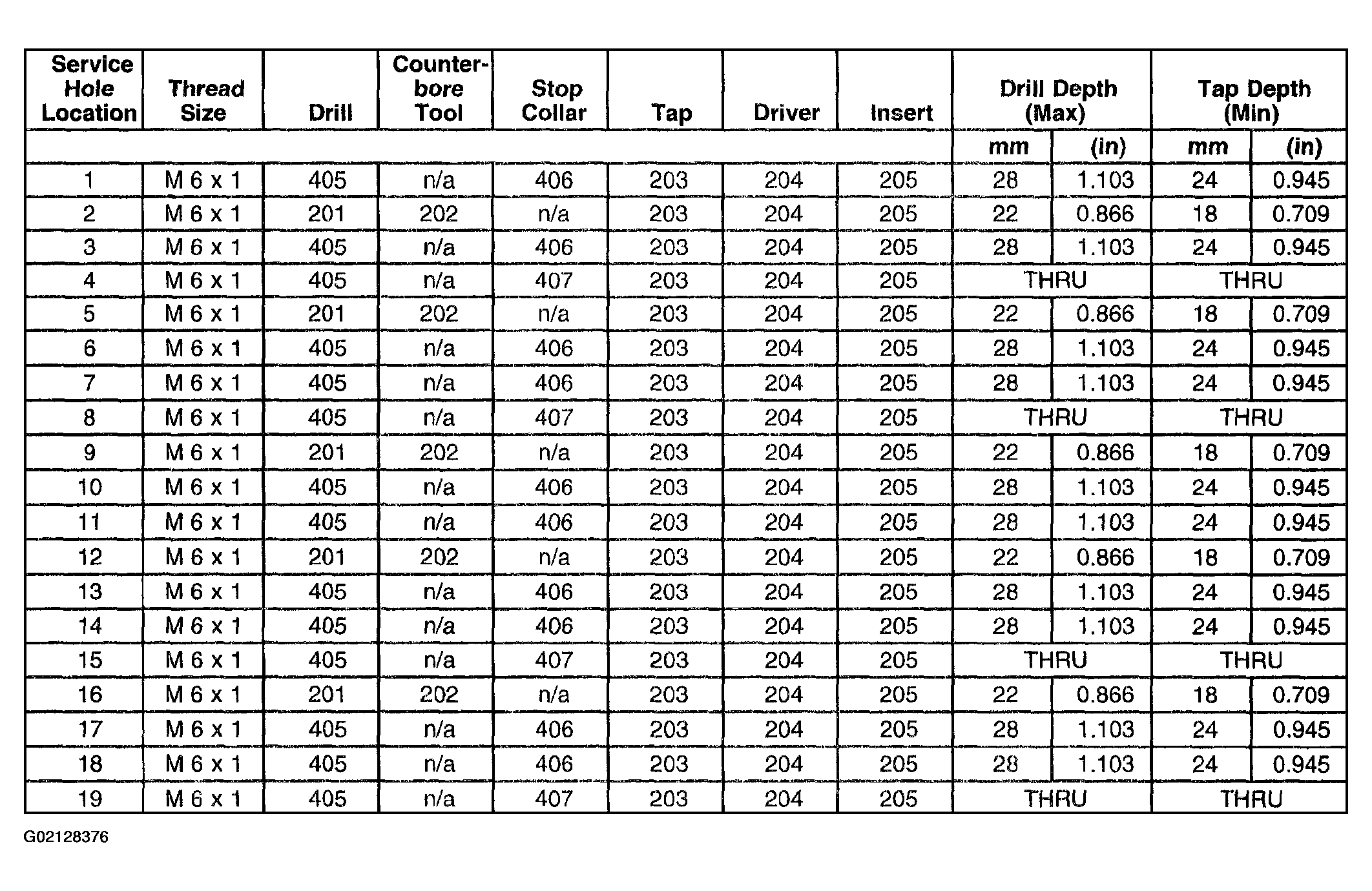

Fig 2: Thread Repair Specifications - Cylinder Head - Top View Callouts (1 Of 2)
G02128376Courtesy of GENERAL MOTORS CORP.

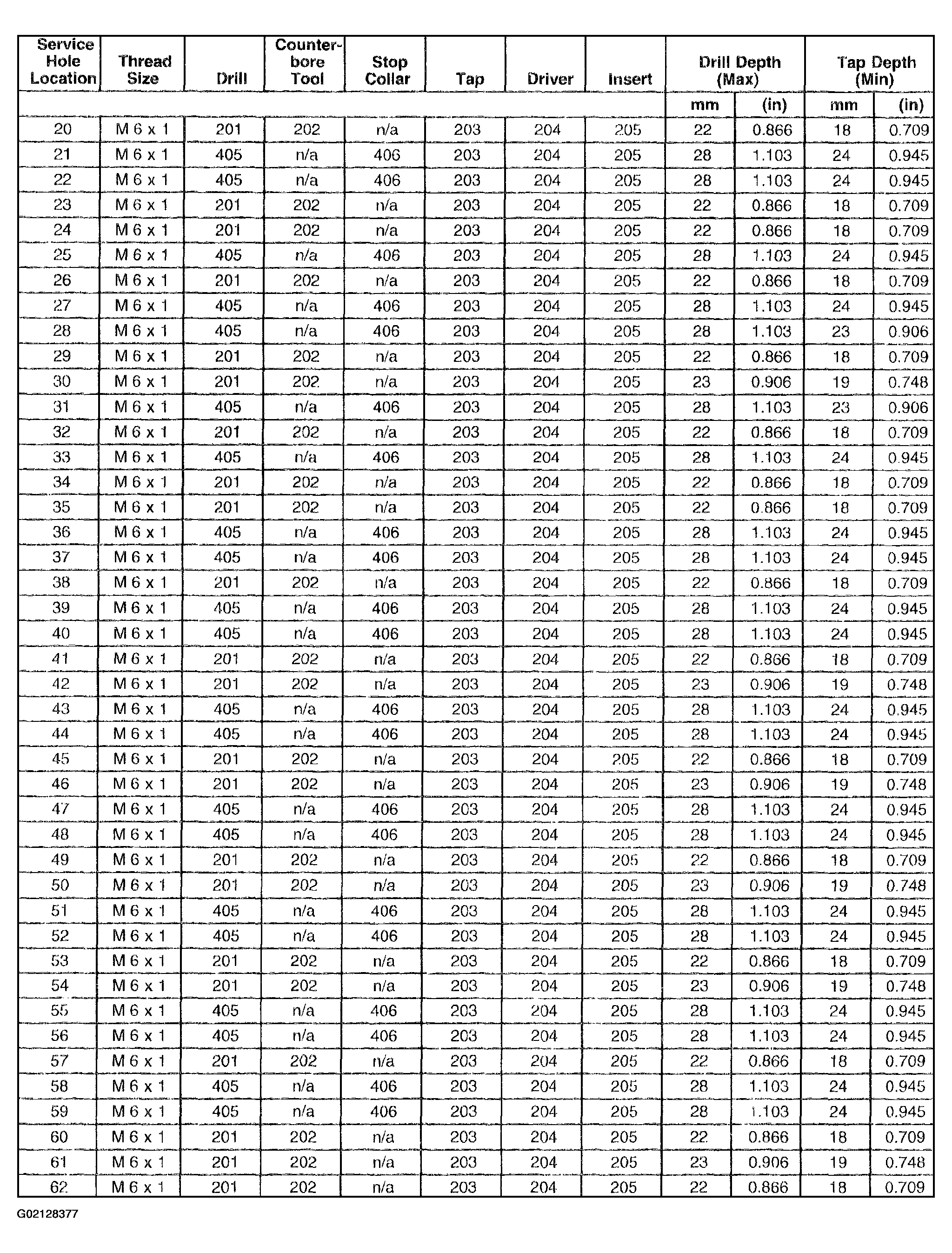

Fig 3: Thread Repair Specifications - Cylinder Head - Top View Callouts (2 Of 2)
G02128377Courtesy of GENERAL MOTORS CORP.
