Cylinder Head - Intake Manifold Deck View

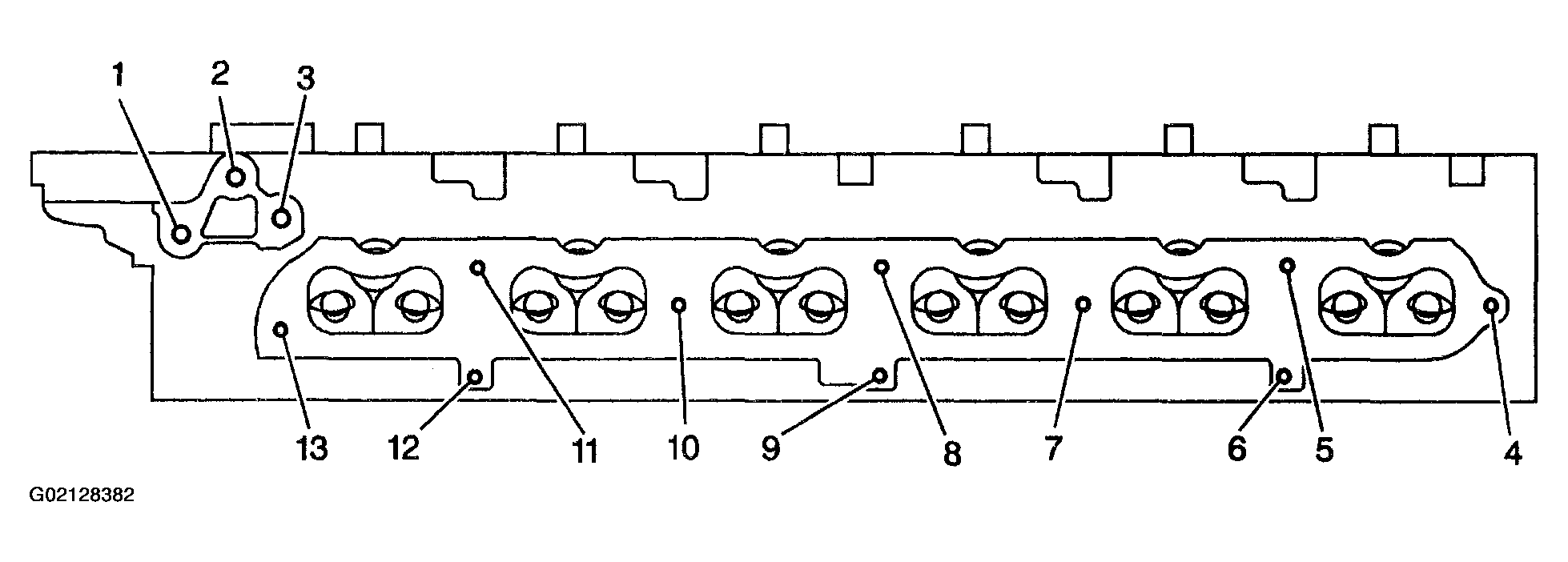

Fig 1: Thread Repair Specifications - Cylinder Head - Intake Manifold Deck View
G02128382Courtesy of GENERAL MOTORS CORP.
Fig 2: Thread Repair Specifications - Cylinder Head - Intake Manifold Deck View Callouts
G02128383Courtesy of GENERAL MOTORS CORP.
