Timing Chain and Components

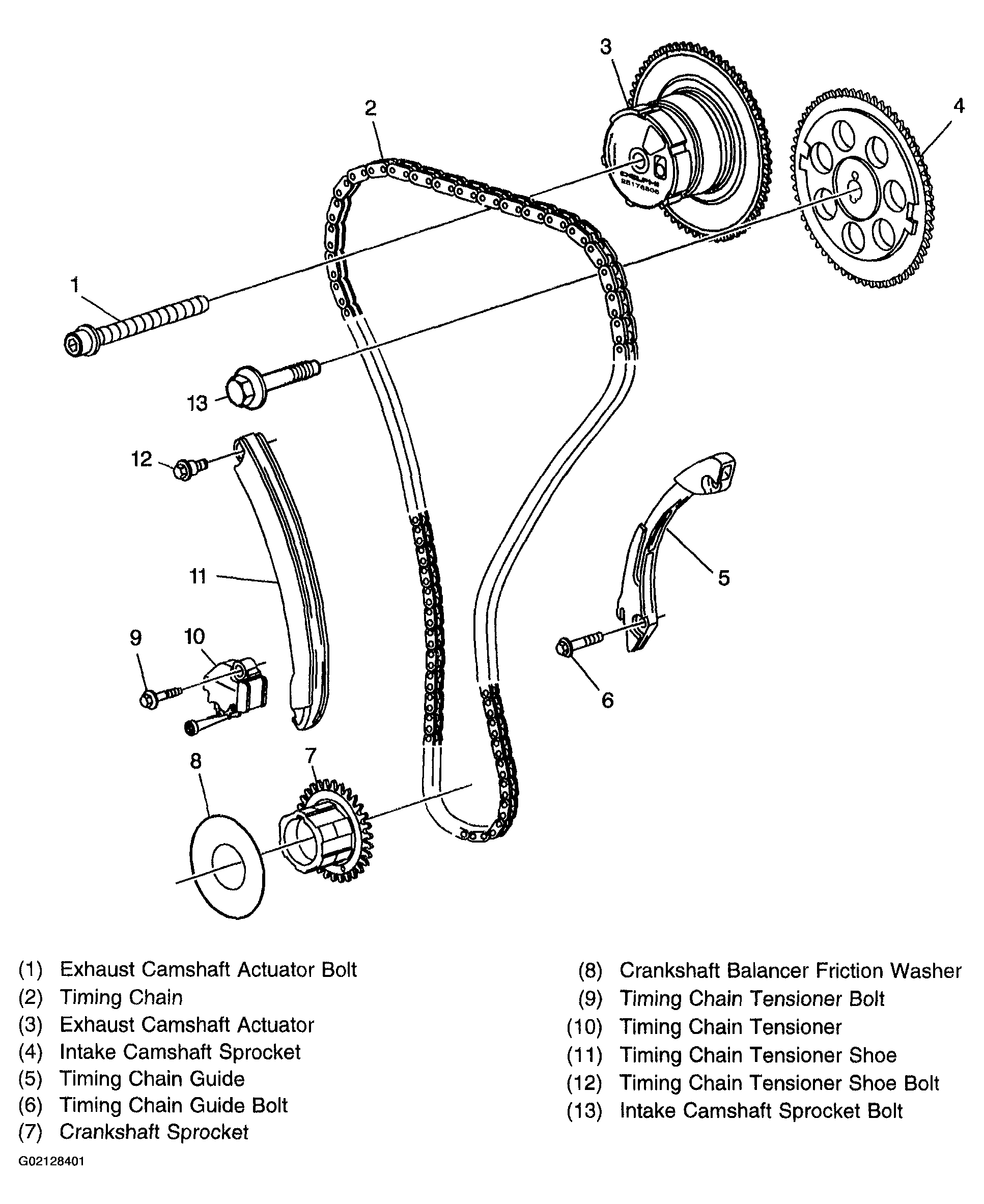

Fig 1: Exploded View of Timing Chain

G02128401

Courtesy of GENERAL MOTORS CORP.
