ABS Schematics

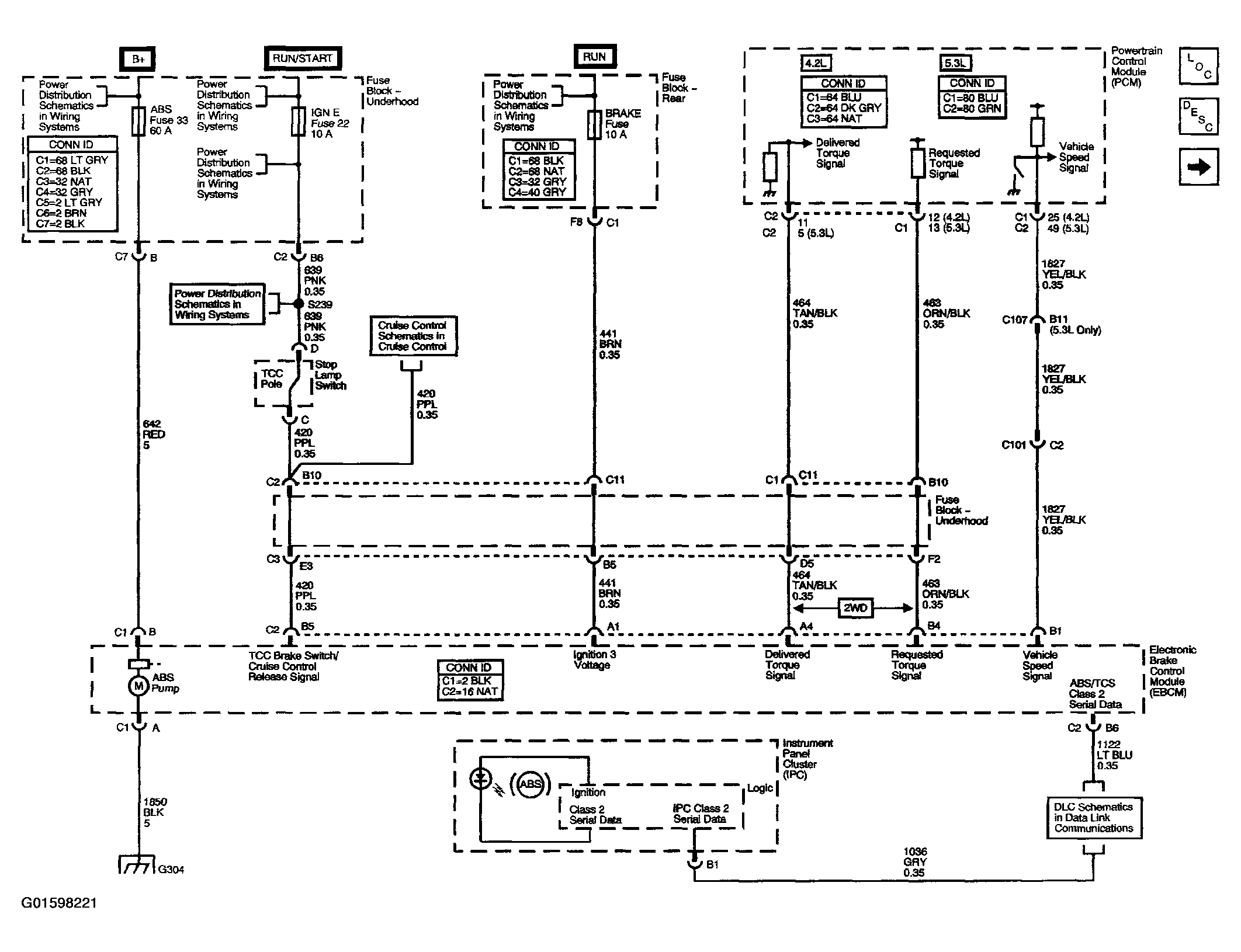

Fig 1: EBCM Power, Ground & Serial Data Schematic
G01598221Courtesy of GENERAL MOTORS CORP.

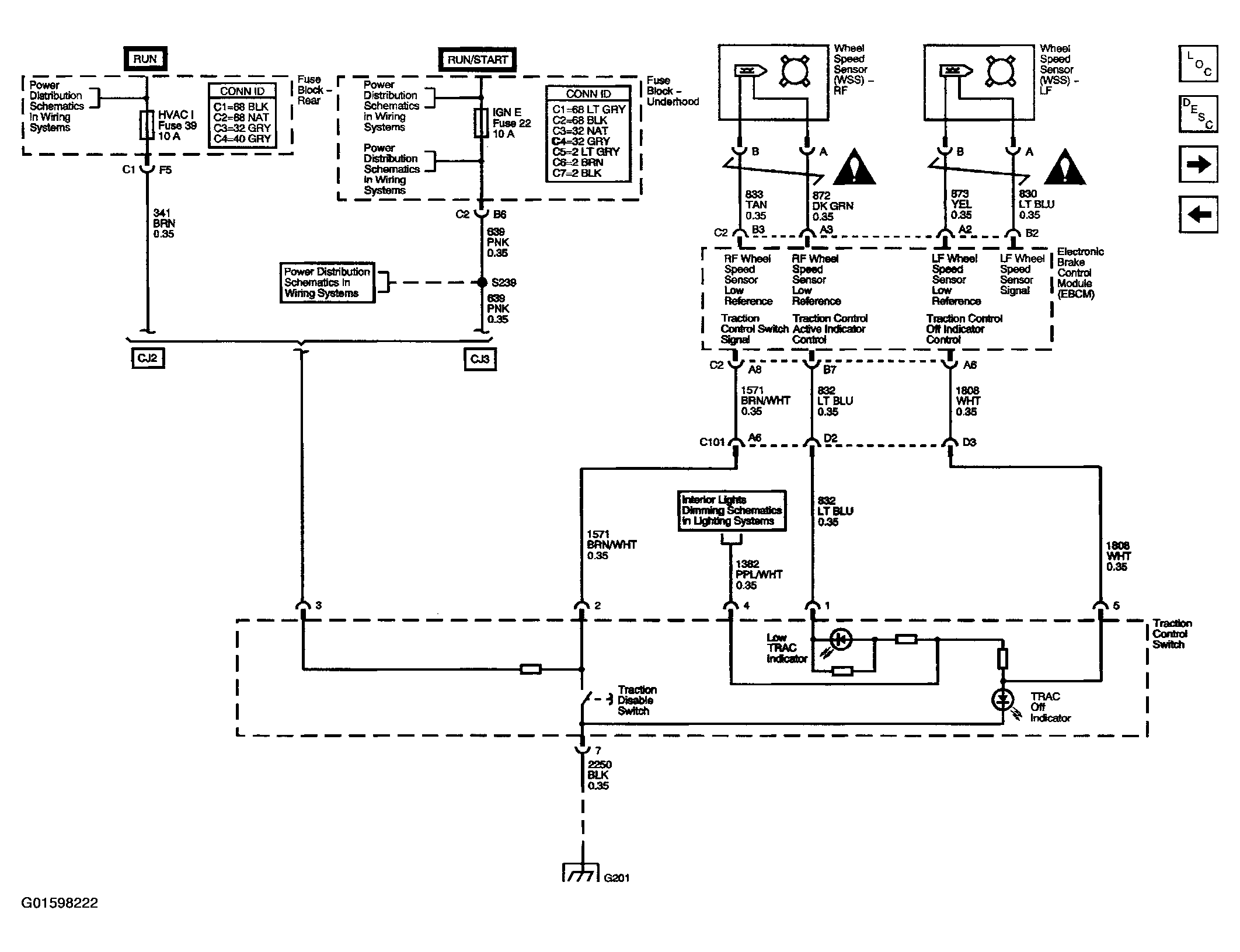

Fig 2: Wheel Speed Sensors & Traction Control Switch Schematic (Chevy/GMC)
G01598222Courtesy of GENERAL MOTORS CORP.

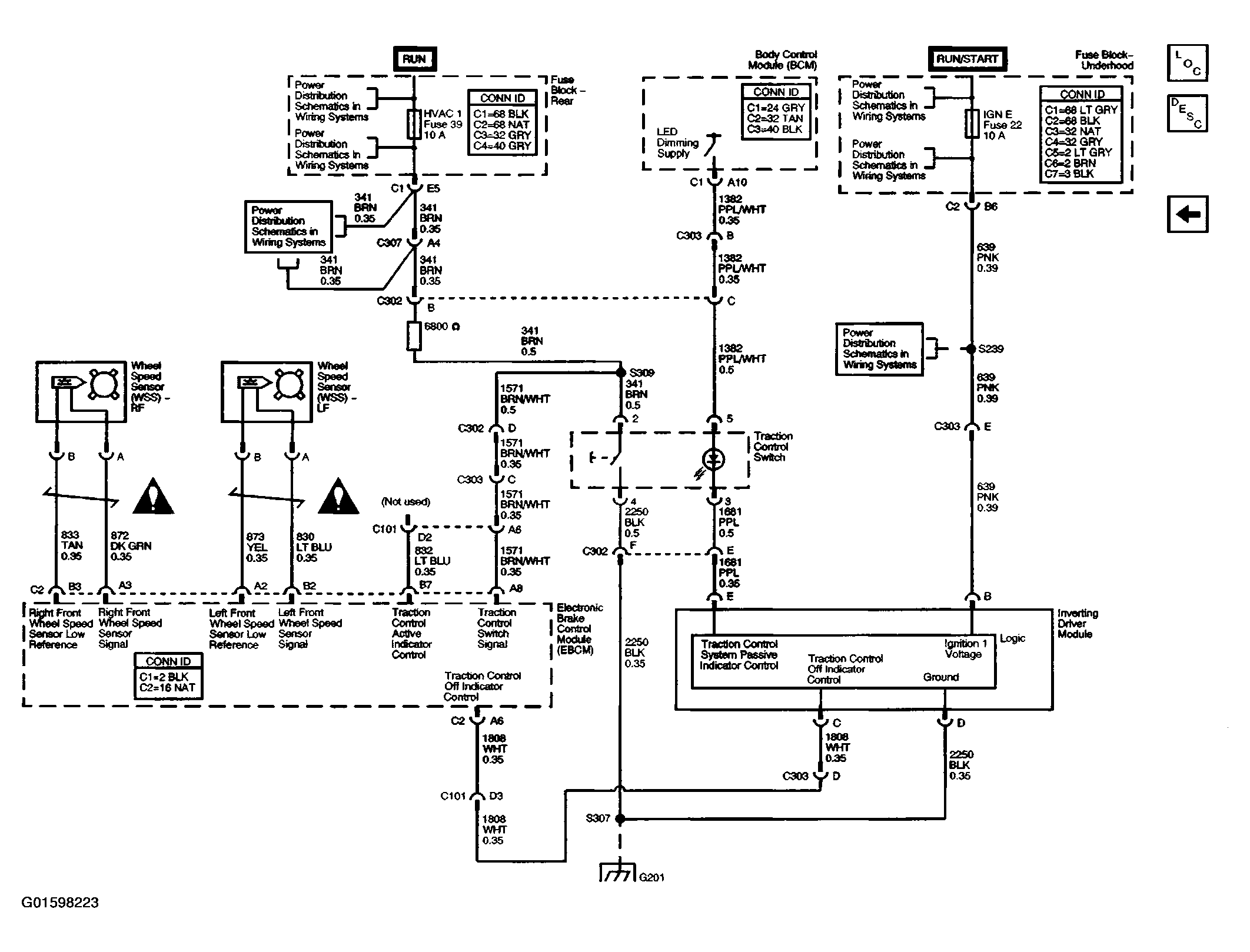

Fig 3: Traction Control Switch Schematic (Oldsmobile)
G01598223Courtesy of GENERAL MOTORS CORP.
