Transmission Fluid Temperature (TFT) Sensor Specifications

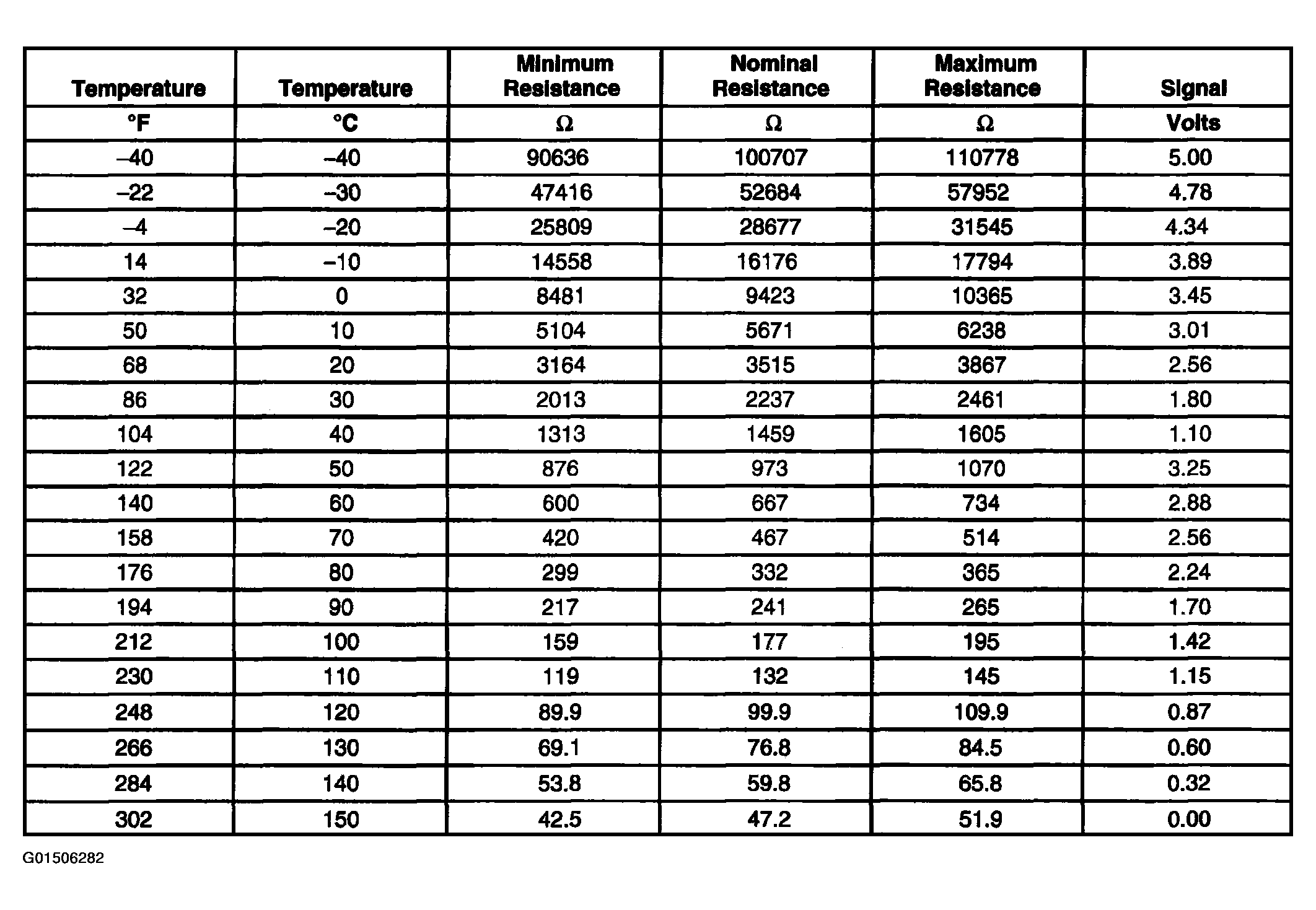

Fig 1: Transmission Fluid Temperature (TFT) Sensor Specifications Table

G01506282

Courtesy of GENERAL MOTORS CORP.
