Power Steering Gear Disassembled View (Magnasteer)

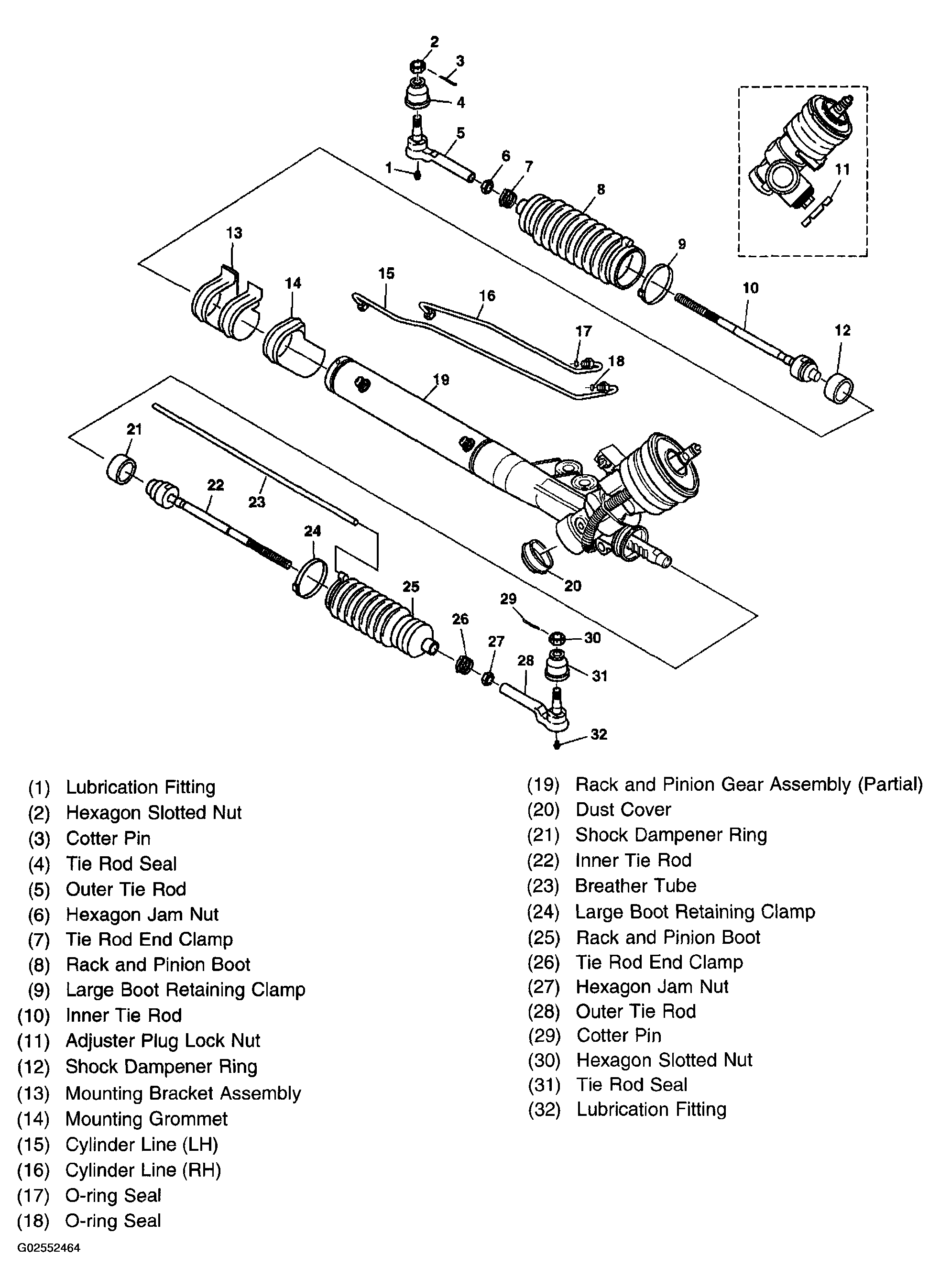

Fig 1: Disassembled View Of Magnasteer Power Steering Gear

G02552464

Courtesy of GENERAL MOTORS CORP.
