Windshield Wiper Motor Removal/Installation: Notes

WARNING: This page is about a different car, the 2004 Mazda MX-5 Miata. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative battery cable.
Pry off the connection between the windshield wiper motor and windshield wiper link.
Remove in the order indicated in the table.

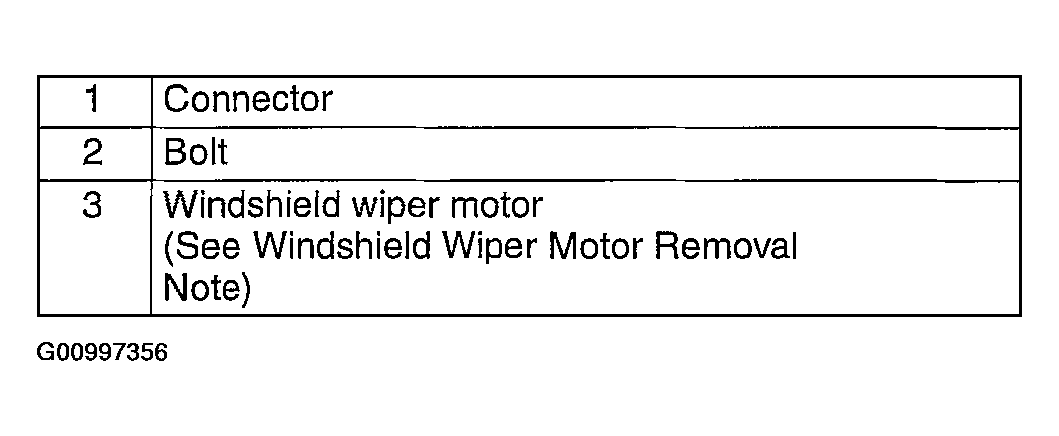

Fig 1: Windshield Wiper Motor Removing/Installing Sequence Order Table
Courtesy of MAZDA MOTORS CORP.

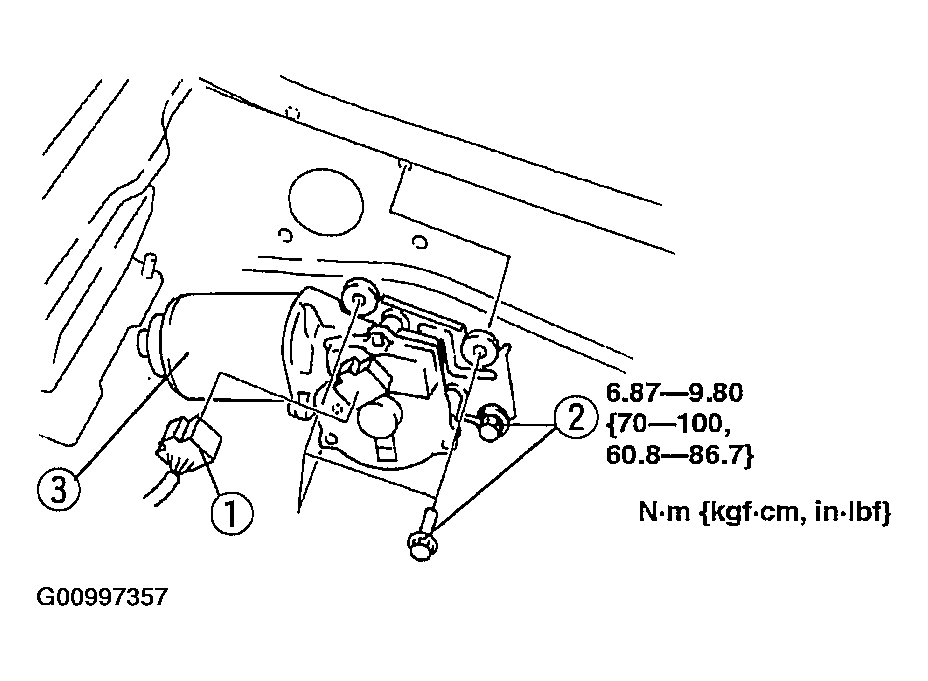

Fig 2: Removing/Installing Windshield Wiper Motor
Courtesy of MAZDA MOTORS CORP.
Install in the reverse order of removal.
