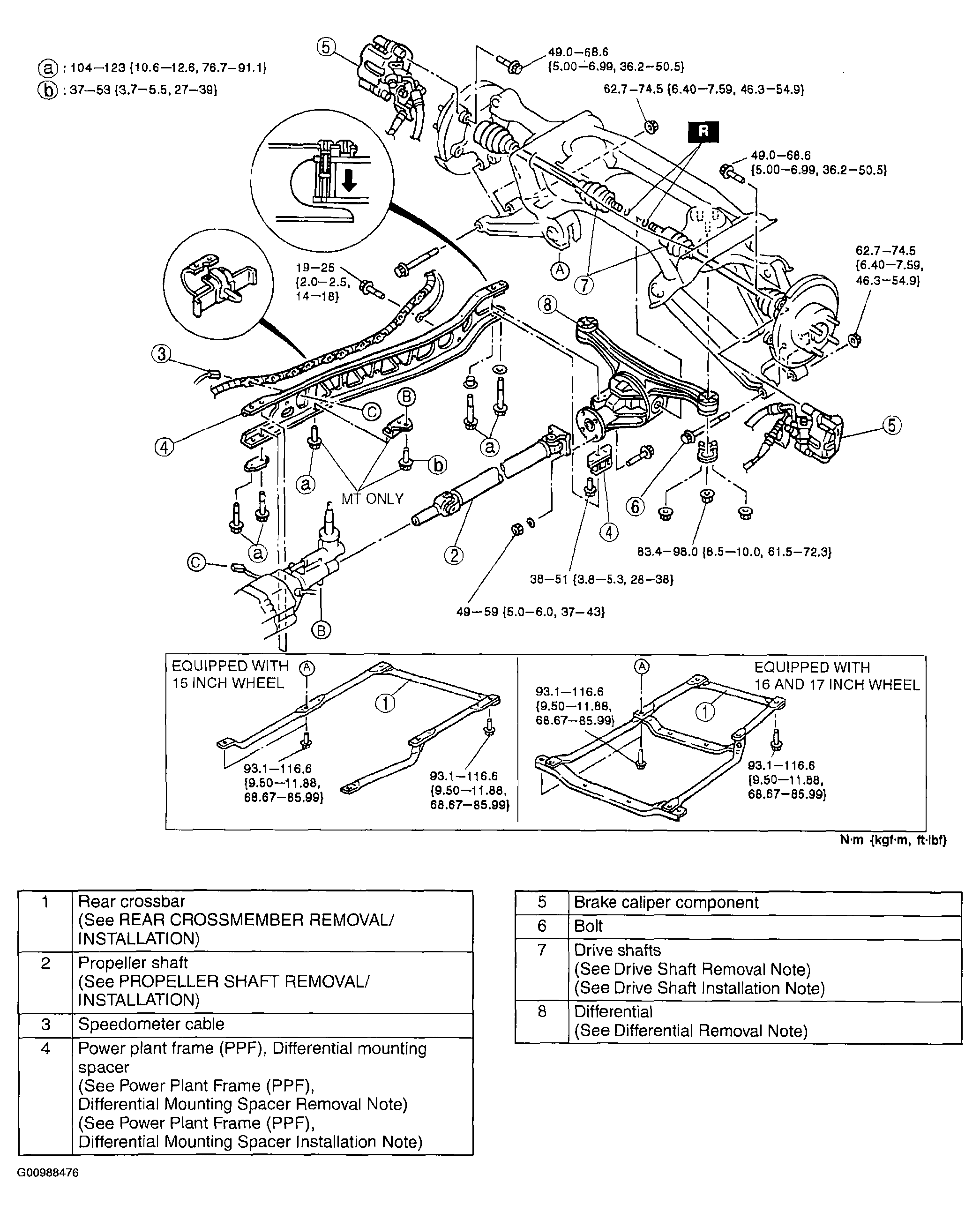

Differential Removal/Installation: Notes
WARNING: This page is about a different car, the 2004 Mazda MX-5 Miata. However, it is still accessible from the selected car via links, so may be relevant.
- Drain the differential oil.
- Remove the crossmember bracket. (See REAR CROSSMEMBER .)
- Remove the main silencer. (See EXHAUST SYSTEM REMOVAL/INSTALLATION [BP] .) (See EXHAUST SYSTEM REMOVAL/INSTALLATION [BP WITH TC] .)
- Remove in the order indicated in the table.
- Install in the reverse order of removal.
- Add the specified oil to the specified level. (See DIFFERENTIAL OIL REPLACEMENT .)
